Multiplex Communication System (Can) Wiring Diagrams

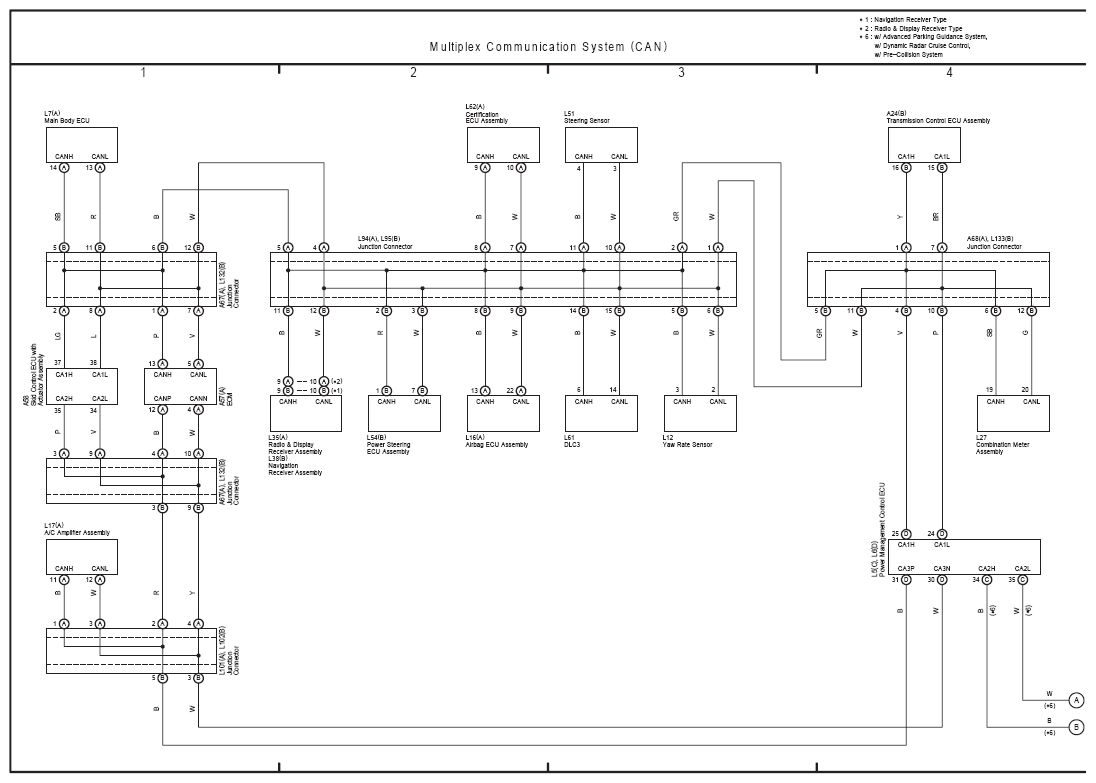

Fig 1: Multiplex Communication System (CAN) Electrical Wiring Diagram (1 Of 2)
G09110326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

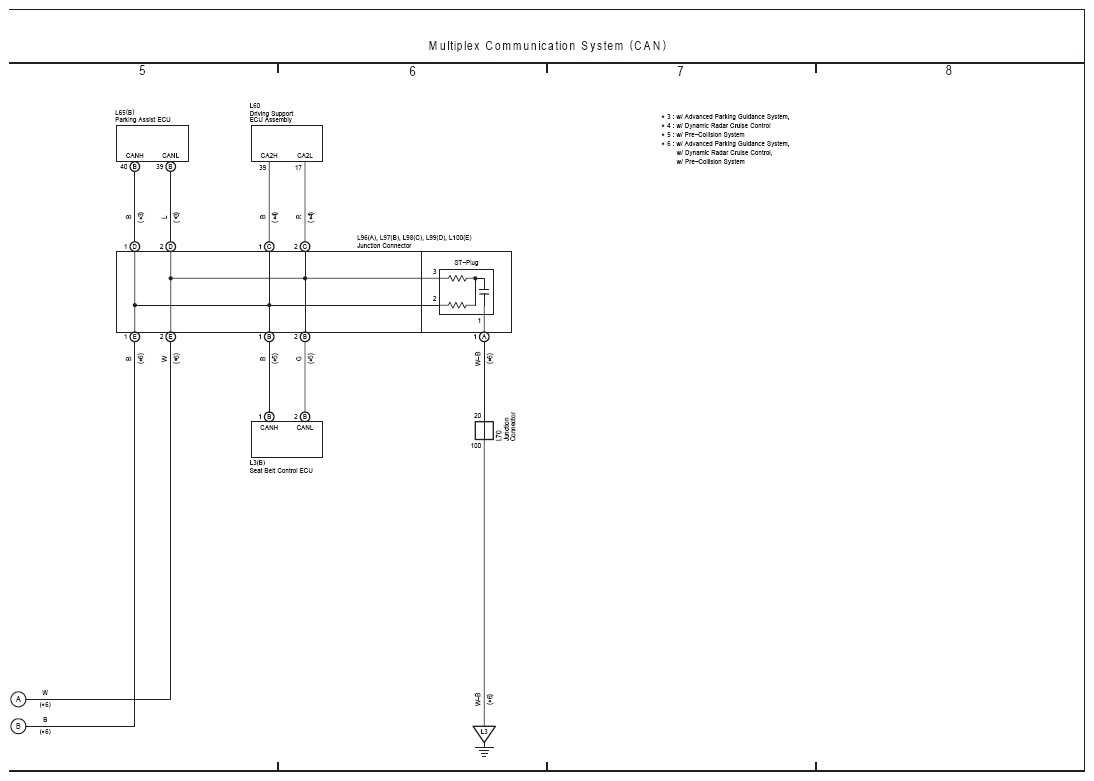

Fig 2: Multiplex Communication System (CAN) Electrical Wiring Diagram (2 Of 2)
G09110327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
