Overall Electrical Wiring Diagram
>>
Multiplex Communication System (AVC-LAN) Wiring Diagram
Multiplex Communication System (AVC-LAN) Wiring Diagram

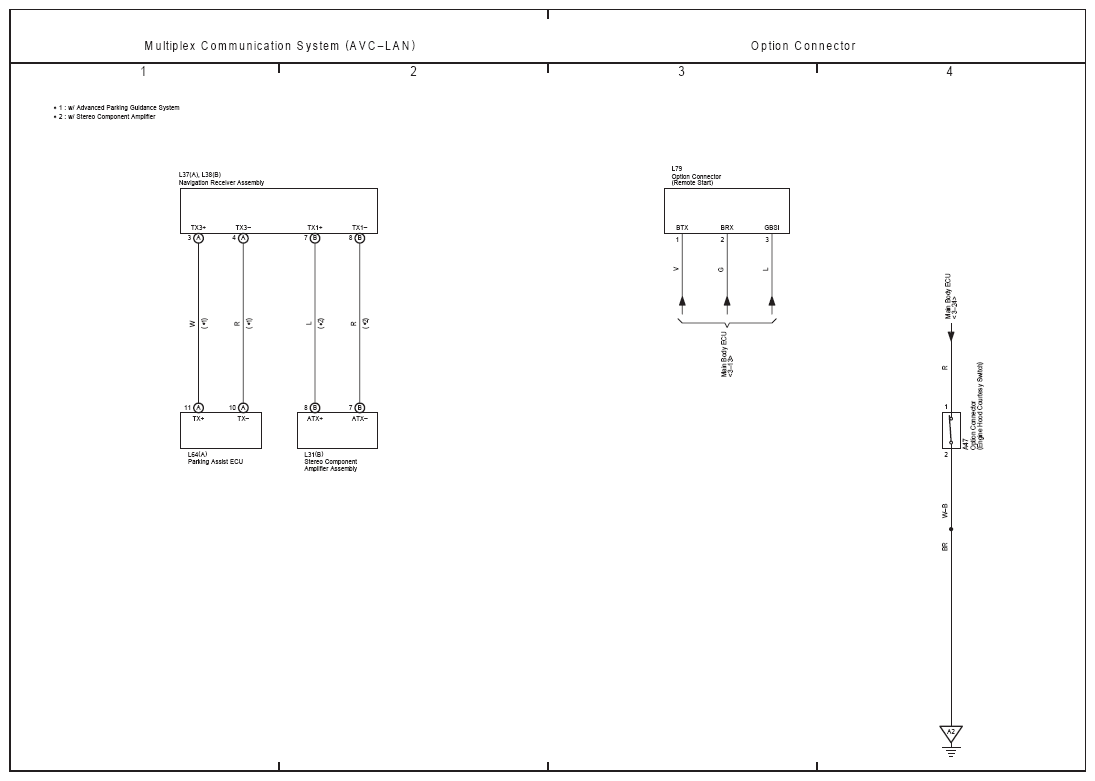

Fig 1: Multiplex Communication System (AVC-LAN) Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
