Illumination And Taillight Wiring Diagrams

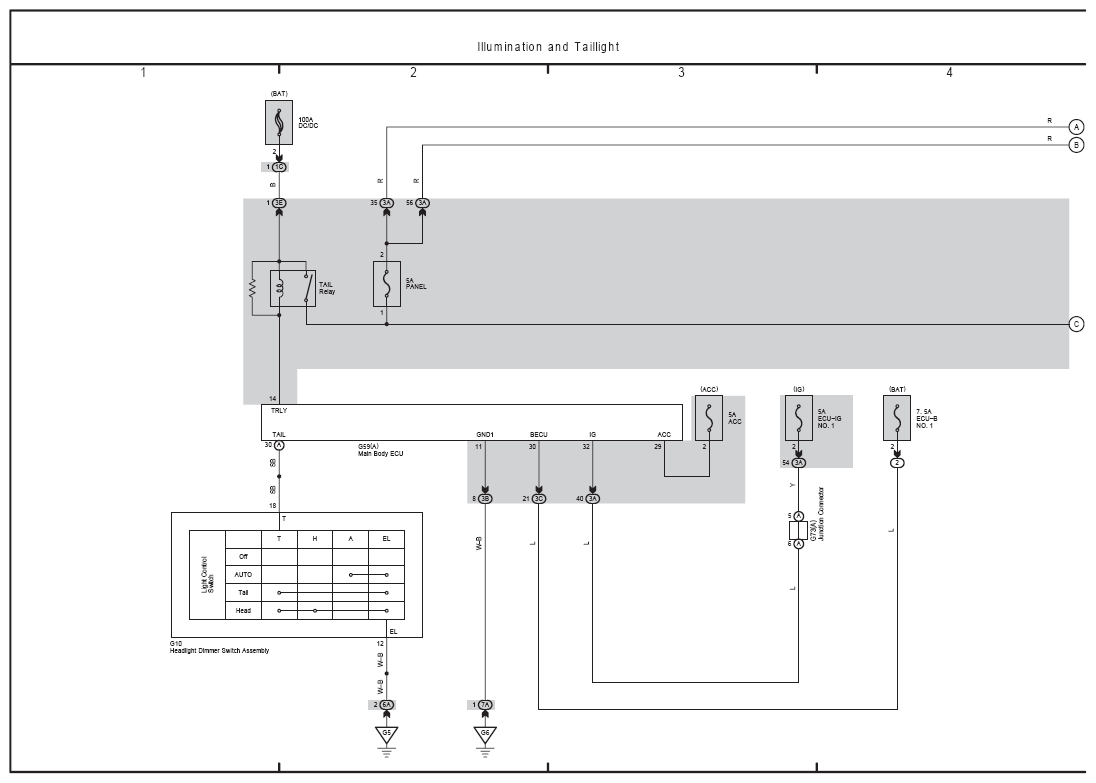

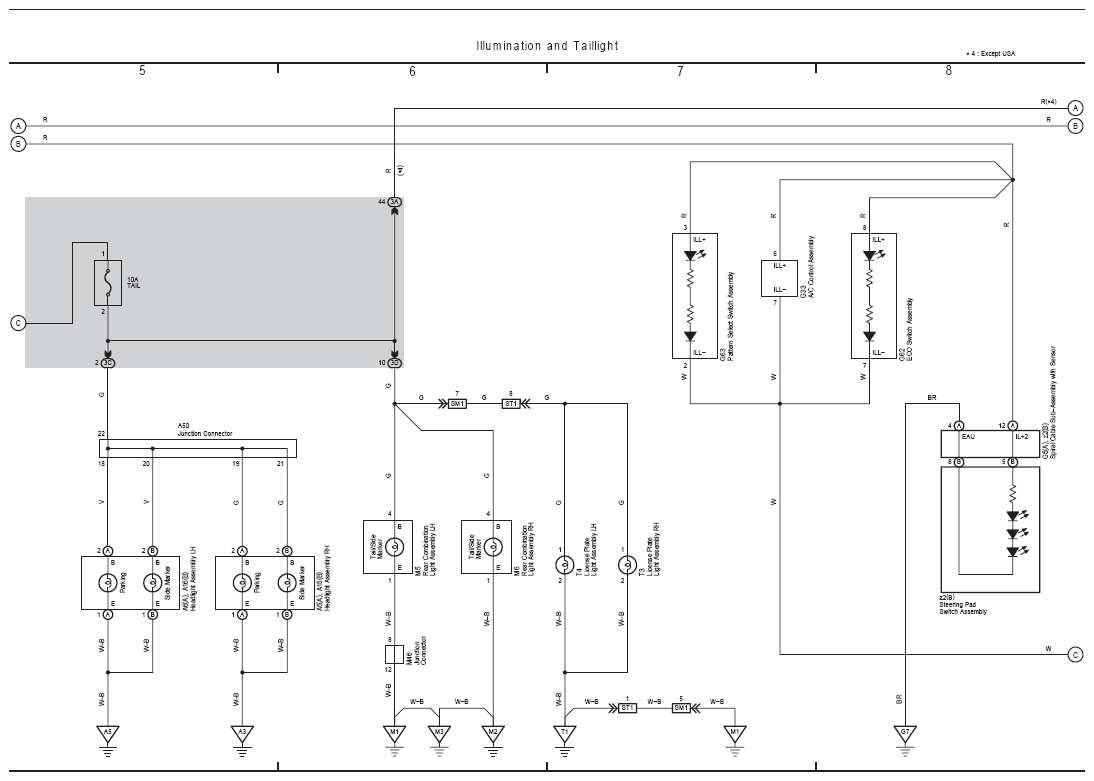

Fig 1: Illumination And Taillight Electrical Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

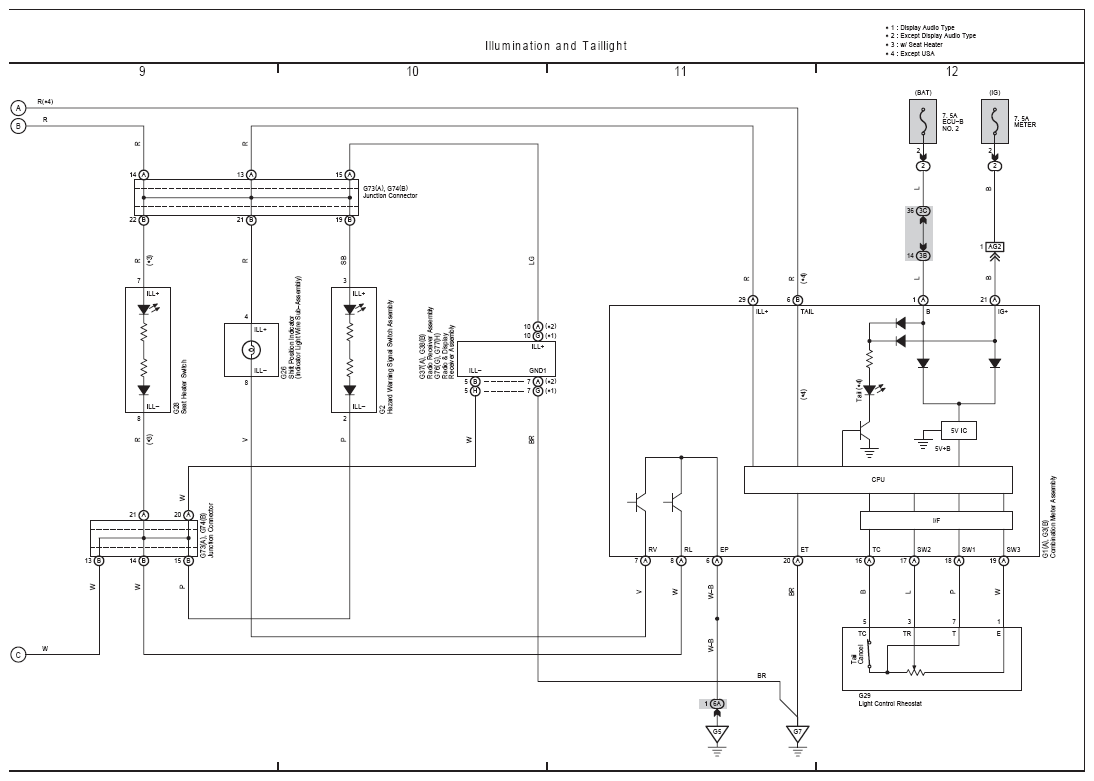

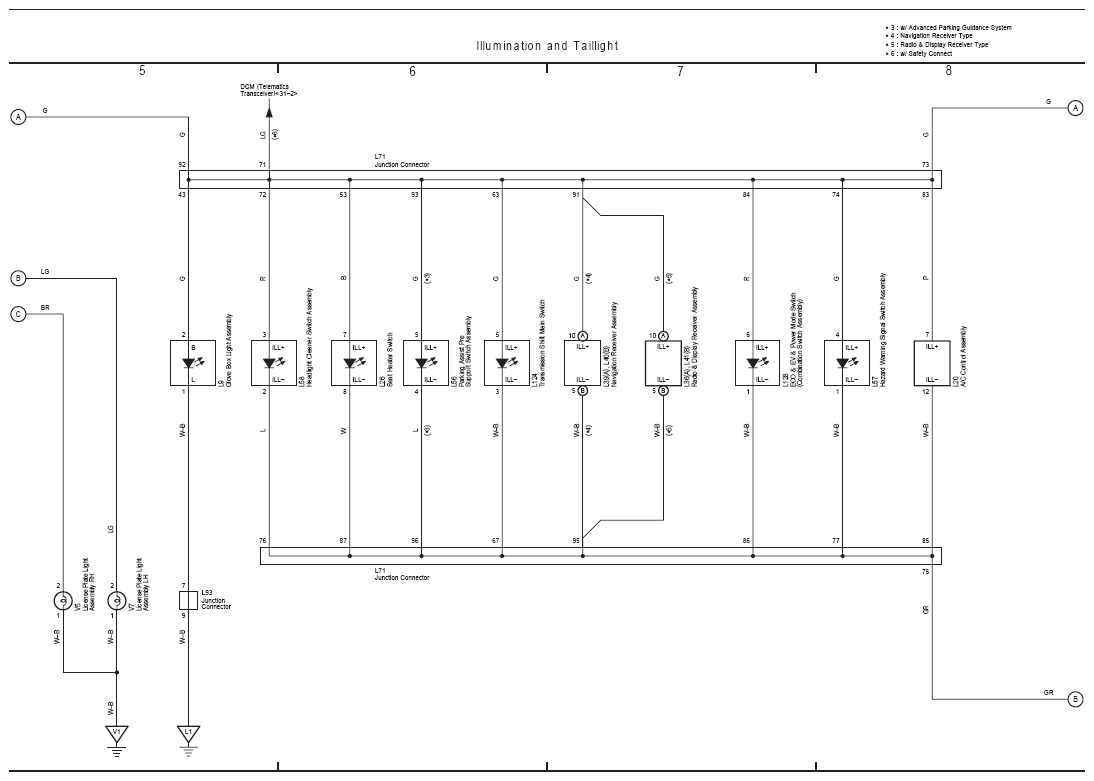

Fig 2: Illumination And Taillight Electrical Wiring Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

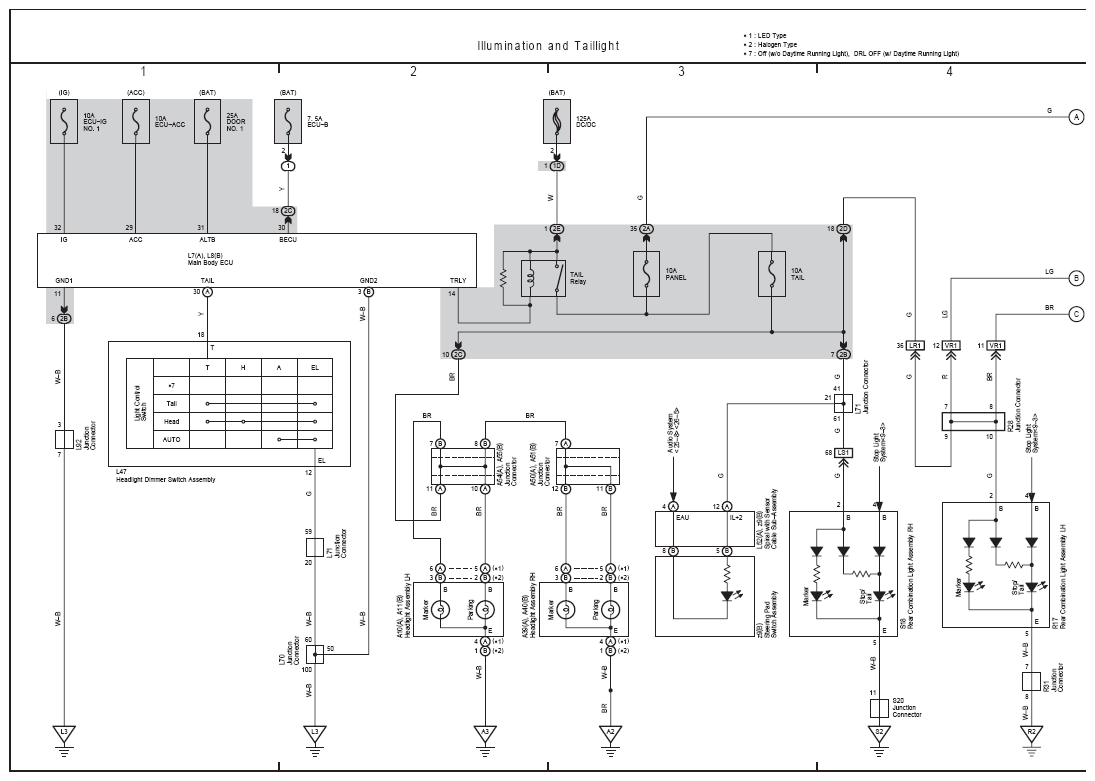

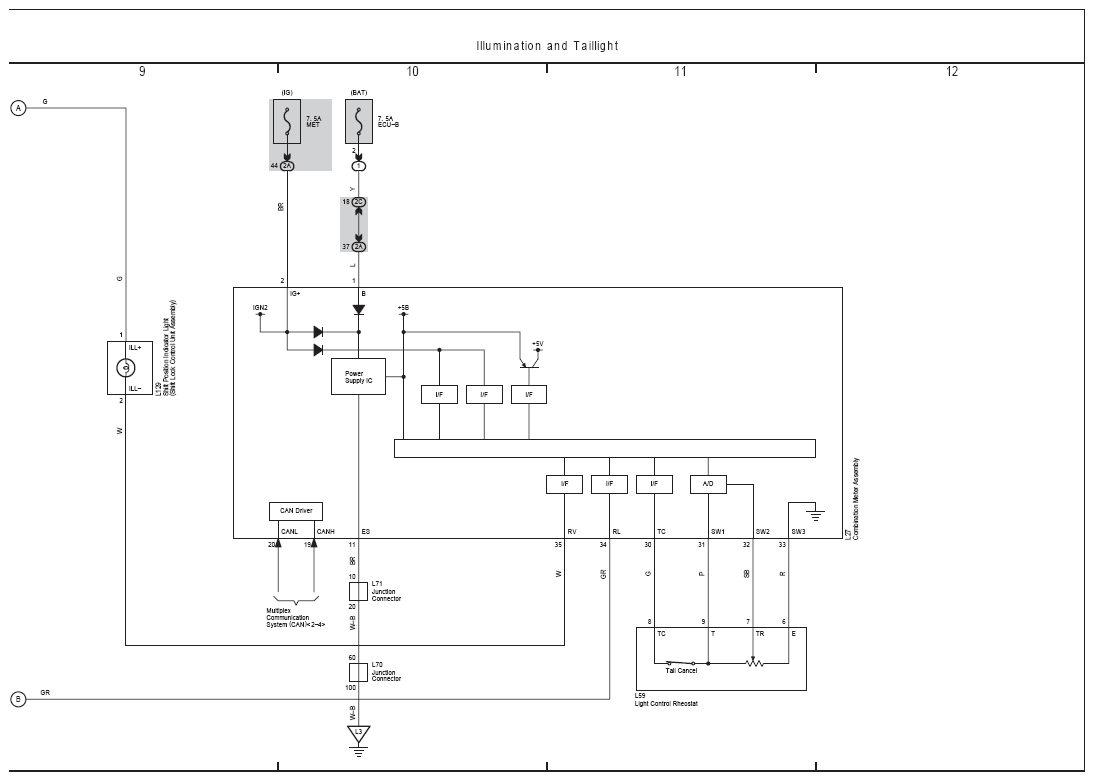

Fig 3: Illumination And Taillight Electrical Wiring Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
