Headlight Cleaner Wiring Diagram

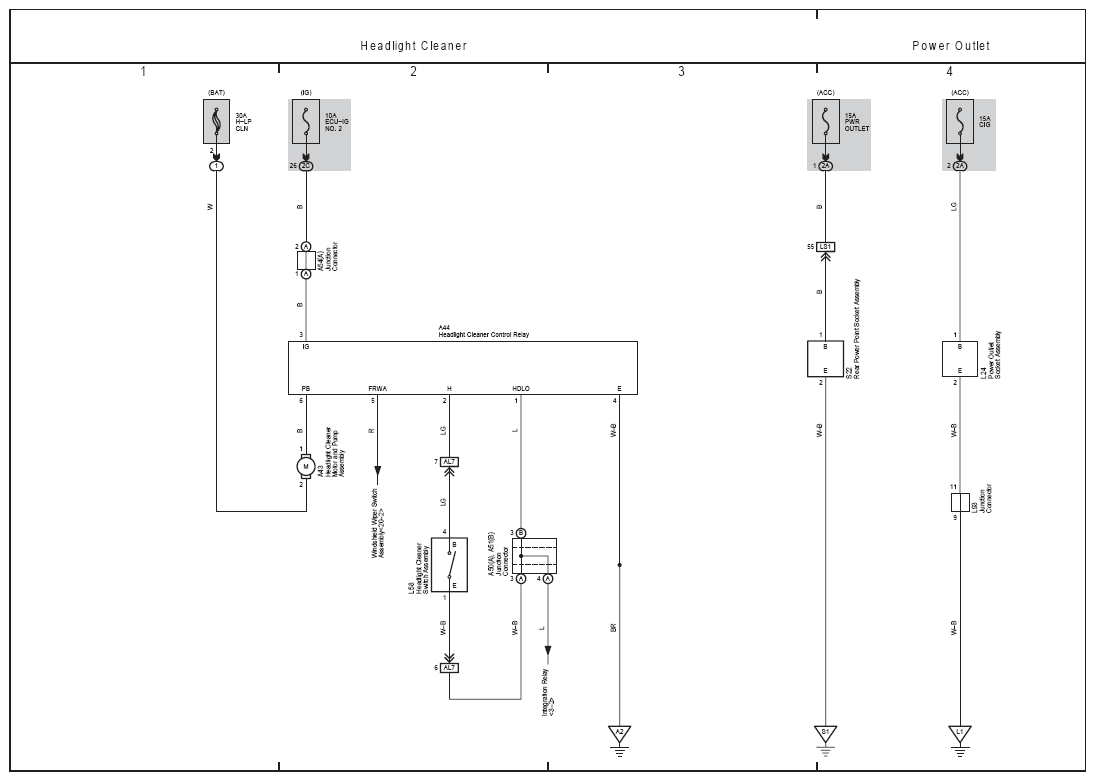

Fig 1: Headlight Cleaner Electrical Wiring Diagram

G09110367

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
