Headlight Beam Level Control Wiring Diagram

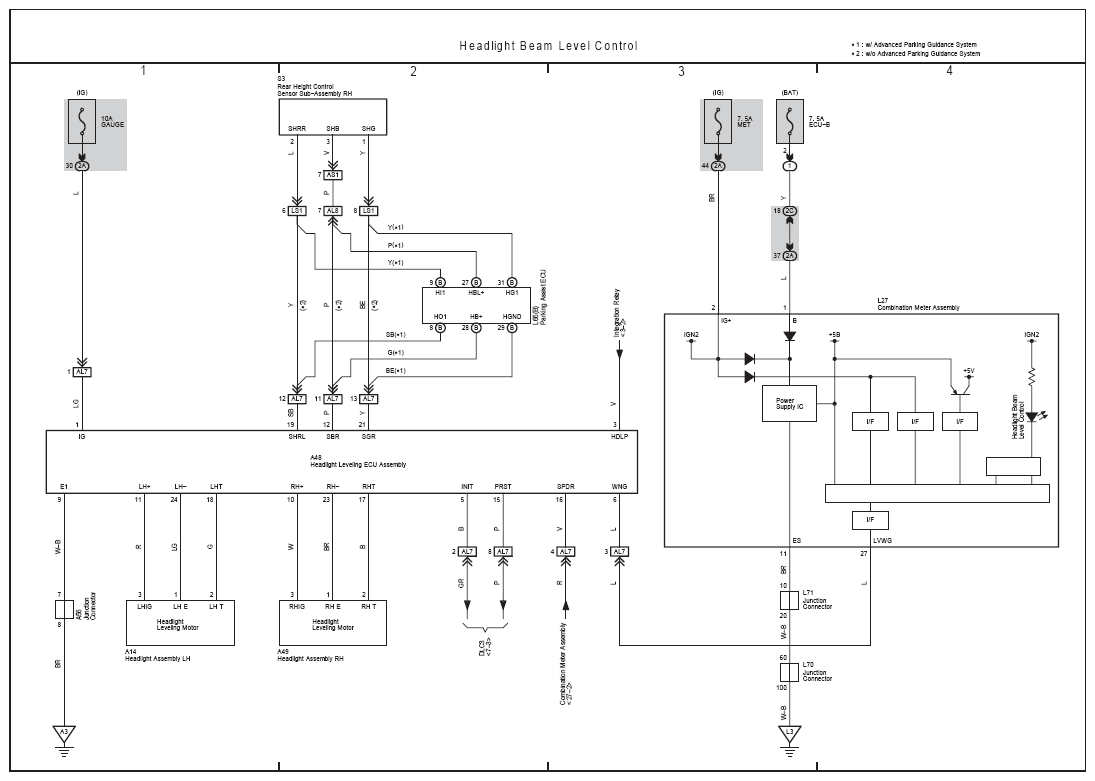

Fig 1: Headlight Beam Level Control Electrical Wiring Diagram

G09110366

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
