Advanced Parking Guidance System Wiring Diagram

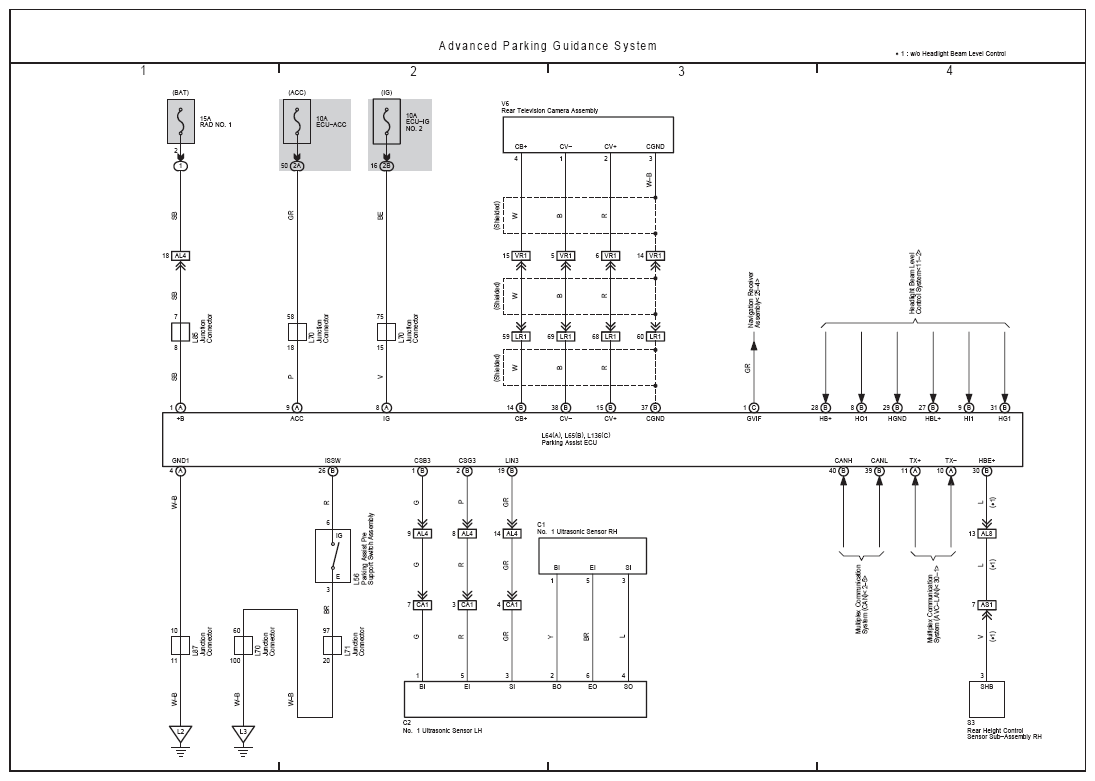

Fig 1: Advanced Parking Guidance System Electrical Wiring Diagram

G09110383

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
