Abs, Hill-Start Assist Control, TRAC And VSC Wiring Diagrams

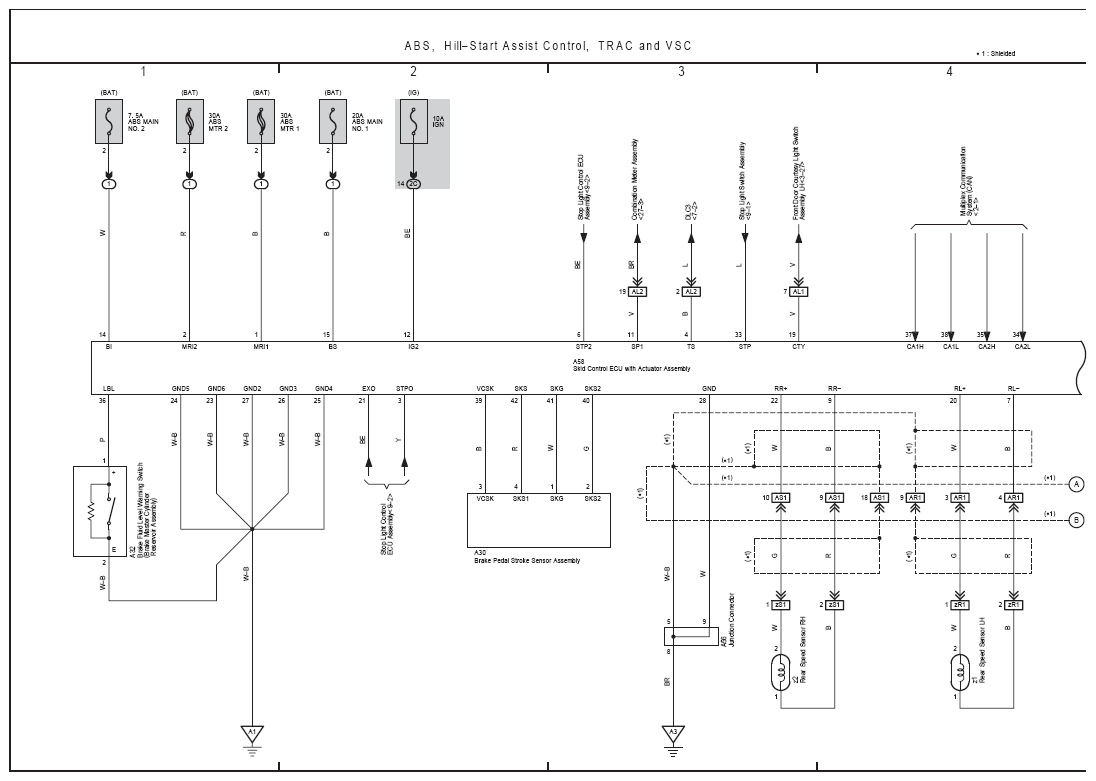

Fig 1: ABS, Hill-Start Assist Control, TRAC And VSC Electrical Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

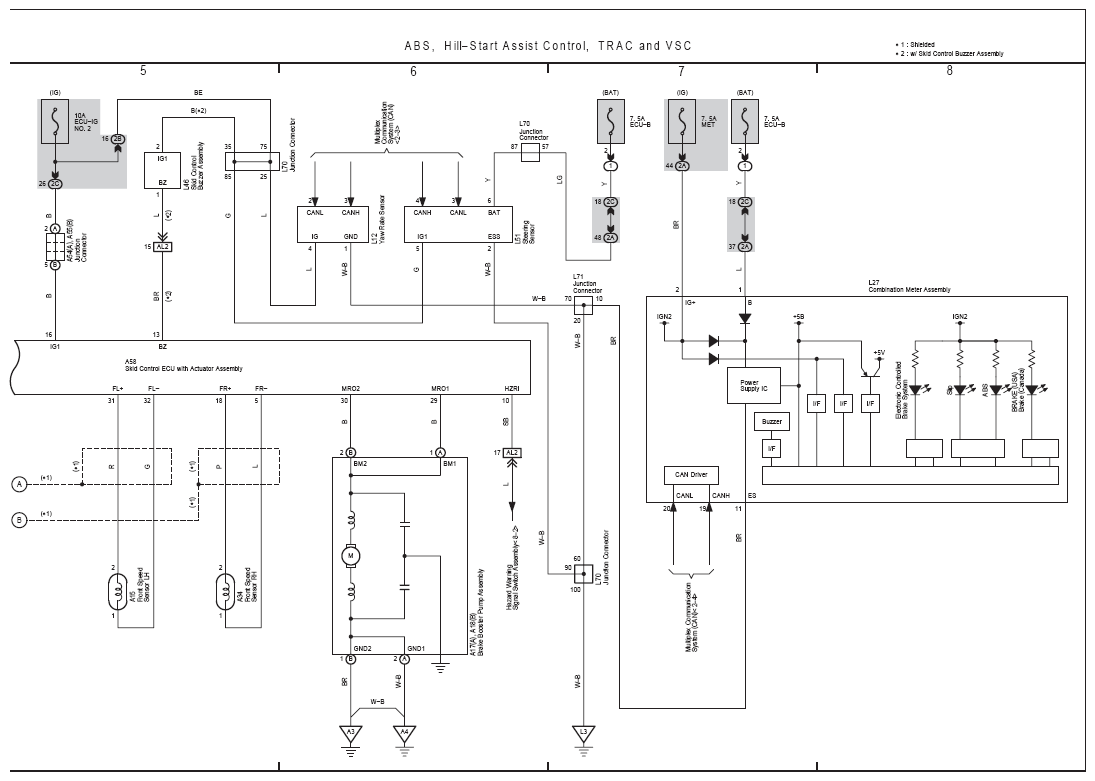

Fig 2: ABS, Hill-Start Assist Control, TRAC And VSC Electrical Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
