Relay Block, Junction Block & Ecu Locations: Body

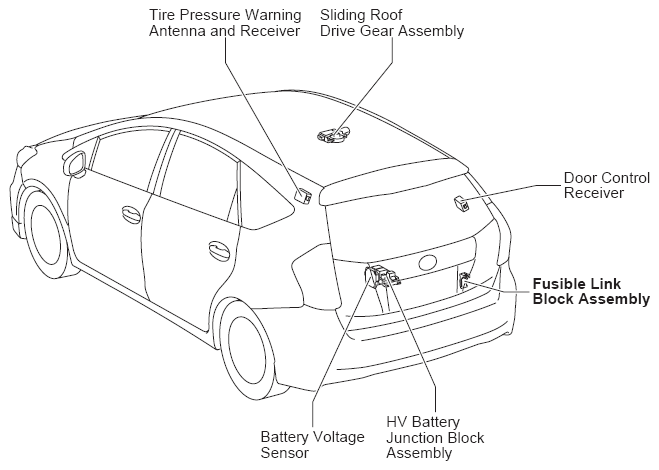

Fig 1: Body ECU Components Location

G09109633

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
