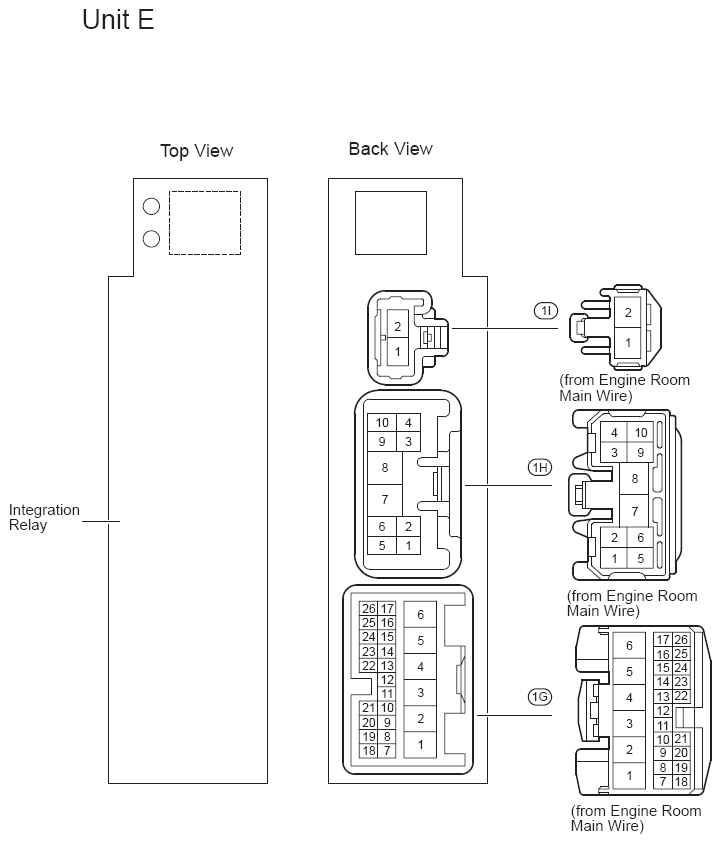

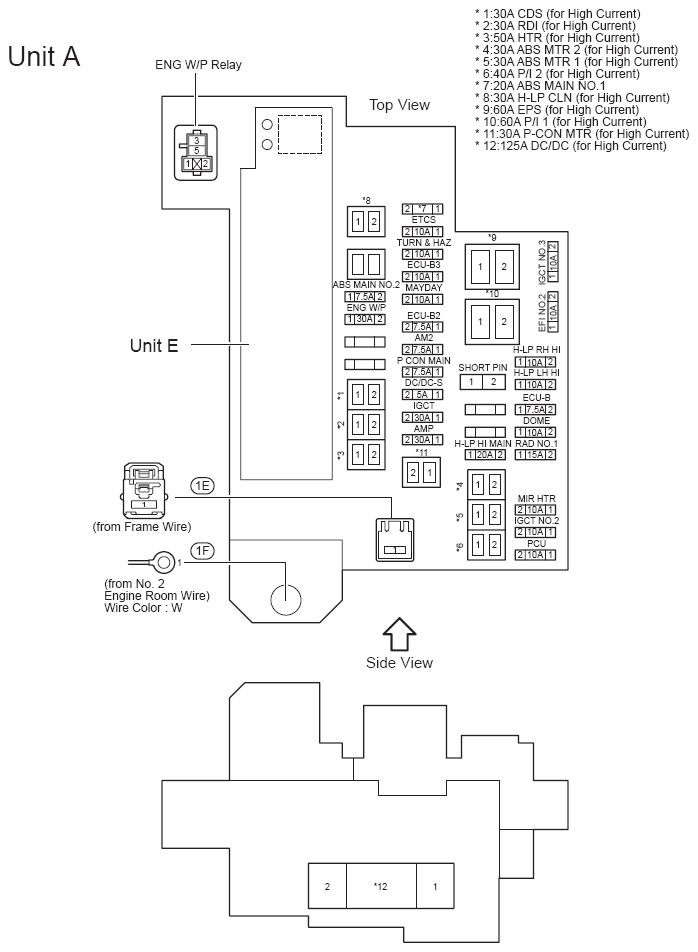

Engine Room Relay Block And Engine Room Junction Block: Left Engine Compartment (Unit A, E)
Engine Room J/B And R/B Relay Identification
| RELAY DESCRIPTION |
|---|
| ENG W/P Relay |
Engine Room J/B And R/B Fuse Identification Legend
| Fuse | System | |
|---|---|---|
| 5A | DC/DC-S | Hybrid System and Shift Control System |
| 7.5A | ABS MAIN NO. 2 | ABS, Hill-Start Assist Control, TRAC and VSC |
| Cruise Control, Dynamic Radar Cruise Control and Engine Control | ||
| Hybrid System and Shift Control System | ||
| 7.5A | AM2 | Back Door Opener, Hybrid Vehicle Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control |
| Cruise Control, Dynamic Radar Cruise Control and Engine Control | ||
| Hybrid System and Shift Control System | ||
| 7.5A | ECU-B | ABS, Hill-Start Assist Control, TRAC and VSC |
| Advanced Parking Guidance System | ||
| Air Conditioning | ||
| Audio System (Navigation Receiver Type), Navigation System (Navigation Receiver Type) and Parking Assist (Rear View Monitor) (Navigation Receiver Type) | ||
| Audio System (Radio & Display Receiver Type), Navigation System (Radio & Display Receiver Type) and Parking Assist (Rear View Monitor) (Radio & Display Receiver Type) | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Back Door Opener, Hybrid Vehicle Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control | ||
| Combination Meter | ||
| Cruise Control, Dynamic Radar Cruise Control and Engine Control | ||
| Door Lock Control | ||
| EPS | ||
| Fog Light | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Headlight Cleaner | ||
| Hybrid System and Shift Control System | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Power Window | ||
| Pre-Collision System | ||
| Roof Sunshade System | ||
| Safety Connect | ||
| Seat Belt Warning | ||
| SRS | ||
| Tire Pressure Warning System | ||
| Turn Signal and Hazard Warning Light | ||
| Vehicle Proximity Notification System | ||
| 7.5A | ECU-B2 | Back Door Opener, Hybrid Vehicle Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control |
| 7.5A | P CON MAIN | Back Door Opener, Hybrid Vehicle Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control |
| Cruise Control, Dynamic Radar Cruise Control and Engine Control | ||
| Hybrid System and Shift Control System | ||
| Vehicle Proximity Notification System | ||
| 10A | BATT FAN | Hybrid System and Shift Control System |
| 10A | DOME | Automatic Glare-Resistant EC Mirror and Garage Door Opener |
| Interior Light | ||
| 10A | ECU-B3 | Air Conditioning |
| Mirror Heater and Rear Window Defogger | ||
| 10A | EFI NO. 2 | Cooling Fan |
| Cruise Control, Dynamic Radar Cruise Control and Engine Control | ||
| 10A | ETCS | Cruise Control, Dynamic Radar Cruise Control and Engine Control |
| 10A | H-LP LH HI | Headlight |
| 10A | H-LP RH HI | Headlight |
| 10A | IGCT NO. 2 | Back Door Opener, Hybrid Vehicle Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control |
| Cruise Control, Dynamic Radar Cruise Control and Engine Control | ||
| Hybrid System and Shift Control System | ||
| Vehicle Proximity Notification System | ||
| 10A | IGCT NO. 3 | Hybrid System and Shift Control System |
| 10A | MAYDAY | Audio System (Navigation Receiver Type), Navigation System (Navigation Receiver Type) and Parking Assist (Rear View Monitor) (Navigation Receiver Type) |
| Safety Connect | ||
| 10A | MIR HTR | Mirror Heater and Rear Window Defogger |
| 10A | PCU | Hybrid System and Shift Control System |
| 10A | TURN & HAZ | Combination Meter |
| Turn Signal and Hazard Warning Light | ||
| 15A | RAD NO. 1 | Advanced Parking Guidance System |
| Audio System (Navigation Receiver Type), Navigation System (Navigation Receiver Type) and Parking Assist (Rear View Monitor) (Navigation Receiver Type) | ||
| Audio System (Radio & Display Receiver Type), Navigation System (Radio & Display Receiver Type) and Parking Assist (Rear View Monitor) (Radio & Display Receiver Type) | ||
| 20A | ABS MAIN NO. 1 | ABS, Hill-Start Assist Control, TRAC and VSC |
| Cruise Control, Dynamic Radar Cruise Control and Engine Control | ||
| Hybrid System and Shift Control System | ||
| 20A | EFI MAIN | Air Conditioning |
| Cooling Fan | ||
| Cruise Control, Dynamic Radar Cruise Control and Engine Control | ||
| 20A | H-LP HI MAIN | Headlight |
| 20A | IG2 | Combination Meter |
| Cruise Control, Dynamic Radar Cruise Control and Engine Control | ||
| Ignition | ||
| 30A | ABS MTR 1 | ABS, Hill-Start Assist Control, TRAC and VSC |
| Cruise Control, Dynamic Radar Cruise Control and Engine Control | ||
| Hybrid System and Shift Control System | ||
| 30A | ABS MTR 2 | ABS, Hill-Start Assist Control, TRAC and VSC |
| Cruise Control, Dynamic Radar Cruise Control and Engine Control | ||
| Hybrid System and Shift Control System | ||
| 30A | AMP | Audio System (Navigation Receiver Type), Navigation System (Navigation Receiver Type) and Parking Assist (Rear View Monitor) (Navigation Receiver Type) |
| 30A | CDS | Cooling Fan |
| 30A | ENG W/P | Air Conditioning |
| Cruise Control, Dynamic Radar Cruise Control and Engine Control | ||
| 30A | H-LP CLN | Headlight Cleaner |
| 30A | IGCT | Back Door Opener, Hybrid Vehicle Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control |
| Cruise Control, Dynamic Radar Cruise Control and Engine Control | ||
| Hybrid System and Shift Control System | ||
| Vehicle Proximity Notification System | ||
| 30A | P-CON MTR | Back Door Opener, Hybrid Vehicle Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control |
| Cruise Control, Dynamic Radar Cruise Control and Engine Control | ||
| Hybrid System and Shift Control System | ||
| 30A | RDI | Cooling Fan |
| 40A | P/I 2 | Advanced Parking Guidance System |
| Air Conditioning | ||
| Audio System (Navigation Receiver Type), Navigation System (Navigation Receiver Type) and Parking Assist (Rear View Monitor) (Navigation Receiver Type) | ||
| Audio System (Radio & Display Receiver Type), Navigation System (Radio & Display Receiver Type) and Parking Assist (Rear View Monitor) (Radio & Display Receiver Type) | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Back-Up Light | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Headlight Cleaner | ||
| Horn | ||
| Mirror Heater and Rear Window Defogger | ||
| 50A | HTR | Air Conditioning |
| 60A | EPS | EPS |
| 125A | DC/DC | Automatic Light Control and Light Auto Turn Off System |
| Fog Light | ||
| Hybrid System and Shift Control System | ||
| Illumination and Taillight | ||
