Instrument Panel Junction Block Assembly Inner Circuit

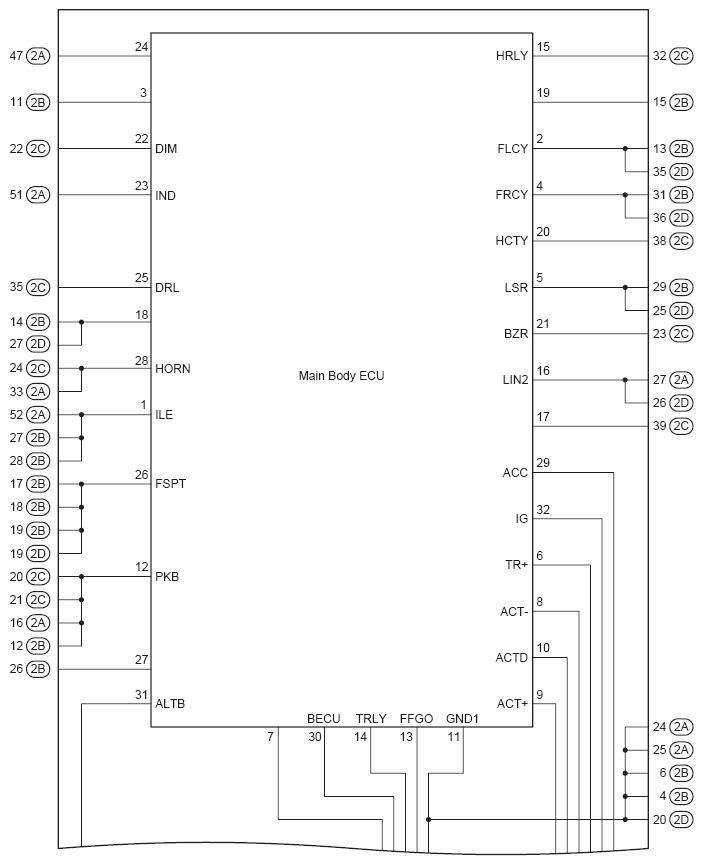

Fig 1: Instrument Panel J/B Assembly Relay Inner Circuit Diagram (1 Of 5)
G09109649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

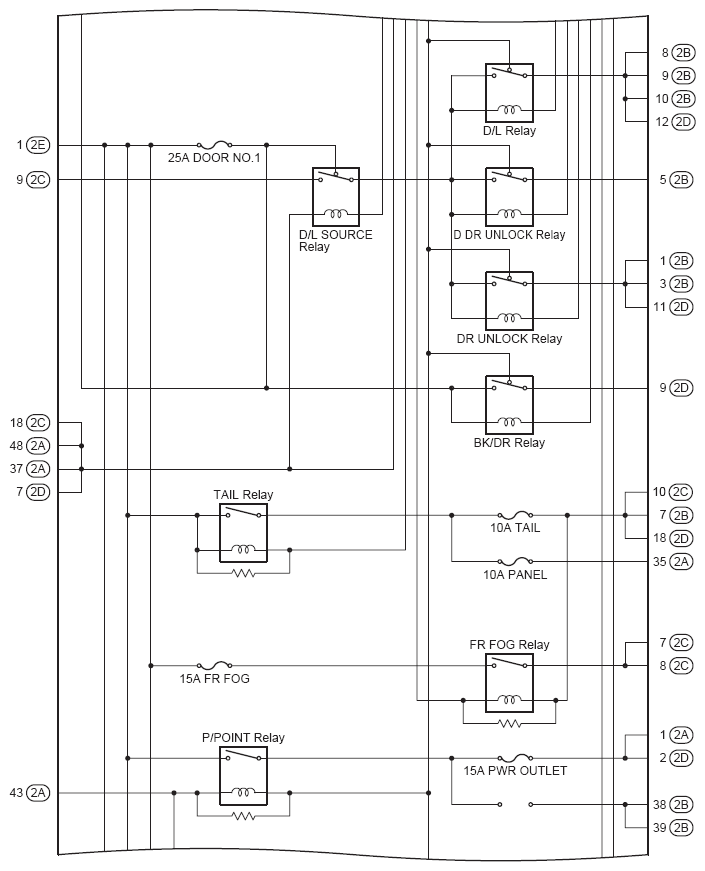

Fig 2: Instrument Panel J/B Assembly Relay Inner Circuit Diagram (2 Of 5)
G09109650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Instrument Panel J/B Inner Circuit Relay Identification

RELAY DESCRIPTION
D/L Relay
D DR Unlock Relay
DR Unlock Relay
BK/DR Relay
Tail Relay
FR Fog Relay
P/Point Relay

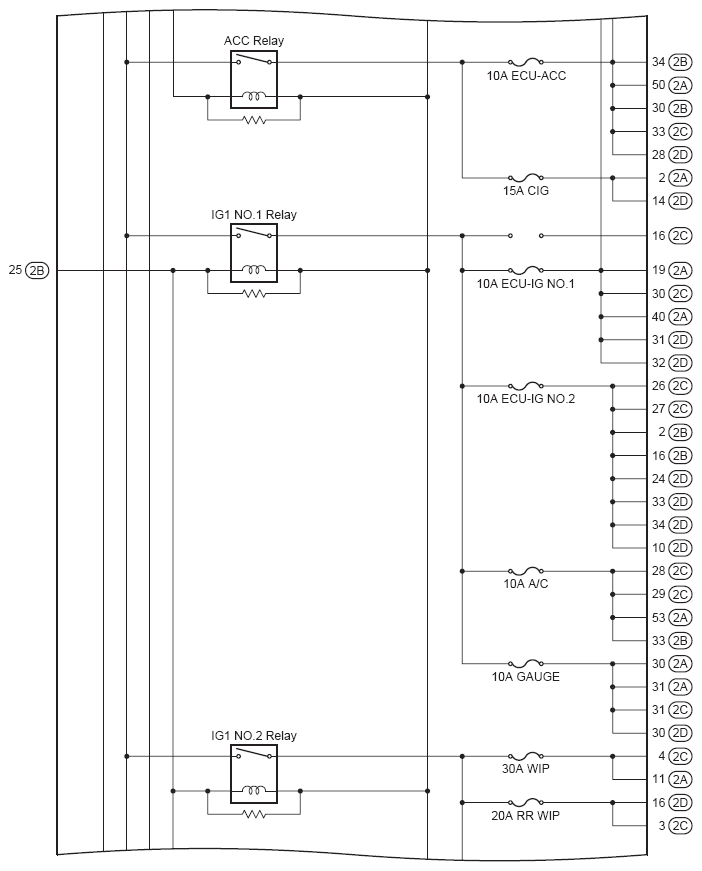

Fig 3: Instrument Panel J/B Assembly Relay Inner Circuit Diagram (3 Of 5)
G09109651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Instrument Panel J/B Inner Circuit Relay Identification

RELAY DESCRIPTION
ACC Relay
IG1 No. 1 Relay
IG2 No. 2 Relay

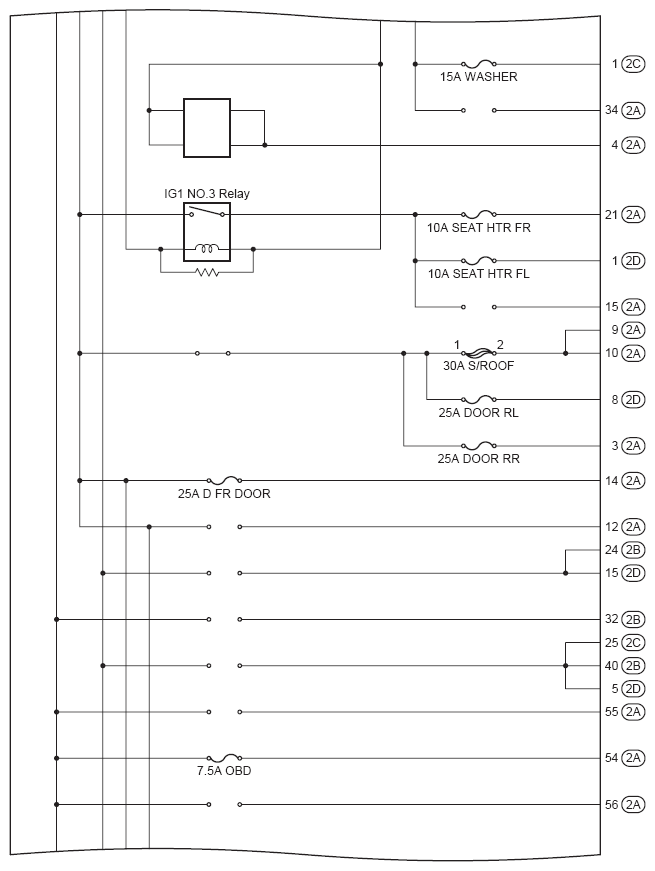

Fig 4: Instrument Panel J/B Assembly Relay Inner Circuit Diagram (4 Of 5)
G09109652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Instrument Panel J/B Inner Circuit Relay Identification

RELAY DESCRIPTION
IG2 No. 3 Relay

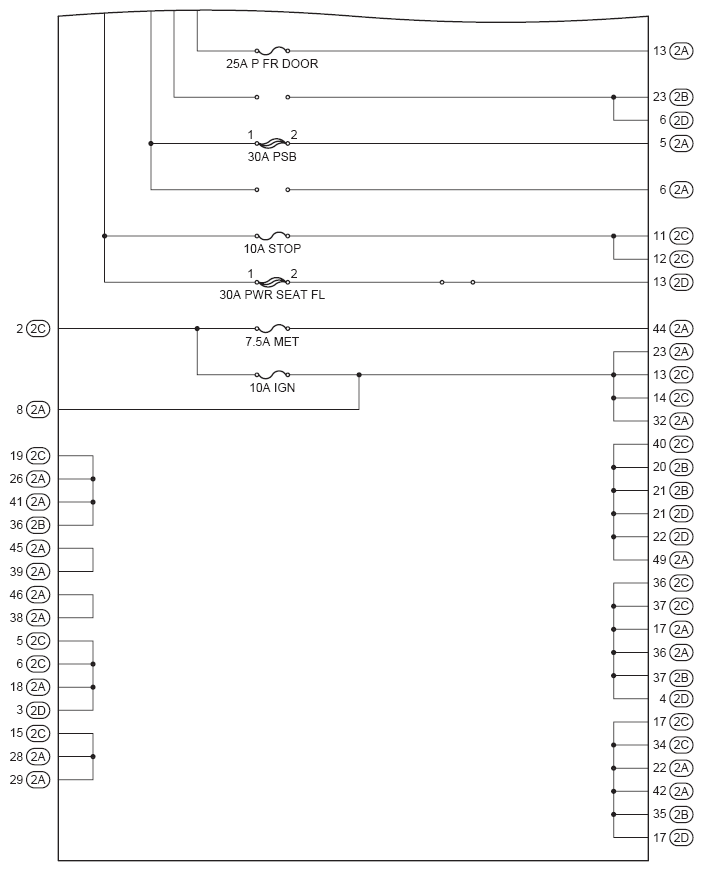

Fig 5: Instrument Panel J/B Assembly Relay Inner Circuit Diagram (5 Of 5)
G09109653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
