Home >> Toyota >> 2013 >> Prius Two >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge / Display (Diagnostic Codes & Symptom Tests) (Except Plug-In) >> Meter / Gauge System >> DTC B1504: Lost Communication with Steering SW >> Wiring Diagram

DTC B1504: Lost Communication with Steering SW: Wiring Diagram

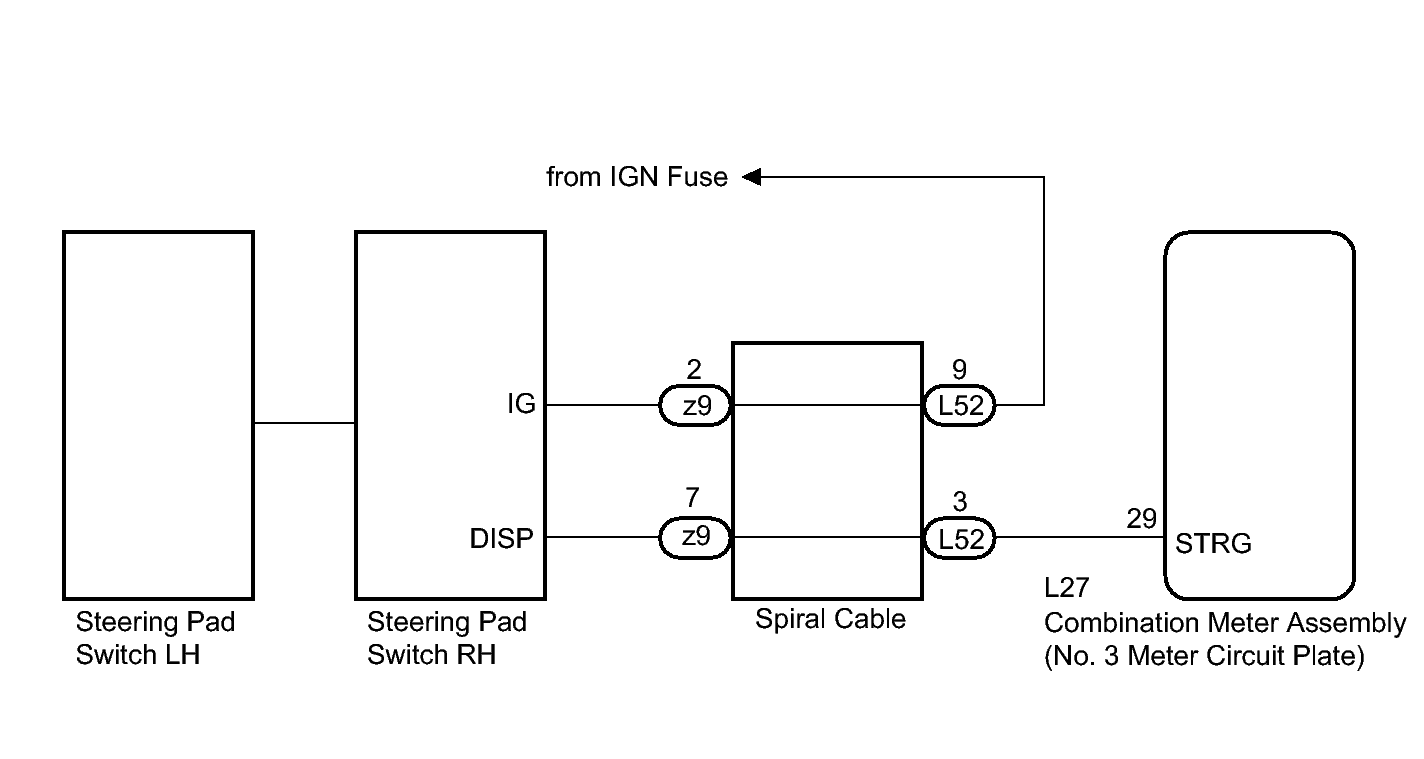

Fig 1: Steering SW Wiring Diagram

GTY371416

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
