SRS Warning Light does not Come ON: Wiring Diagram

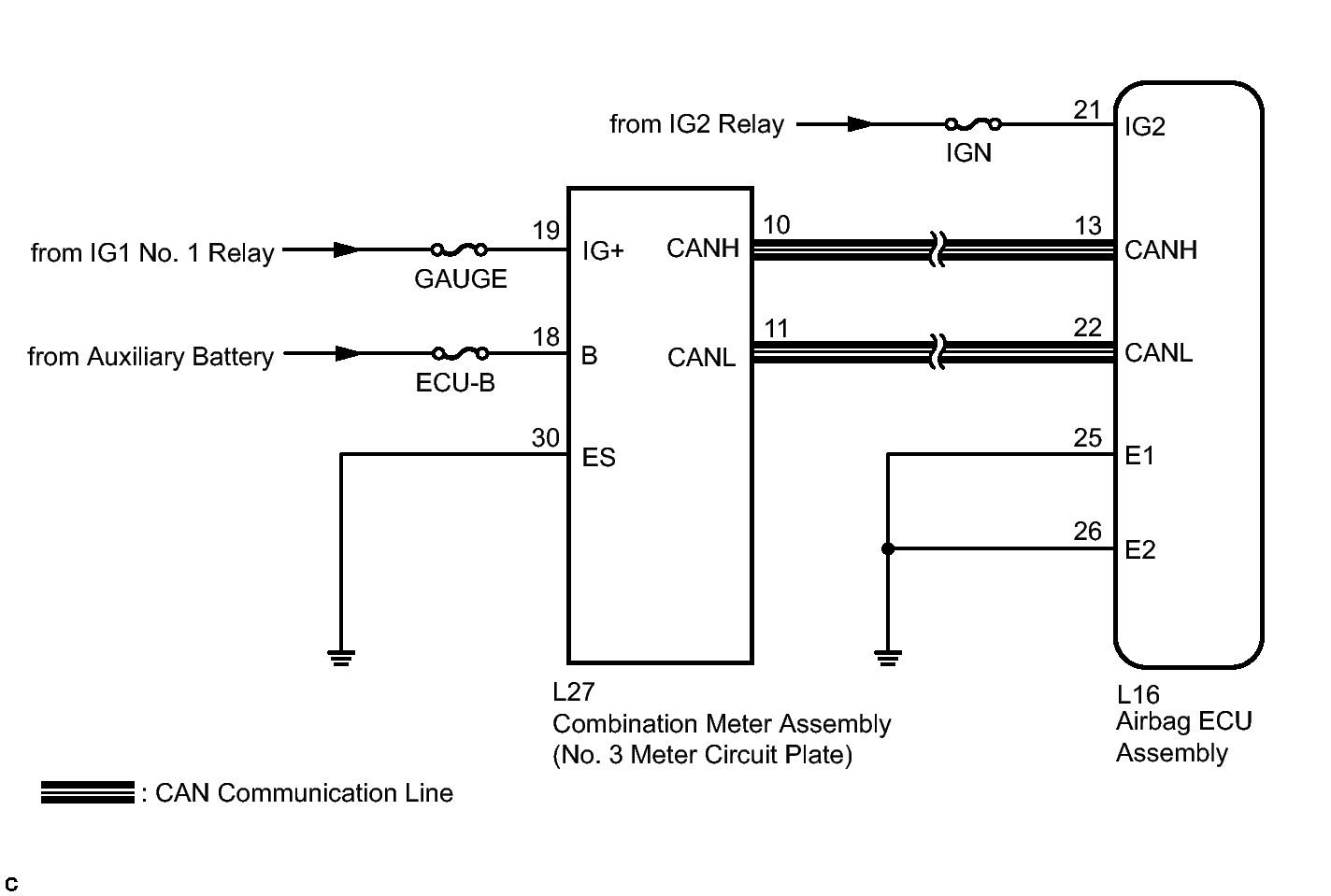

Fig 1: Identifying SRS Warning Light Circuit Diagram

GTY327639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
