DTC B1800/51: Short in Driver Side Squib Circuit; DTC B1801/51: Open in Driver Side Squib Circuit; DTC B1802/51: Short to GND in Driver Side Squib Circuit; DTC B1803/51: Short to B+ in Driver Side Squib Circuit: Wiring Diagram

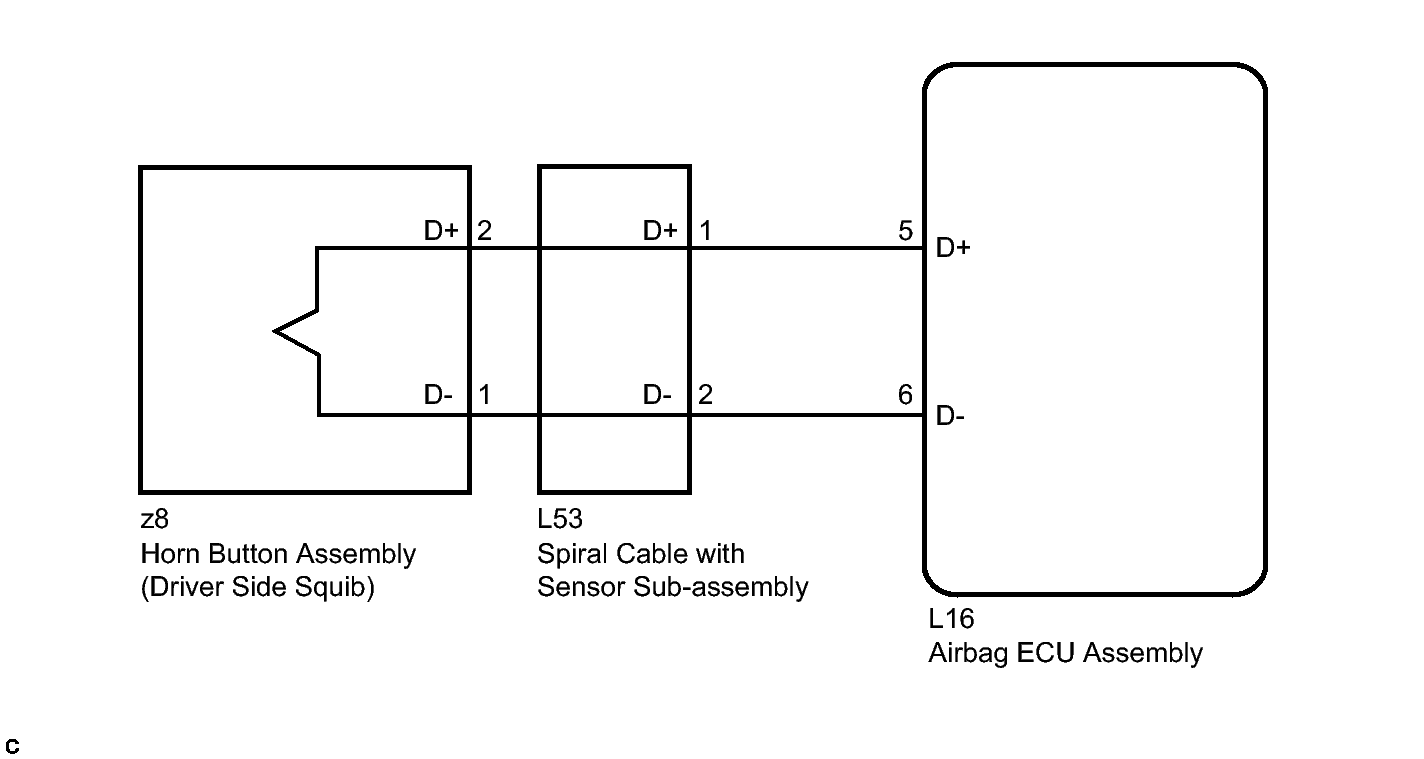

Fig 1: Identifying Driver Side Squib Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
