Combination Meter: Installation: Installation

INSTALL COMBINATION METER ASSEMBLY
1. Engage the clip.

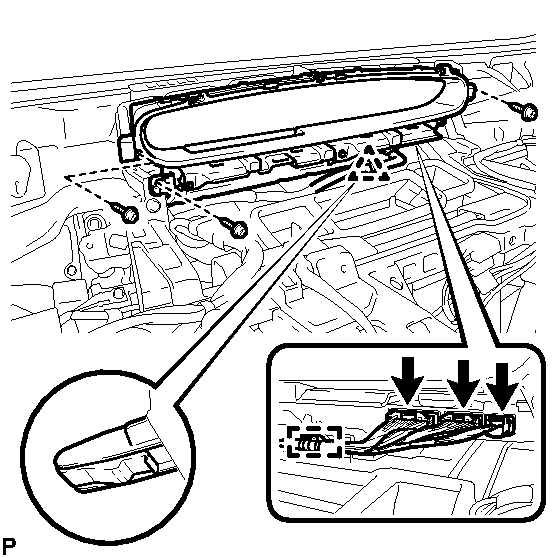

  Fig 1: Identifying Connectors, Clamp & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the combination meter assembly with the 3 screws.
3. Engage the clamp.
4. Connect the 3 connectors.
INSTALL NO. 1 HEATER TO REGISTER DUCT . Refer to INSTALLATION - Step 8
INSTALL UPPER INSTRUMENT PANEL ASSEMBLY
Refer to INSTALLATION
