Combination Meter: Disassembly: Disassembly

NOTE:

When disassembling the combination meter assembly, eliminate static electricity by touching the vehicle body to prevent components from being damaged.

REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
1. Remove the 6 screws and instrument panel finish panel sub-assembly.

  Fig 1: Locating Instrument Panel Finish Panel Sub-Assembly & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 3 COMBINATION METER COVER
1. Remove the 3 screws.

  Fig 2: Locating No. 3 Combination Meter Cover Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 7 claws and 2 guides to remove the No. 3 combination meter cover.

  Fig 3: Locating No. 3 Combination Meter Cover, Claws & Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE METER CIRCUIT PLATE

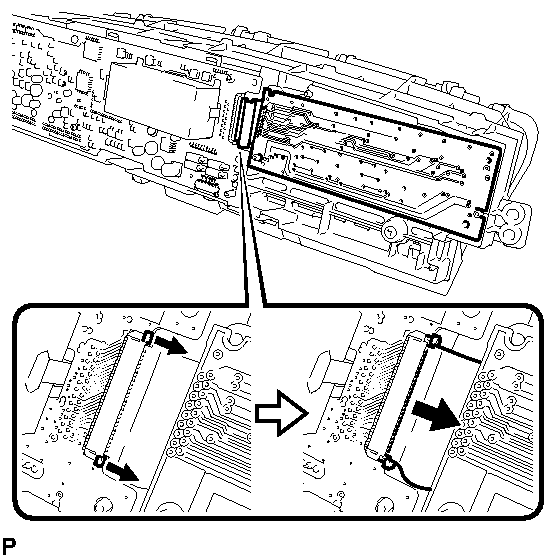

1. Disconnect the connector as shown in the illustration.

  Fig 4: Disconnecting Meter Circuit Plate Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 2 guides to remove the meter circuit plate.

  Fig 5: Locating Meter Circuit Plate & Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 COMBINATION METER COVER
1. Disengage the 2 guides to remove the No. 2 combination meter cover.

  Fig 6: Locating No. 2 Combination Meter Cover & Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 COMBINATION METER COVER
1. Disengage the 2 guides to remove the No. 1 combination meter cover.

  Fig 7: Locating No. 1 Combination Meter Cover & Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 4 COMBINATION METER COVER
1. Remove the 7 screws.

  Fig 8: Identifying No. 4 Combination Meter Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 6 claws to remove the No. 4 combination meter cover.

  Fig 9: Identifying Claws And No. 4 Combination Meter Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 METER CIRCUIT PLATE
1. Disconnect the connector as shown in the illustration.

  Fig 10: Identifying No. 2 Meter Circuit Plate Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 2 guides to remove the No. 2 meter circuit plate.

  Fig 11: Identifying No. 2 Meter Circuit Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the connector to remove the No. 5 meter circuit plate from the No. 2 meter circuit plate as shown in the illustration.

  Fig 12: Disconnecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 COMBINATION METER CASE
1. Disengage the 2 guides to remove the No. 2 combination meter case.

  Fig 13: View Of No. 2 Combination Meter Case & Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 METER LENS
1. Disengage the 2 guides to remove the No. 1 meter lens.

  Fig 14: Locating No. 1 Meter Lens & Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 4 METER CIRCUIT PLATE
1. Disconnect the connector to remove the No. 4 meter circuit plate as shown in the illustration.

  Fig 15: Disconnecting No. 4 Meter Circuit Plate Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 3 METER CIRCUIT PLATE
1. Disengage the 2 guides to remove the No. 3 meter circuit plate.

  Fig 16: Locating No. 3 Meter Circuit Plate & Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER CASE
1. Disengage the 2 guides to remove the combination meter case.

  Fig 17: Locating Combination Meter Case & Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 METER LENS
1. Disengage the 2 guides to remove the No. 2 meter lens.

  Fig 18: View Of No. 2 Meter Lens & Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 3 METER LENS
1. Disengage the 2 guides to remove the No. 3 meter lens.

  Fig 19: View Of No. 3 Meter Lens & Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 COMBINATION METER REFLECTOR
1. Disengage the clip and 9 guides, and remove the No. 1 combination meter reflector as shown in the illustration.

  Fig 20: Identifying No. 1 Combination Meter Reflector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 3 COMBINATION METER CASE
