Combination Meter: Removal: Removal

  1. REMOVE UPPER INSTRUMENT PANEL ASSEMBLY
    1. Remove the upper instrument panel assembly. Refer to REMOVAL .
  2. REMOVE NO. 1 HEATER TO REGISTER DUCT  . Refer to REMOVAL - Step 26
  3. REMOVE COMBINATION METER ASSEMBLY
    1. Disconnect the connector.

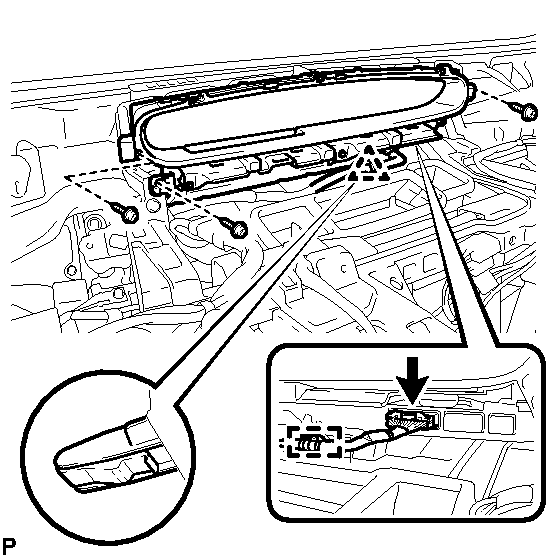

      Fig 1: Locating Combination Meter Assembly, Connector, Clamp, Screws & Clip
      GTY222445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the 3 screws.
    4. Disengage the clip and remove the combination meter assembly.
