DTC B1870/66: Short in Driver Side Front Seat Cushion Squib Circuit; DTC B1871/66: Open in Driver Side Front Seat Cushion Squib Circuit; DTC B1872/66: Short to GND in Driver Side Front Seat Cushion Squib Circuit; DTC B1873/66: Short to B+ in Driver Side Front Seat Cushion Squib Circuit: Wiring Diagram

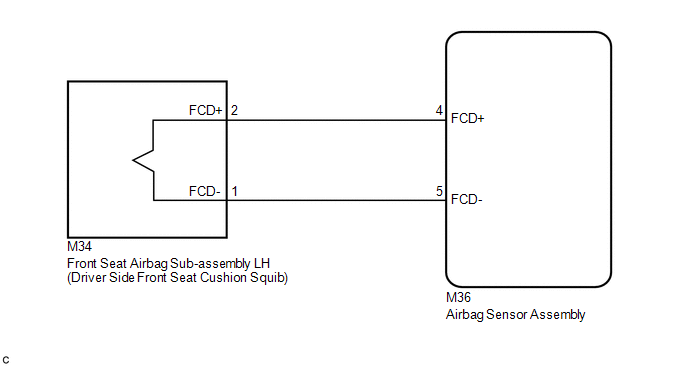

Fig 1: Identifying Driver Side Front Seat Cushion Squib Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
