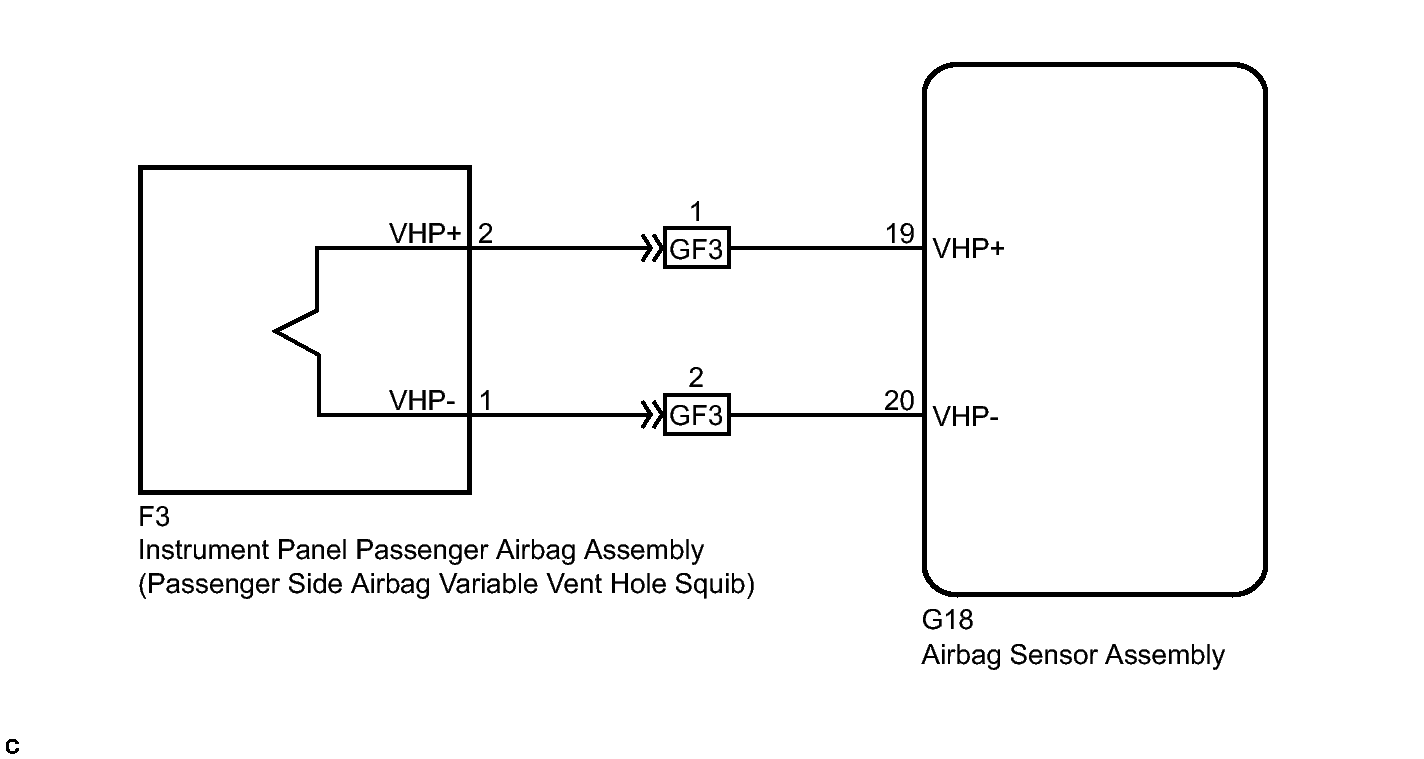

DTC B181A/7A: Short in Passenger Side Airbag Variable Vent Hole Squib Circuit; DTC B181B/7A: Open in Passenger Side Airbag Variable Vent Hole Squib Circuit; DTC B181C/7A: Short to GND in Passenger Side Airbag Variable Vent Hole Squib Circuit; DTC B181D/7A: Short to B+ in Passenger Side Airbag Variable Vent Hole Squib Circuit: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
