DTC B1660/43: Passenger Airbag ON/OFF Indicator Circuit Malfunction: Wiring Diagram

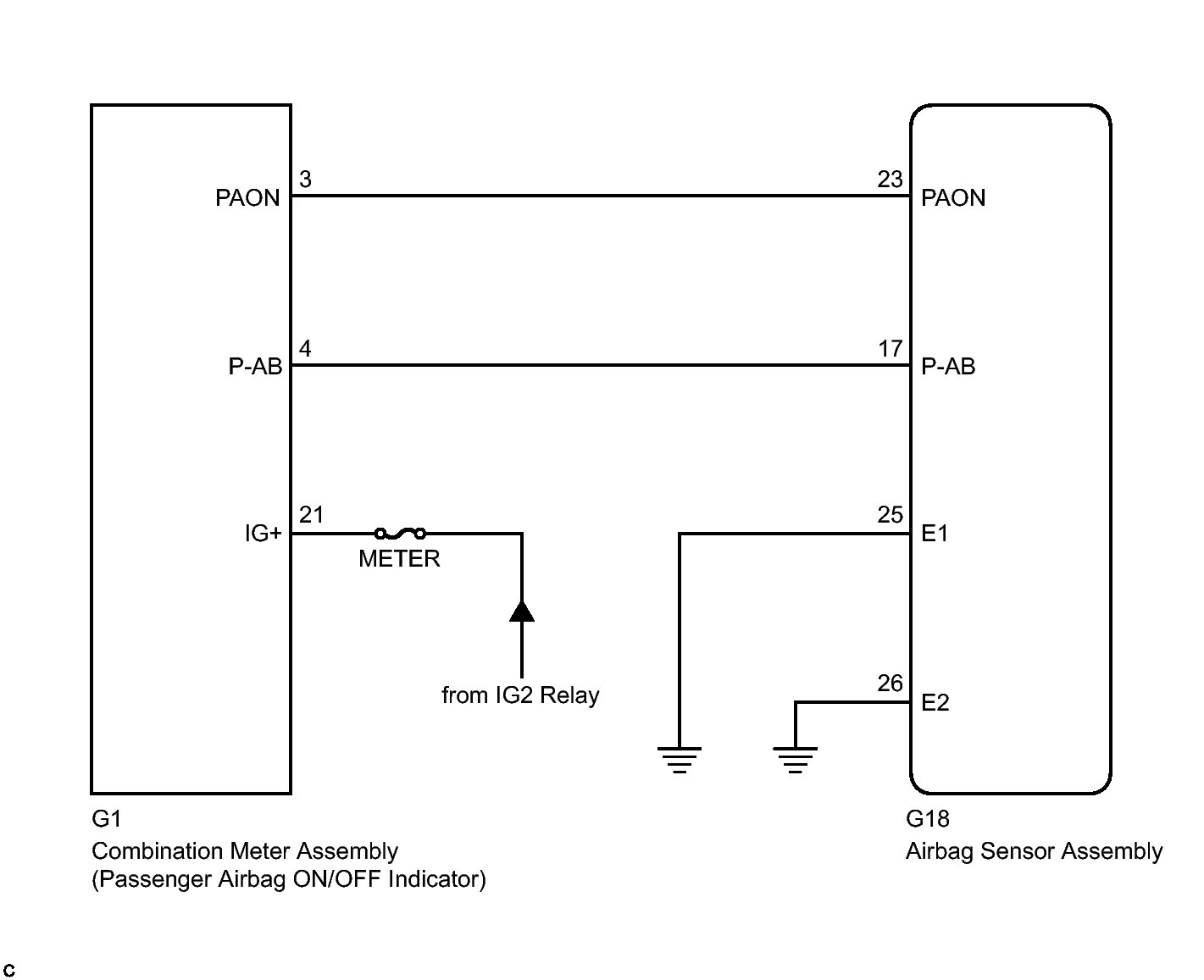

Fig 1: Identifying Passenger Airbag ON/OFF Indicator Circuit Diagram

GTY337824

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
