Tire Pressure Warning And Wireless Door Lock Control Wiring Diagram

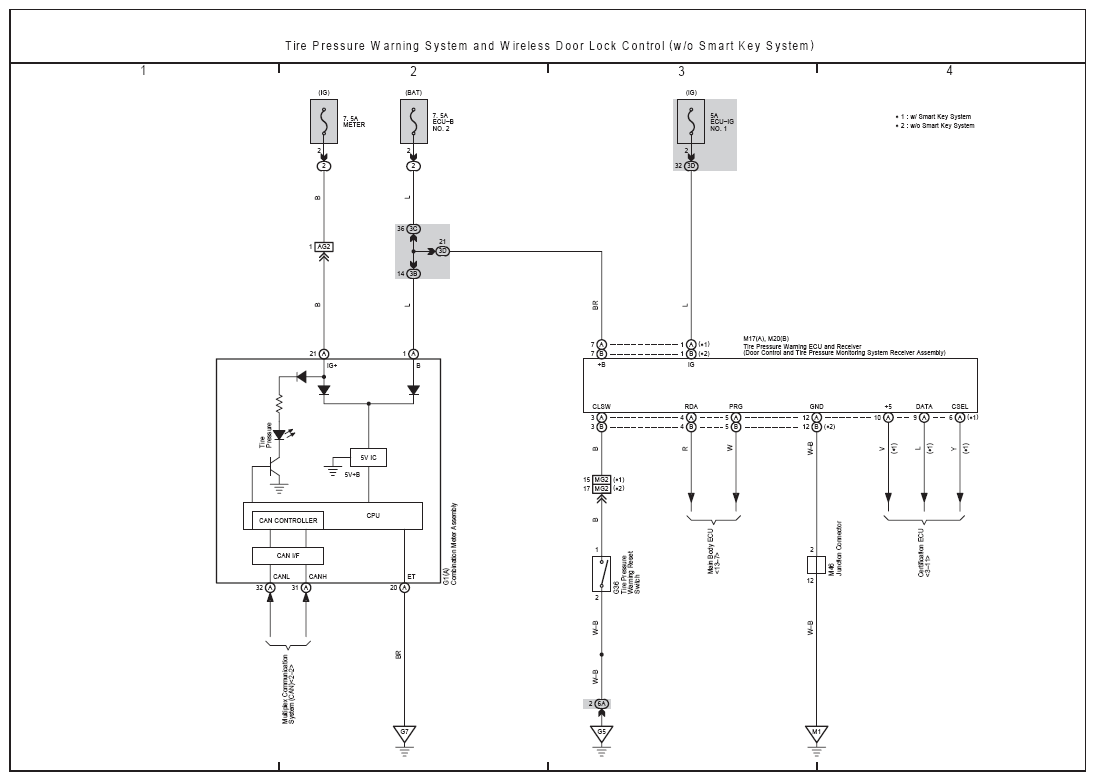

Fig 1: Tire Pressure Warning And Wireless Door Lock Control Electrical Wiring Diagram
G09101540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
