Starting And Hybrid System, Hybrid System, Shift Control & Cruise Control System Wiring Diagrams

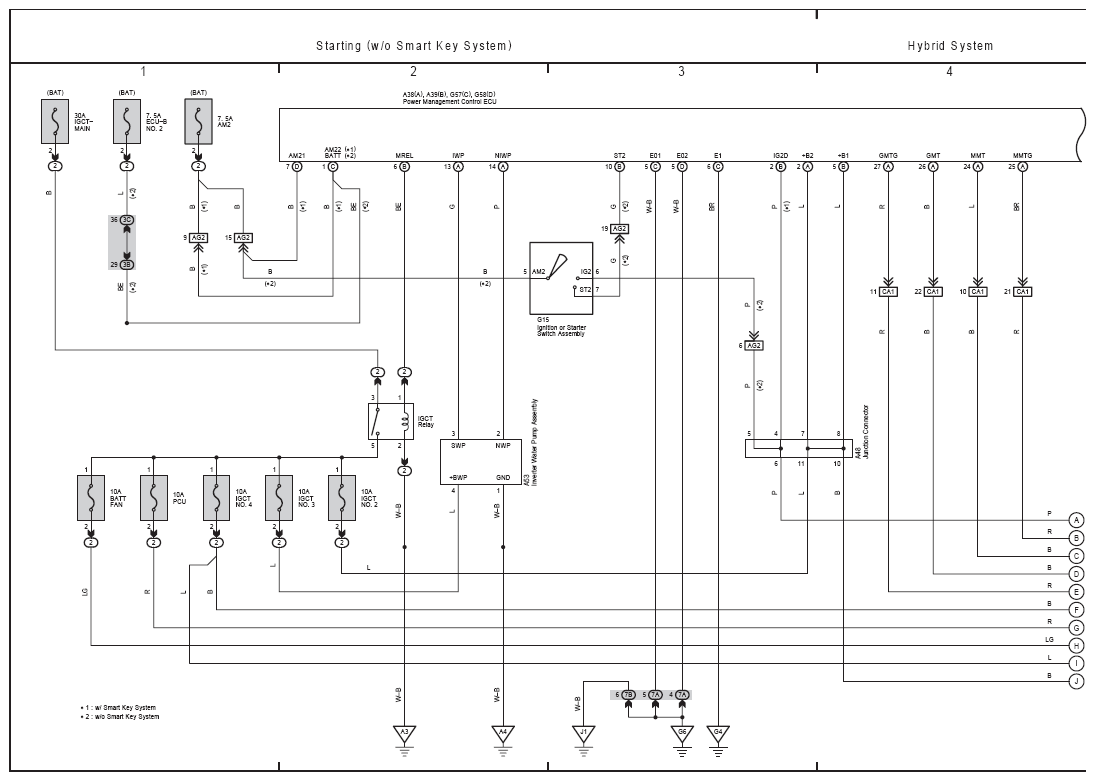

Fig 1: Starting And Hybrid System Electrical Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

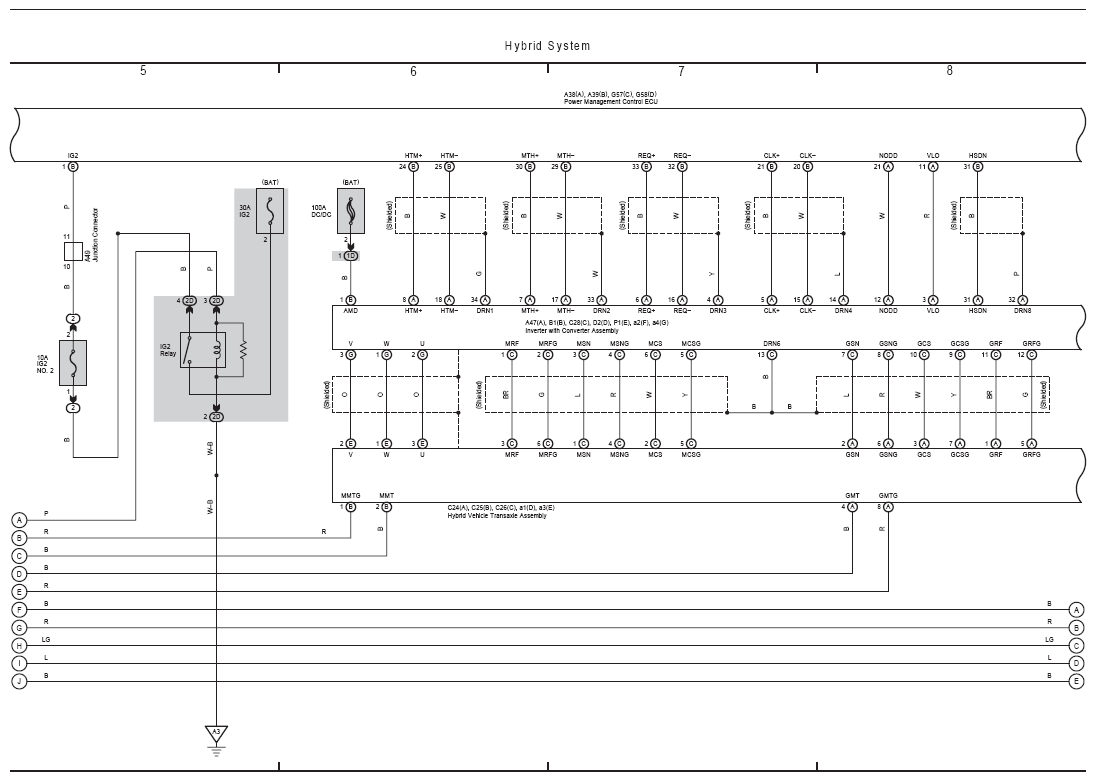

Fig 2: Hybrid System Electrical Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

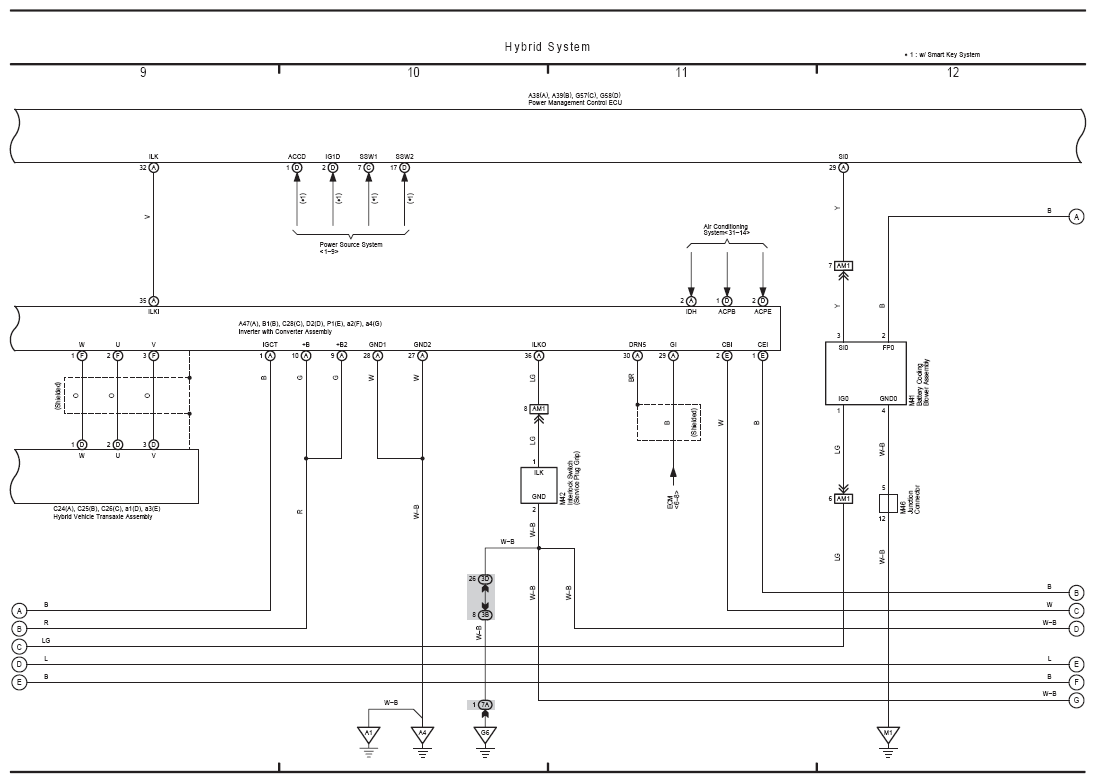

Fig 3: Hybrid System Electrical Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

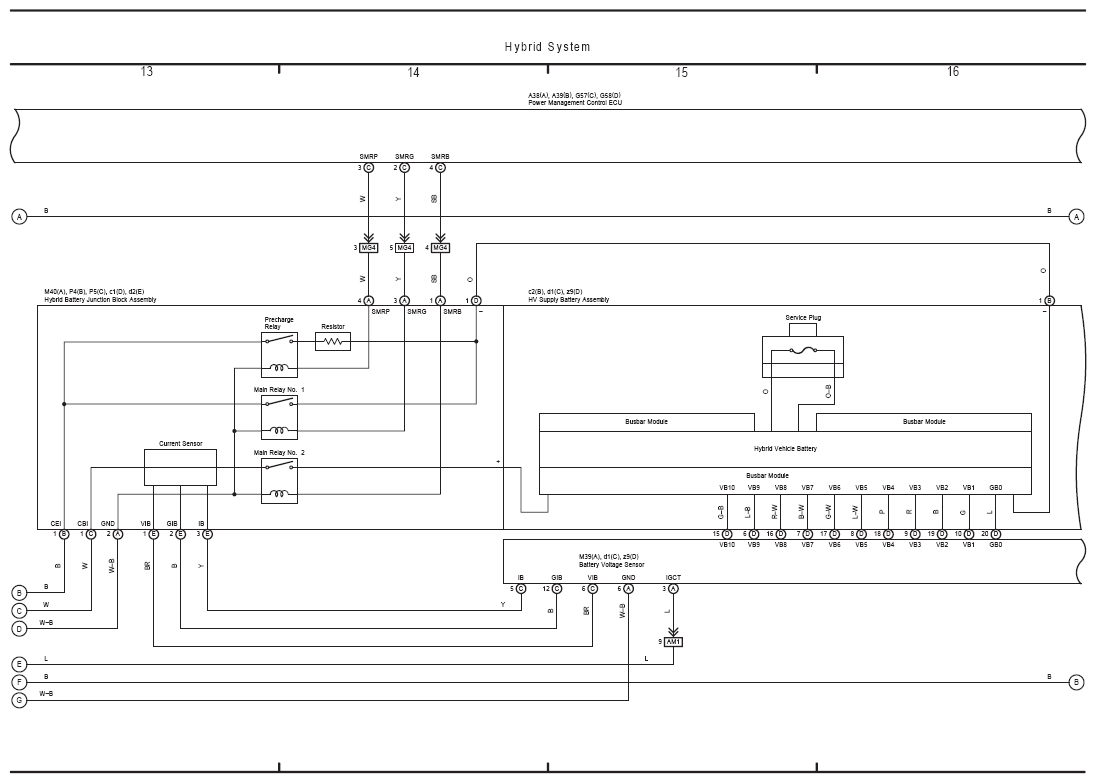

Fig 4: Hybrid System Electrical Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

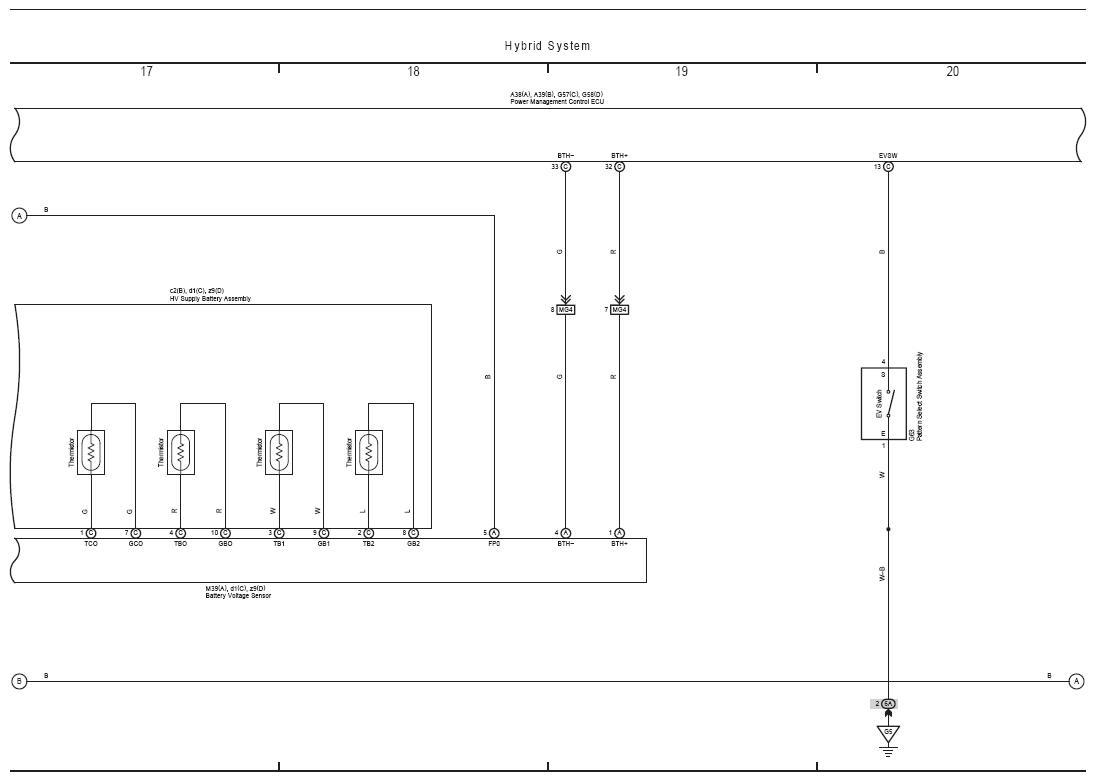

Fig 5: Hybrid System Electrical Wiring Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

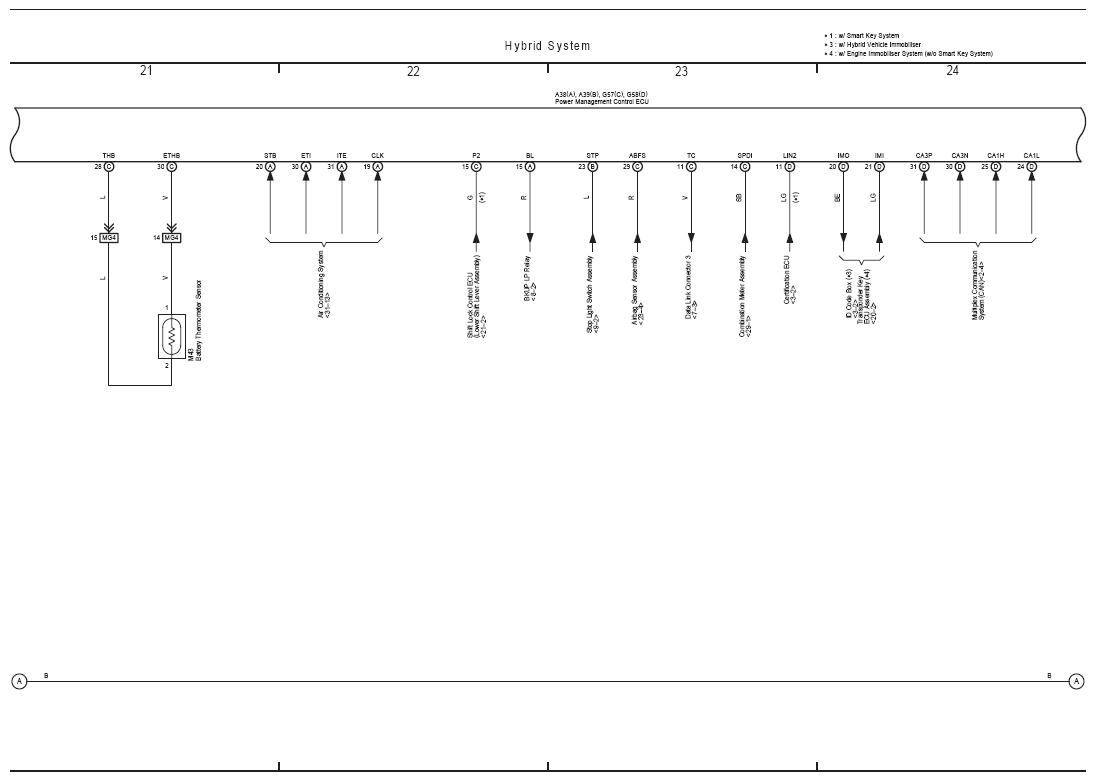

Fig 6: Hybrid System Electrical Wiring Diagram (5 Of 5)

Fig 7: Shift Control System Electrical Wiring Diagram

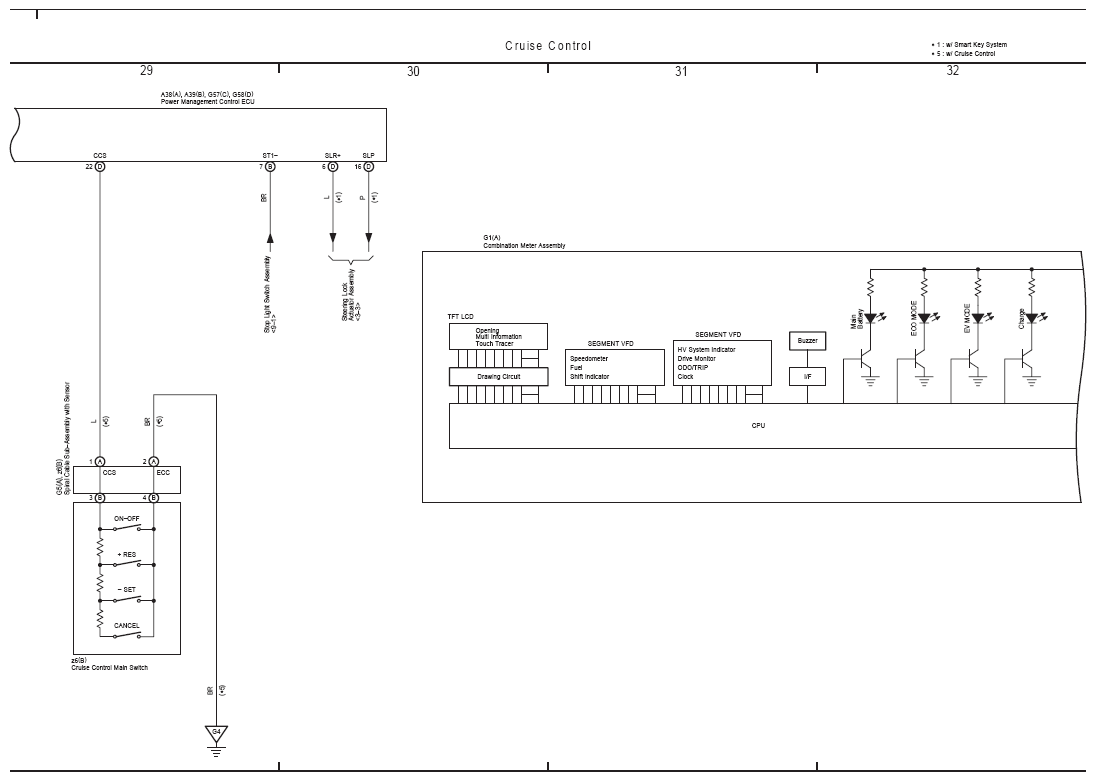

Fig 8: Cruise Control Electrical Wiring Diagram (1 Of 2)

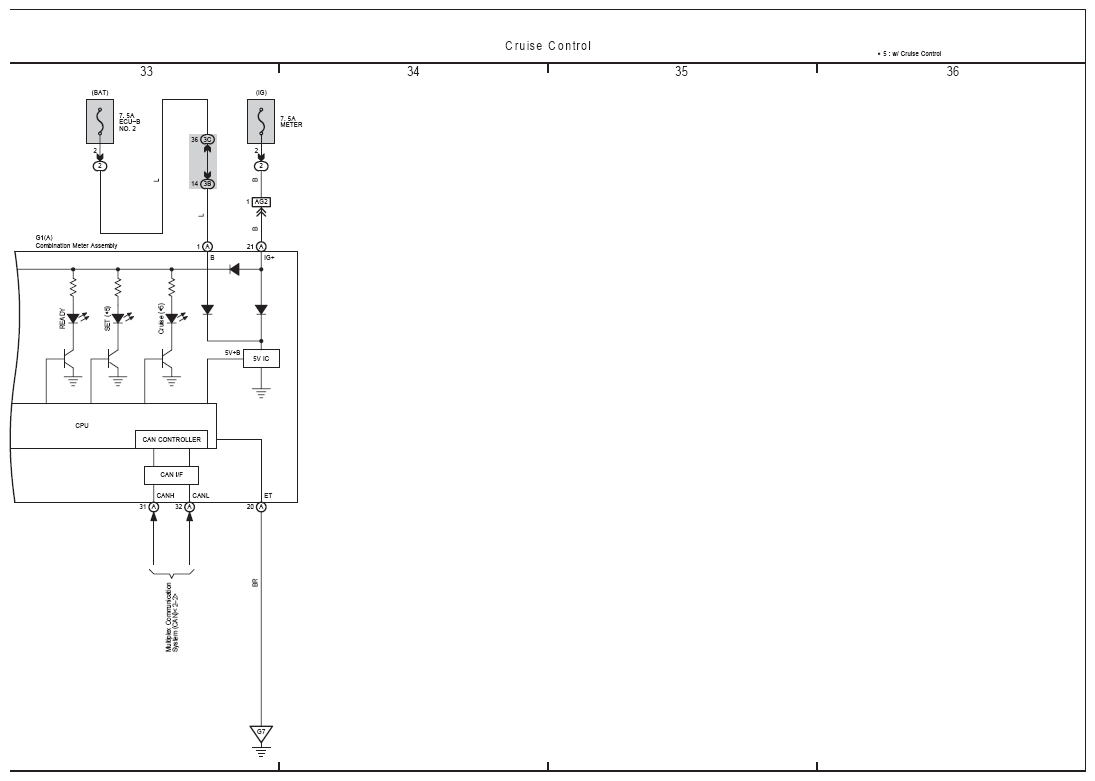

Fig 9: Cruise Control Electrical Wiring Diagram (2 Of 2)
