Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Sliding Roof Wiring Diagram
Sliding Roof Wiring Diagram

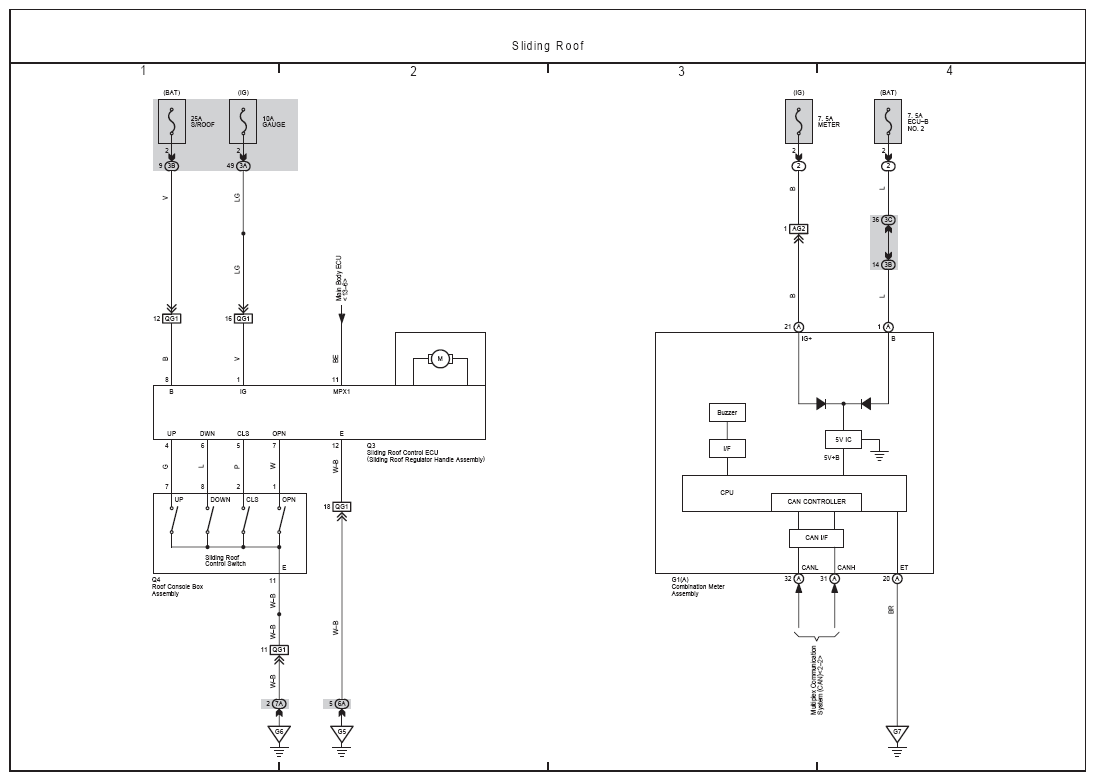

Fig 1: Sliding Roof Electrical Wiring Diagram
