Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Shift Lock And Horn Wiring Diagram
Shift Lock And Horn Wiring Diagram

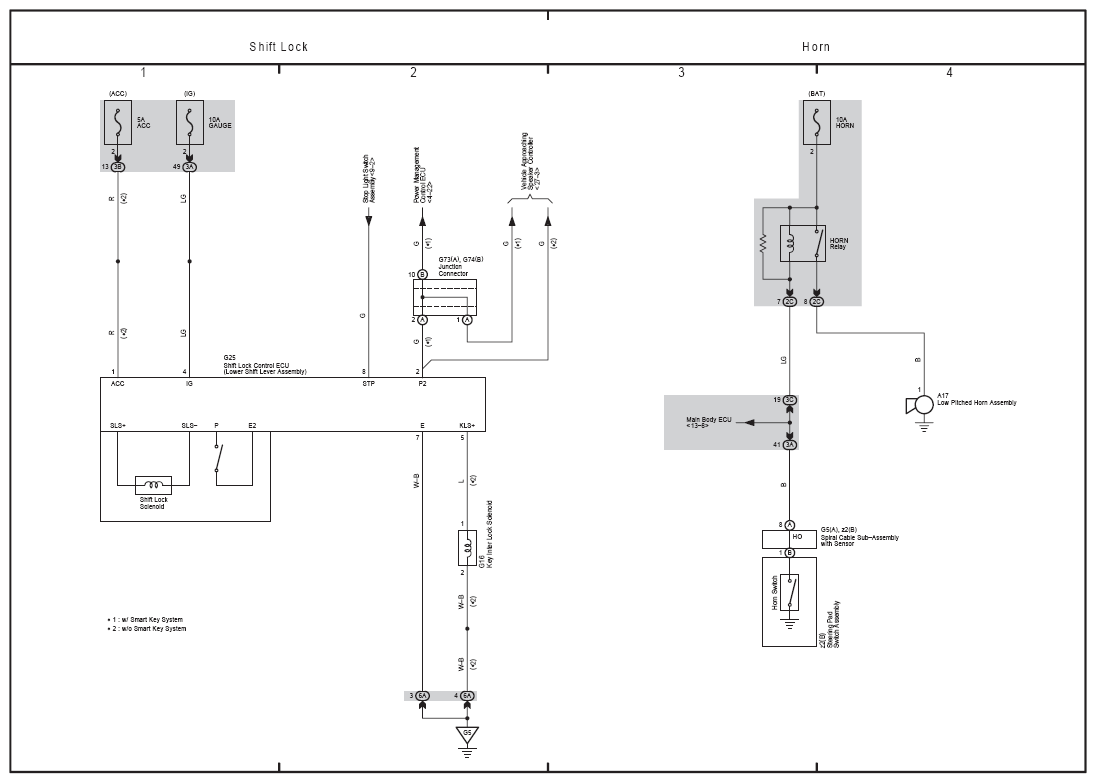

Fig 1: Shift Lock And Horn Electrical Wiring Diagram
