Seat Heater And Vehicle Proximity Notification System Wiring Diagram

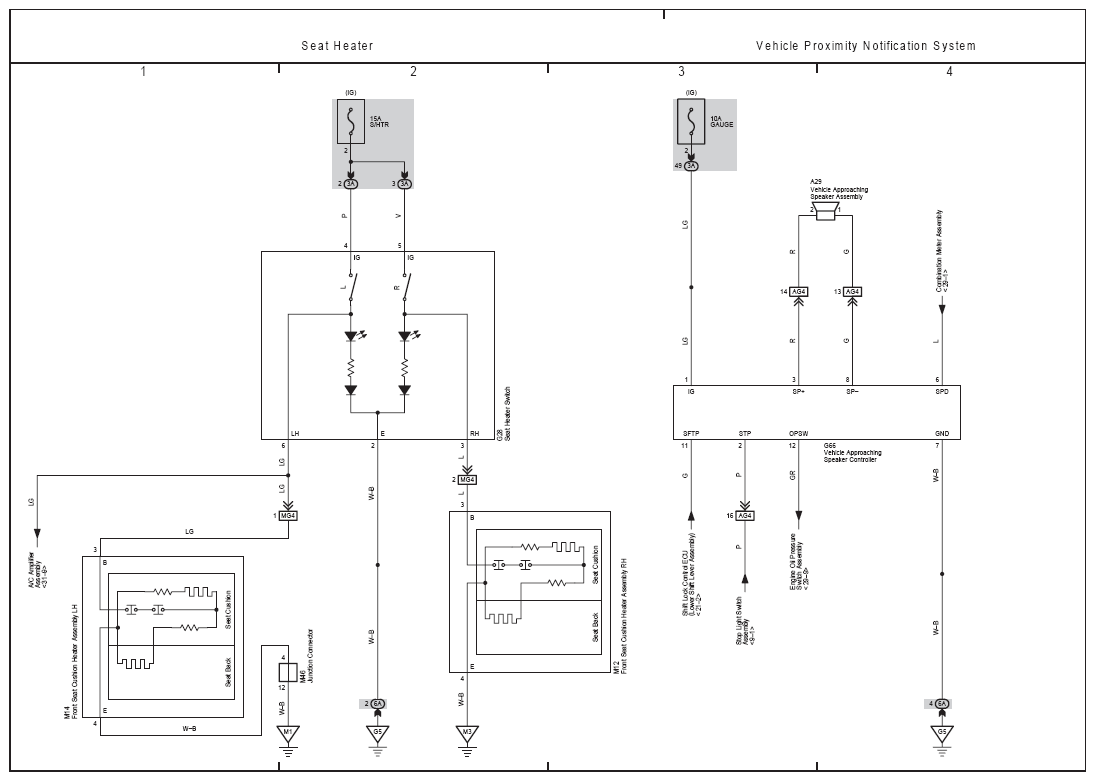

Fig 1: Seat Heater And Vehicle Proximity Notification System Electrical Wiring Diagram
G09101543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
