SRS And Seat Belt Warning Wiring Diagrams

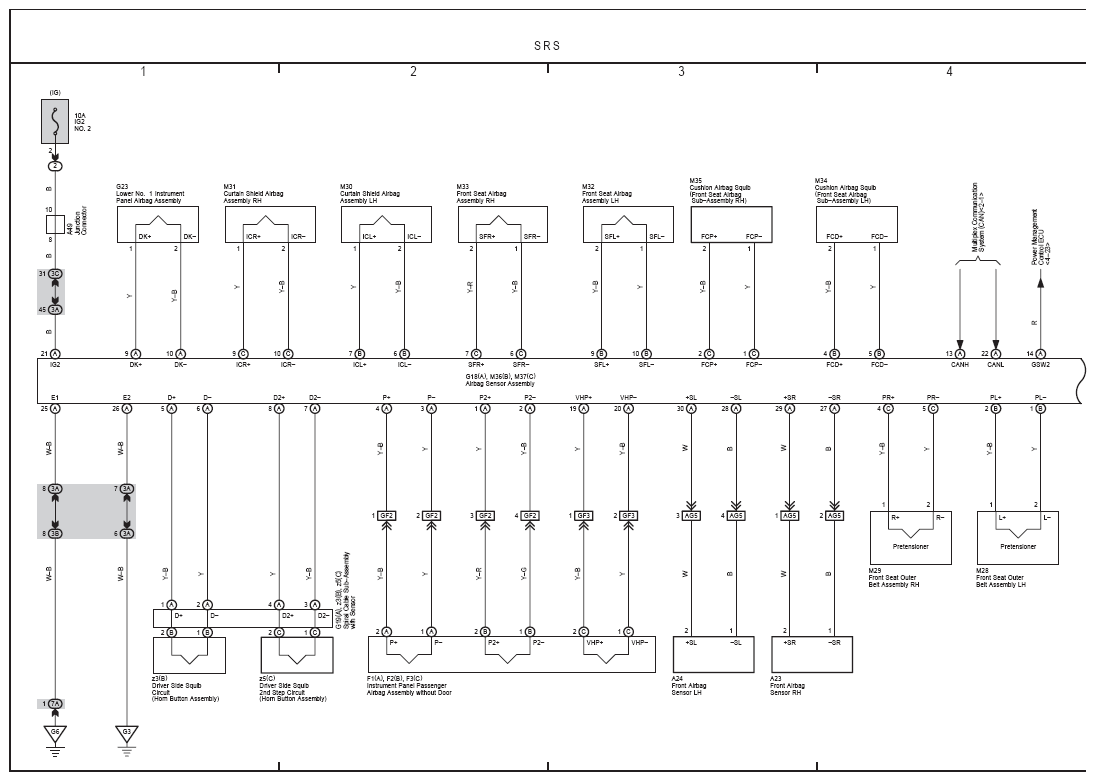

Fig 1: SRS Electrical Wiring Diagram
G09101537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

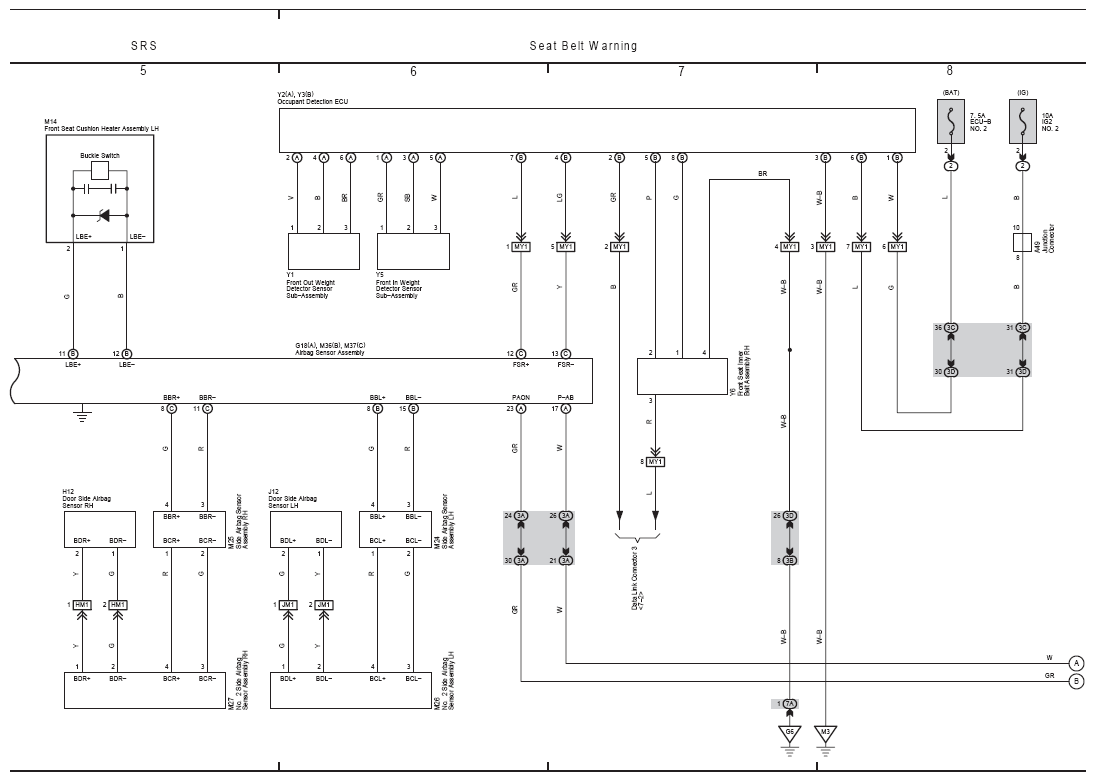

Fig 2: SRS And Seat Belt Warning Electrical Wiring Diagram
G09101538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

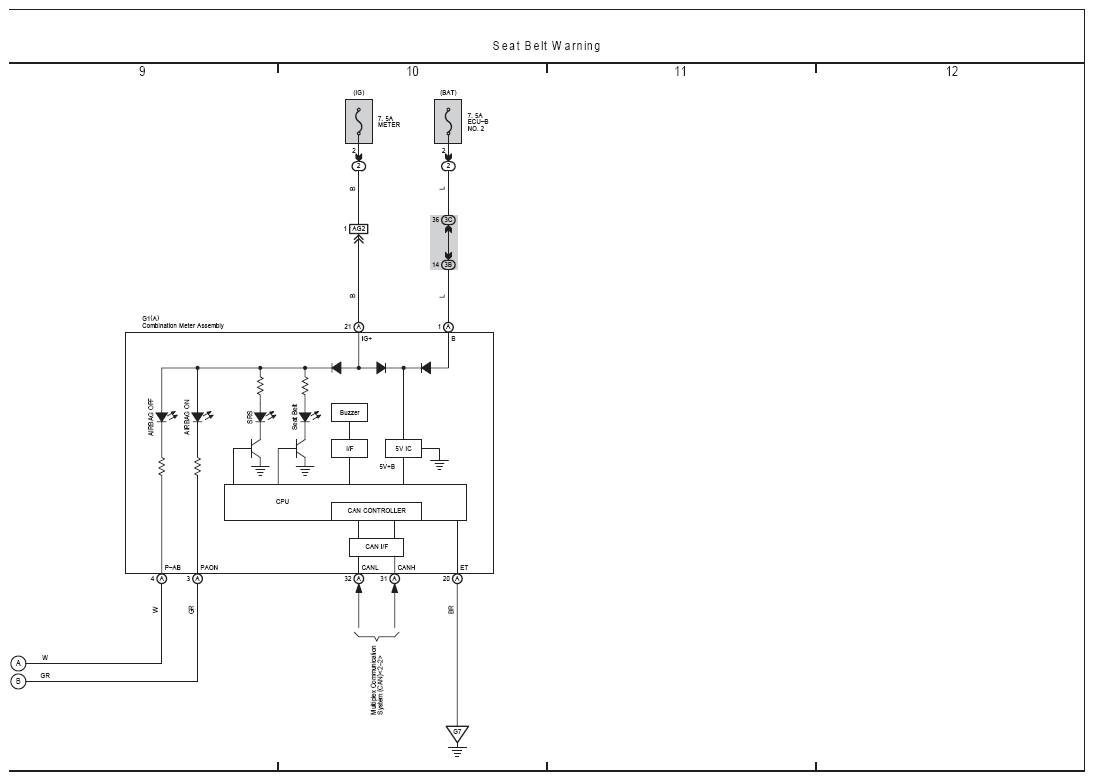

Fig 3: Seat Belt Warning Electrical Wiring Diagram
G09101539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
