Remote Control Mirror Wiring Diagram

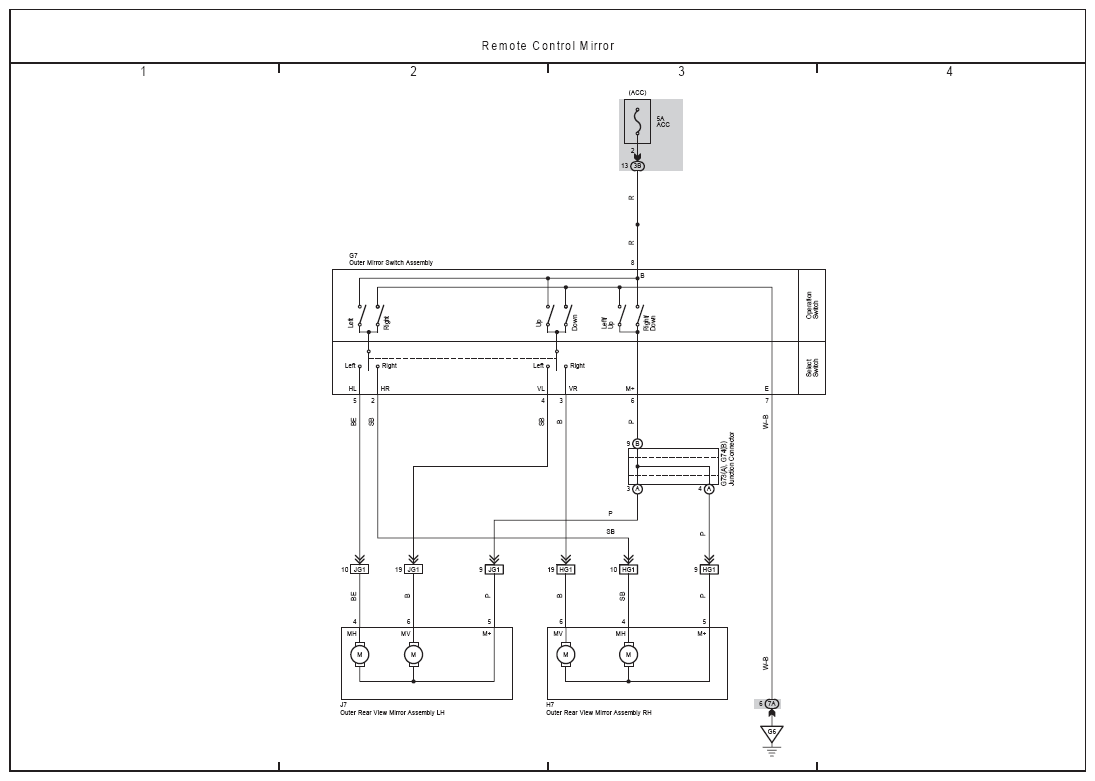

Fig 1: Remote Control Mirror Electrical Wiring Diagram

G09101529

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
