Rear Wiper And Washer Wiring Diagram

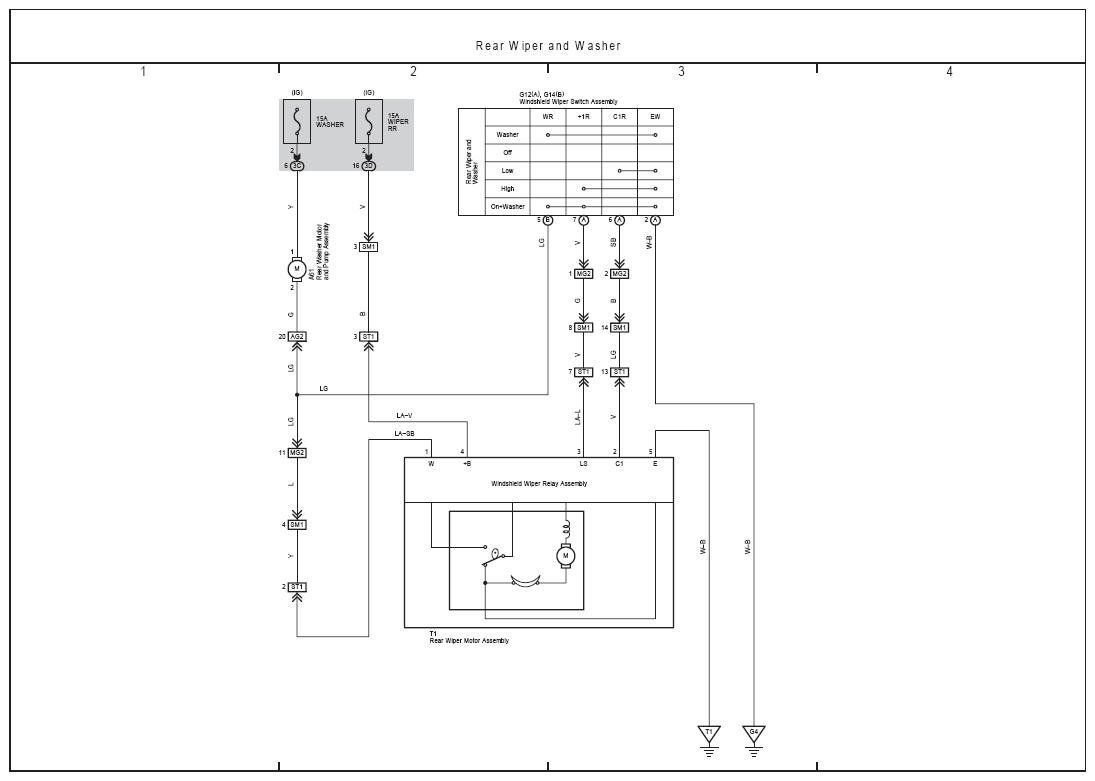

Fig 1: Rear Wiper And Washer Electrical Wiring Diagram

G09101531

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
