OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Power Window Wiring Diagram
Power Window Wiring Diagram

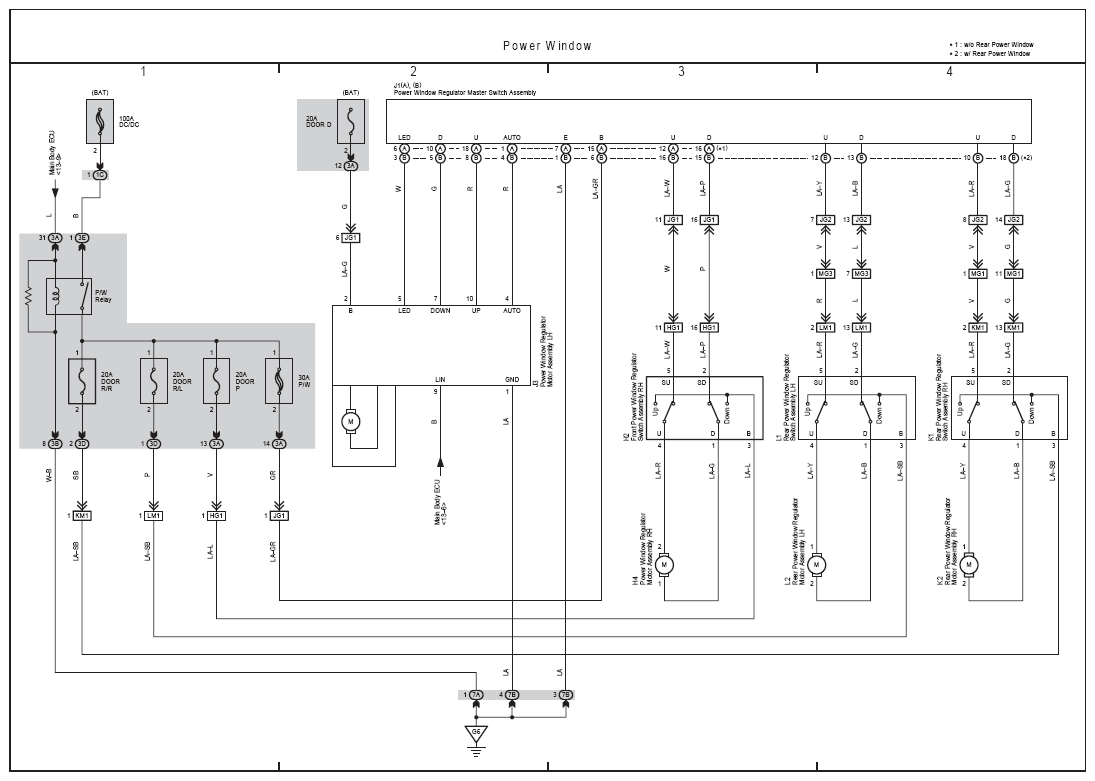

Fig 1: Power Window Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
