Overall Electrical Wiring Diagram
>>
Power Outlet, Mirror Heater And Rear Window Defogger Wiring Diagram
Power Outlet, Mirror Heater And Rear Window Defogger Wiring Diagram

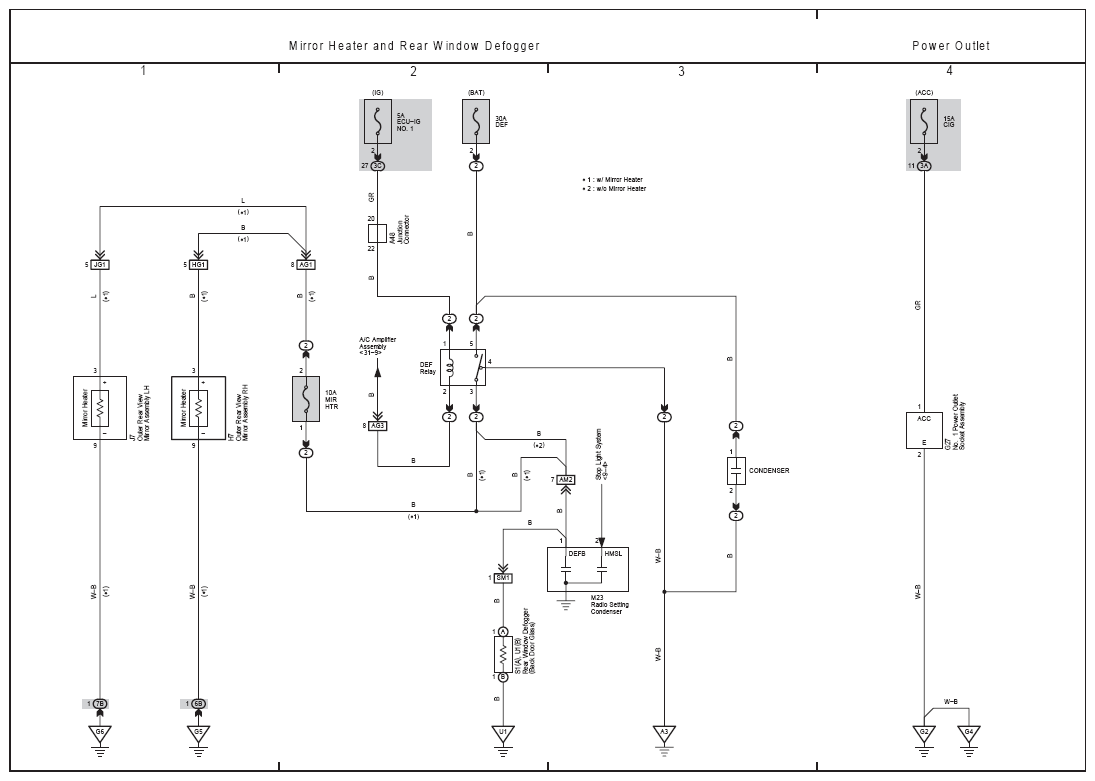

Fig 1: Power Outlet, Mirror Heater And Rear Window Defogger Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
