Multiplex Communication System (Can) Wiring Diagram

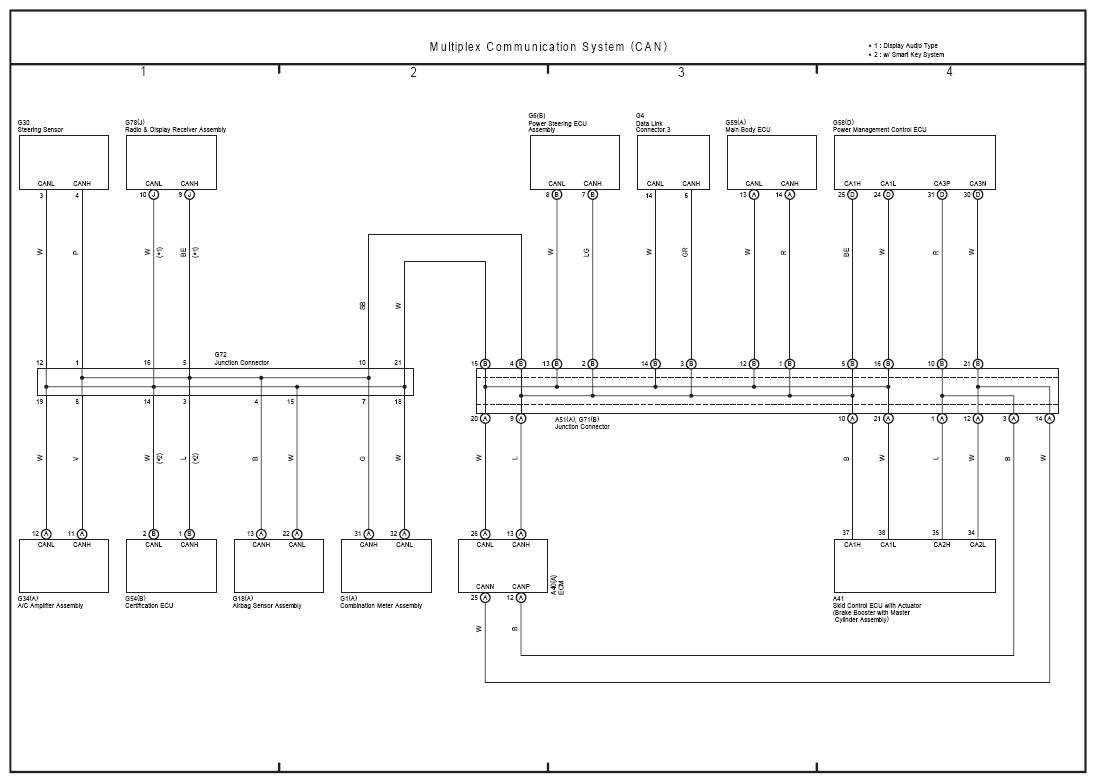

Fig 1: Multiplex Communication System (CAN) Electrical Wiring Diagram

G09101493
