Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Ignition System Wiring Diagram
Ignition System Wiring Diagram

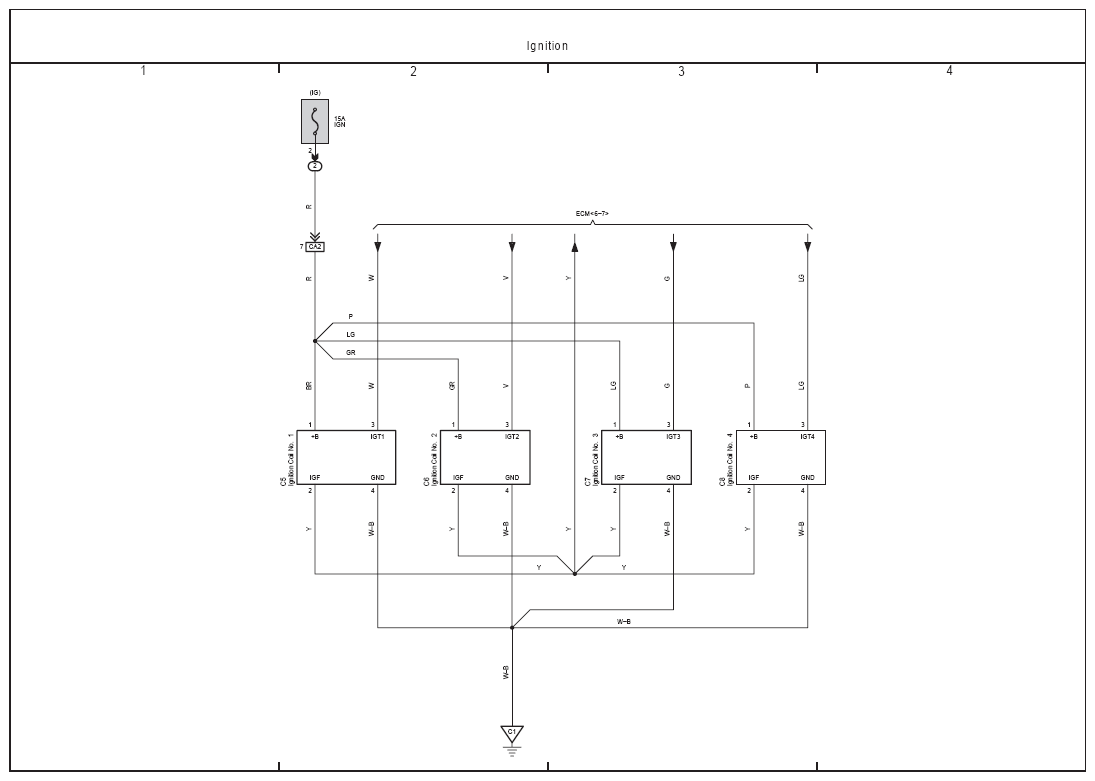

Fig 1: Ignition System Electrical Wiring Diagram
