Overall Electrical Wiring Diagram
>>
How To Read This Section
How To Read This Section

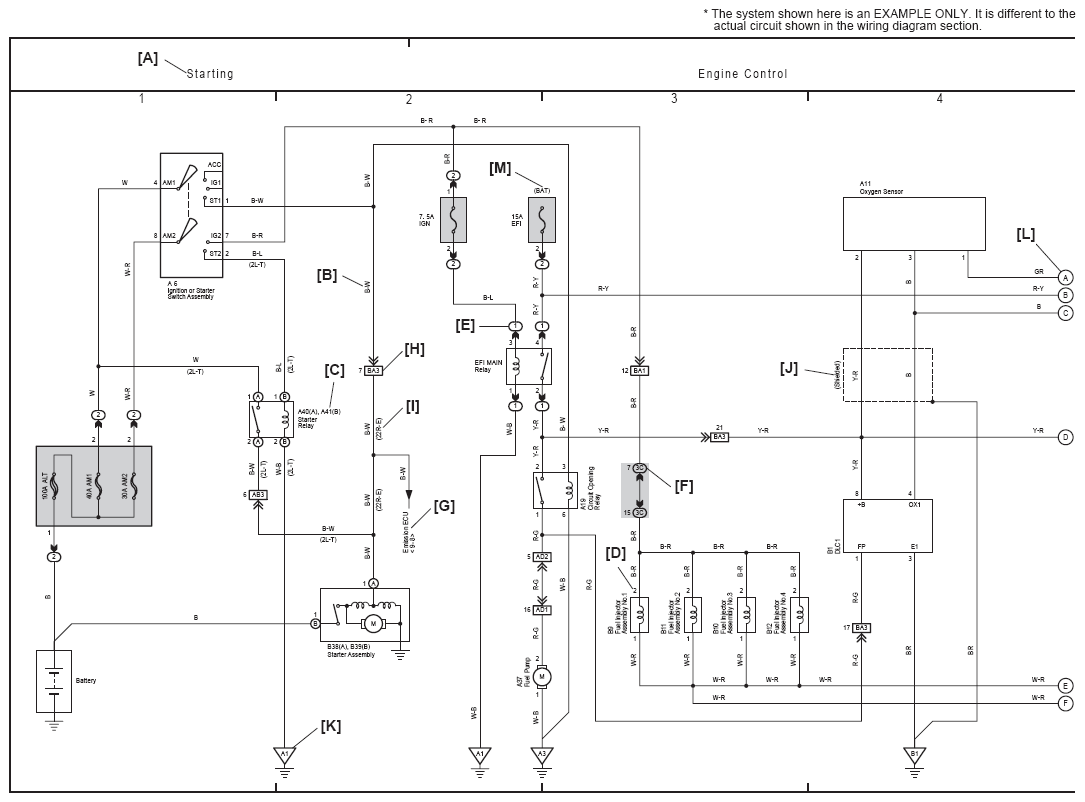

Fig 1: Electrical Wiring Diagram Example
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

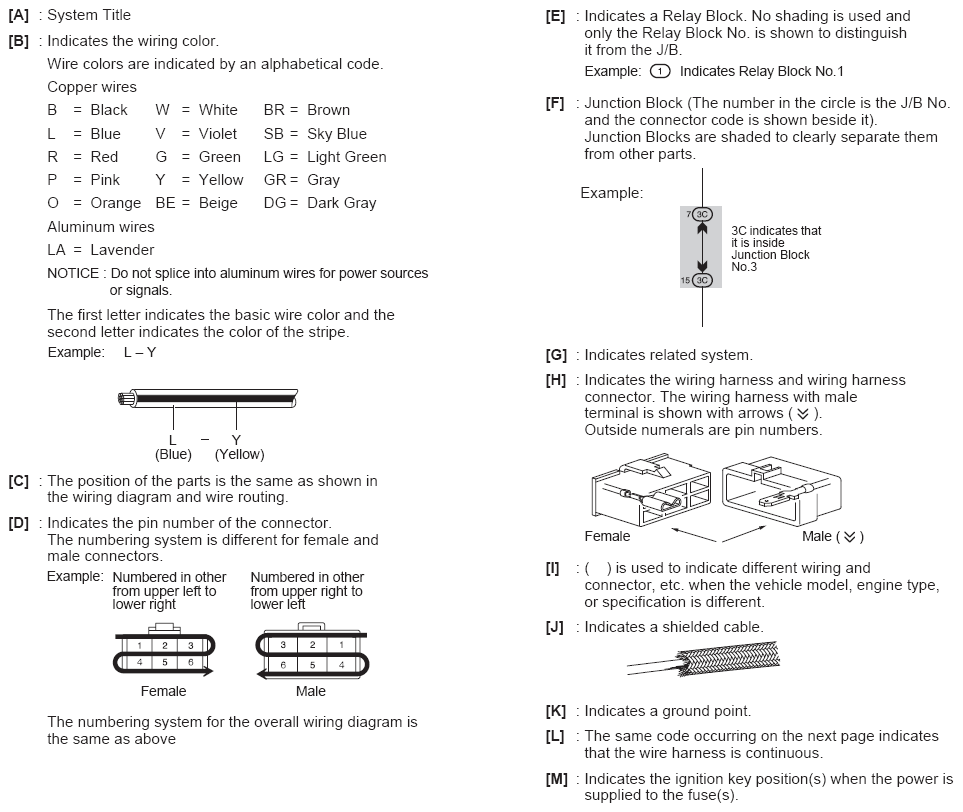

Fig 2: Electrical Wiring Diagram Legend Example
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
