Headlight, Light Reminder, Key Reminder And Interior Light Wiring Diagrams

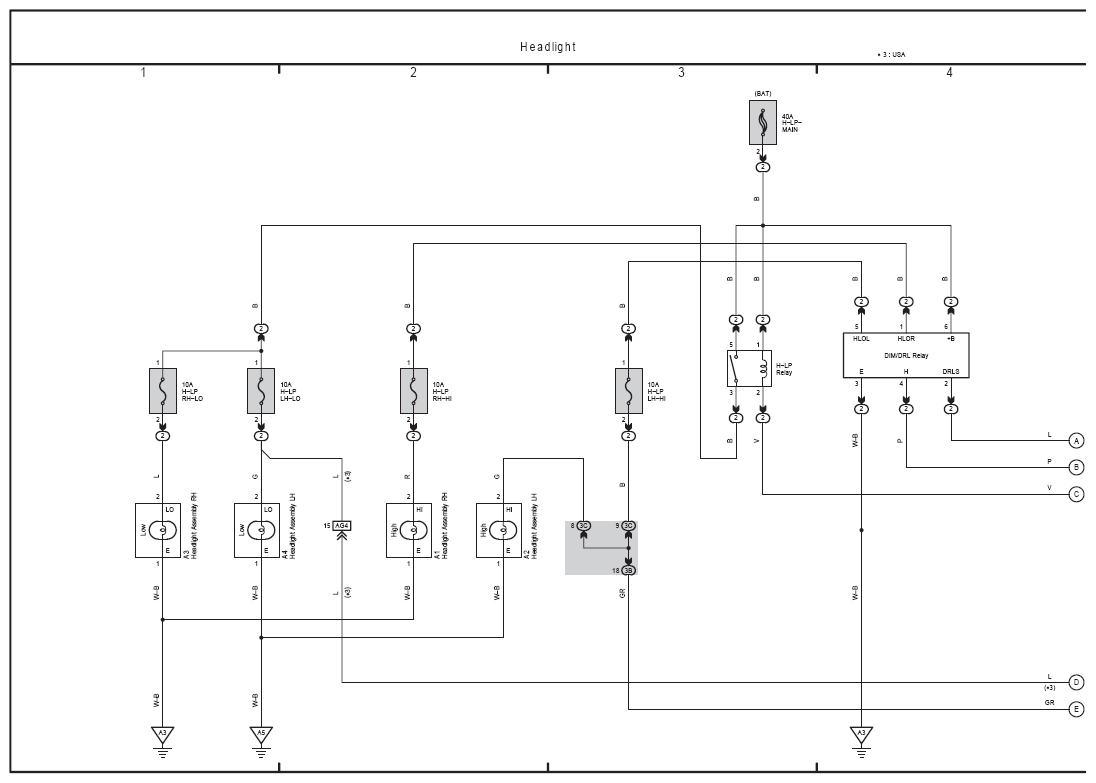

Fig 1: Headlight Electrical Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

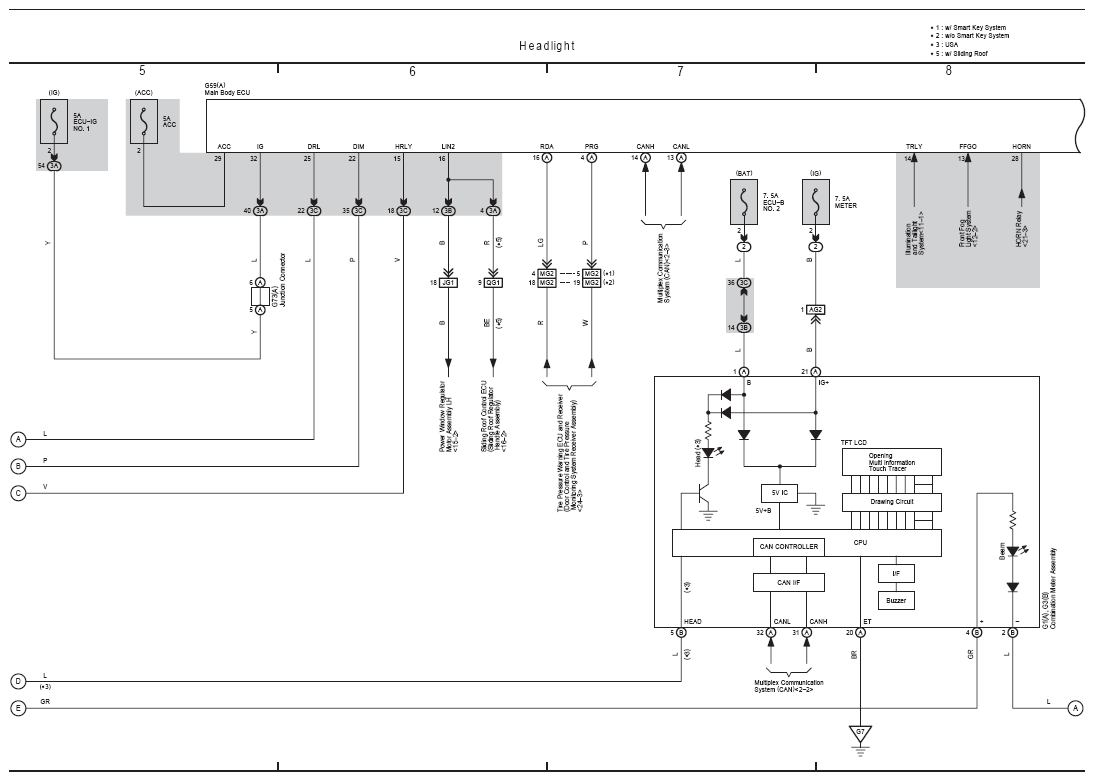

Fig 2: Headlight Electrical Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

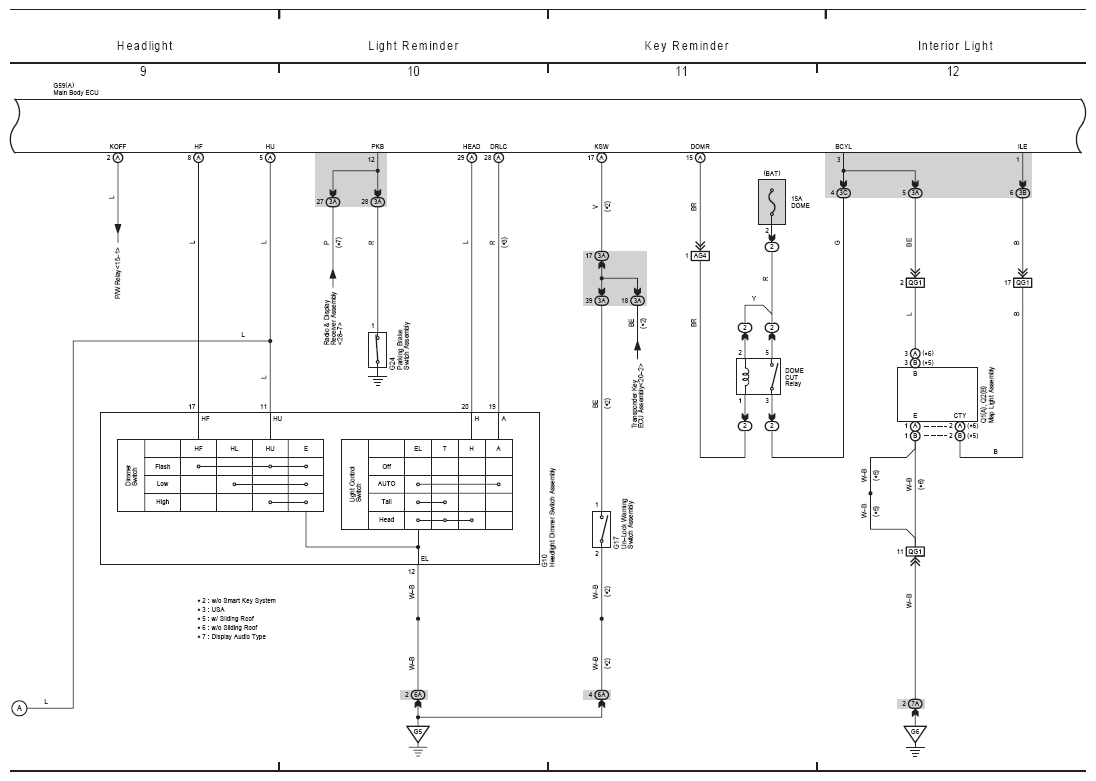

Fig 3: Headlight, Light Reminder, Key Reminder And Interior Light Electrical Wiring Diagram

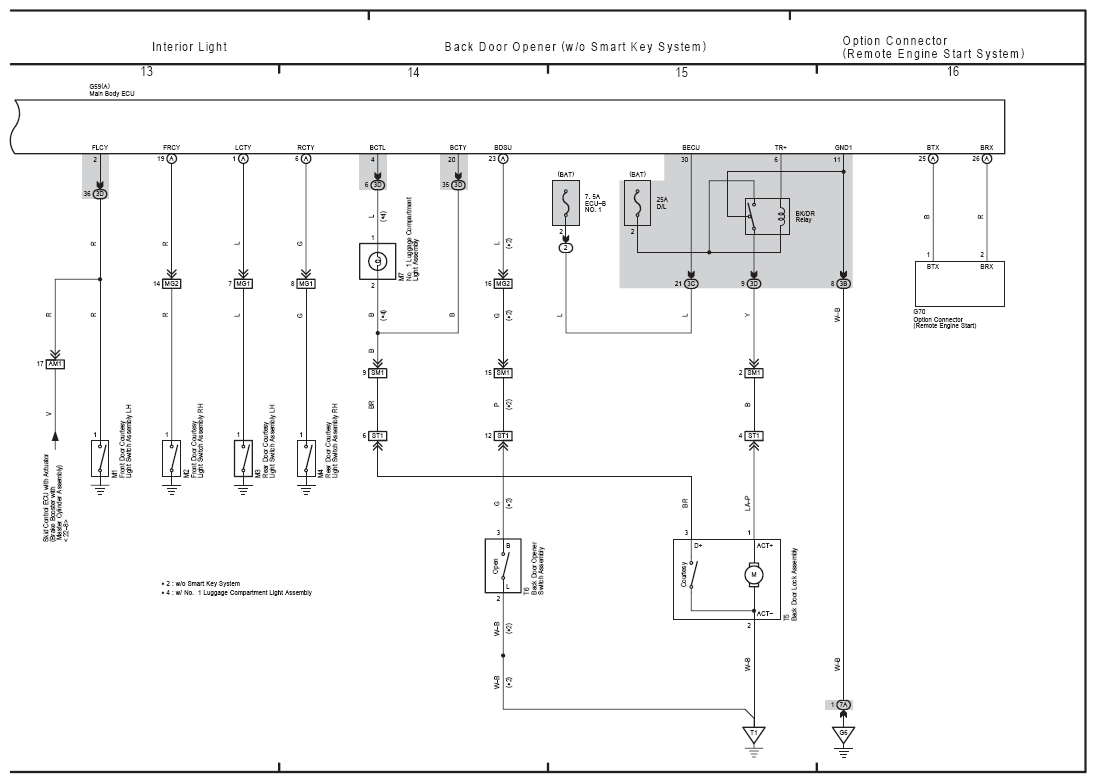

Fig 4: Interior Light, Back Door Opener And Option Connector Electrical Wiring Diagram
