Front Fog Light Wiring Diagrams

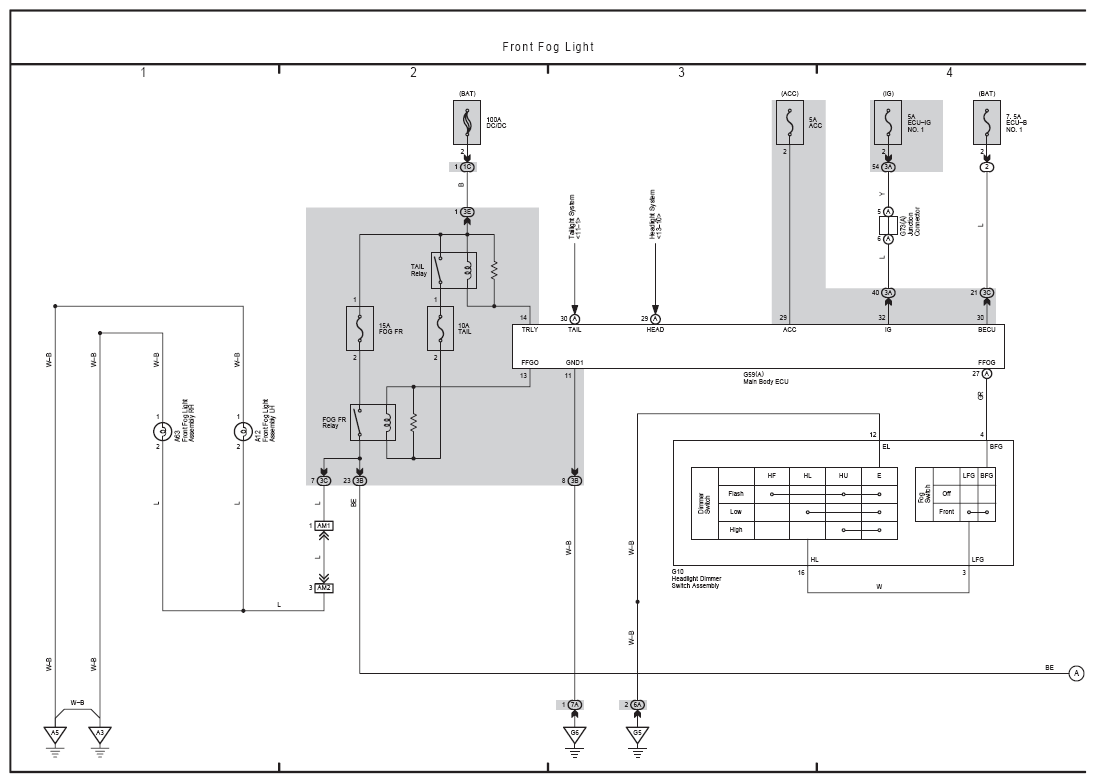

Fig 1: Front Fog Light Electrical Wiring Diagram (1 Of 2)
G09101519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

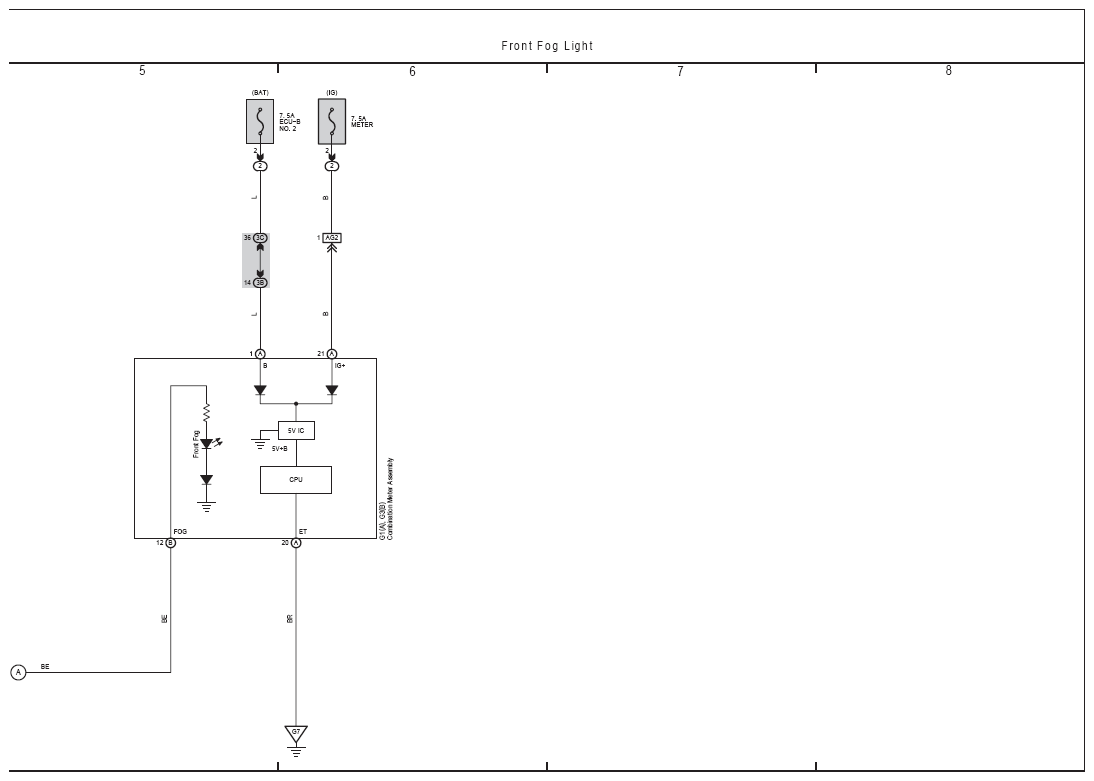

Fig 2: Front Fog Light Electrical Wiring Diagram (2 Of 2)
G09101520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
