Engine Immobiliser System (W/O Smart Key System) Wiring Diagram

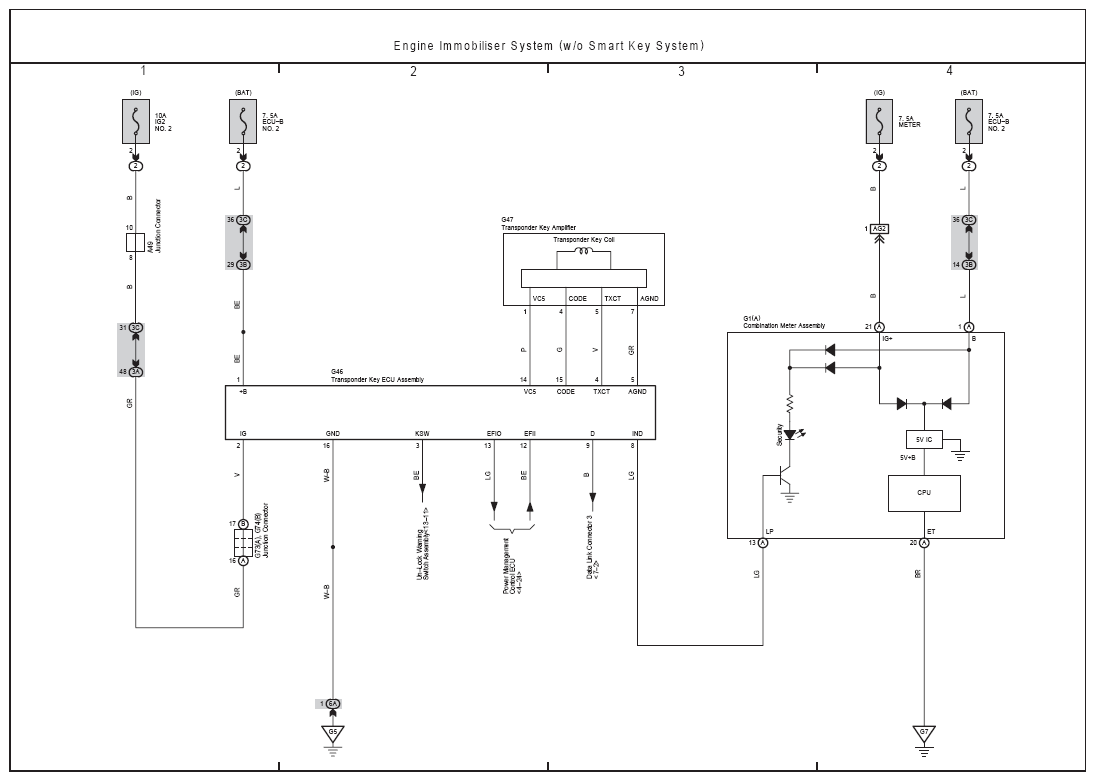

Fig 1: Engine Immobiliser System (W/O Smart Key System) Electrical Wiring Diagram

G09101532

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
