Door Lock Control Wiring Diagrams

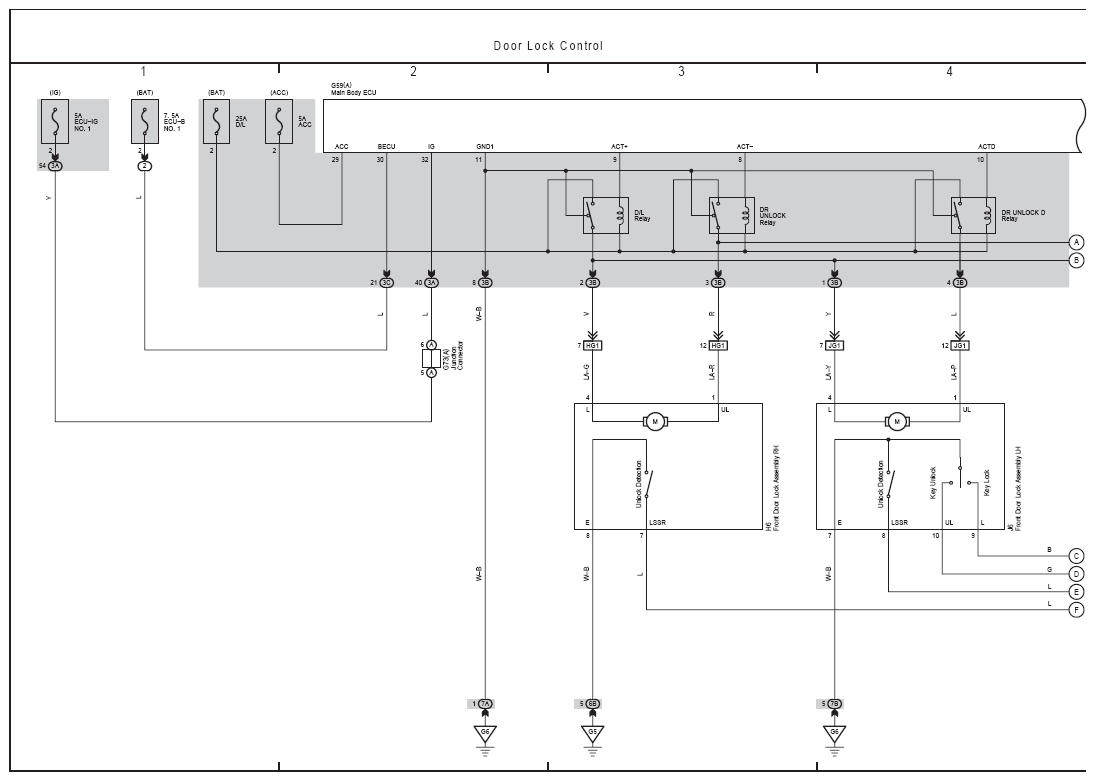

Fig 1: Door Lock Control Electrical Wiring Diagram (1 Of 2)
G09101525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

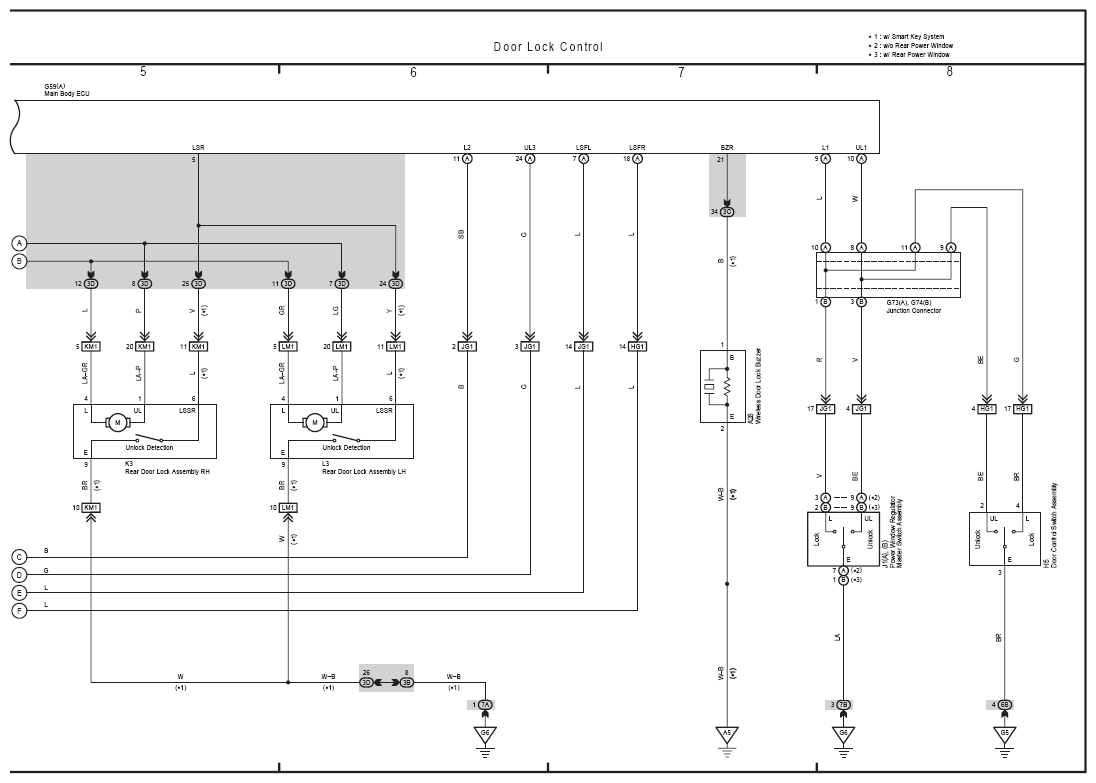

Fig 2: Door Lock Control Electrical Wiring Diagram (2 Of 2)
G09101526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
