Back-Up Light Wiring Diagram

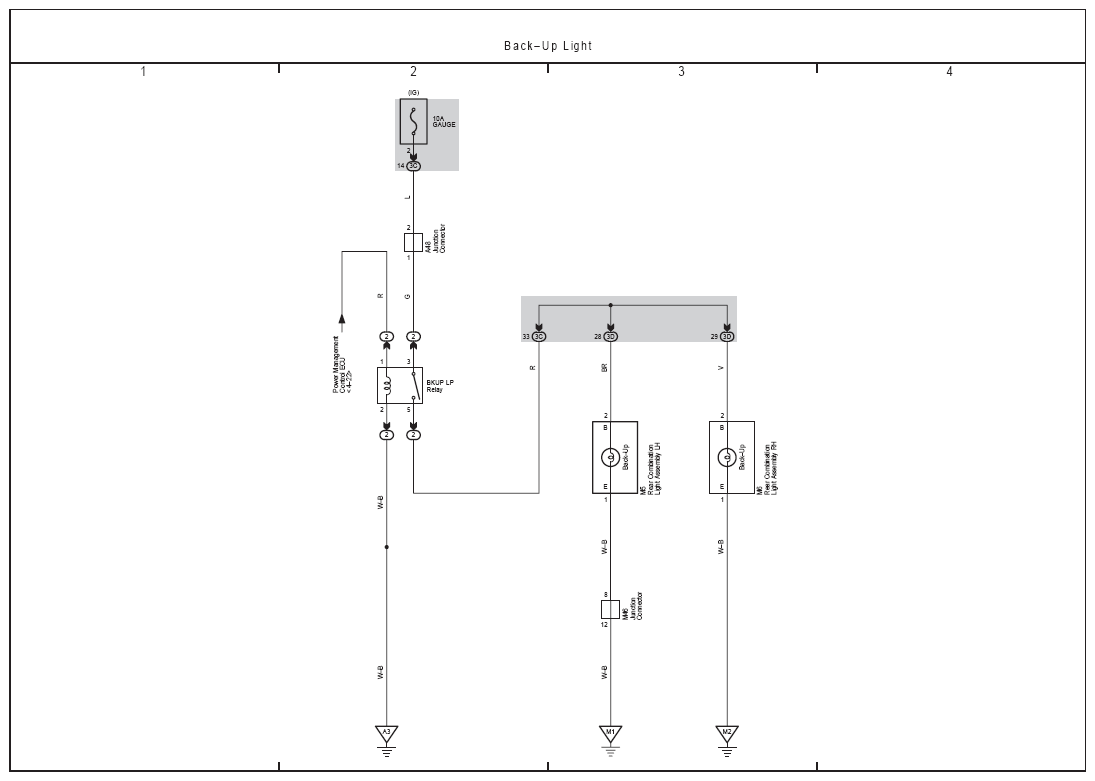

Fig 1: Back-Up Light Electrical Wiring Diagram

G09101513

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
