Back Door Opener, Hybrid Vehicle Immobiliser, Steering And Wireless Door Lock Control Wiring Diagrams

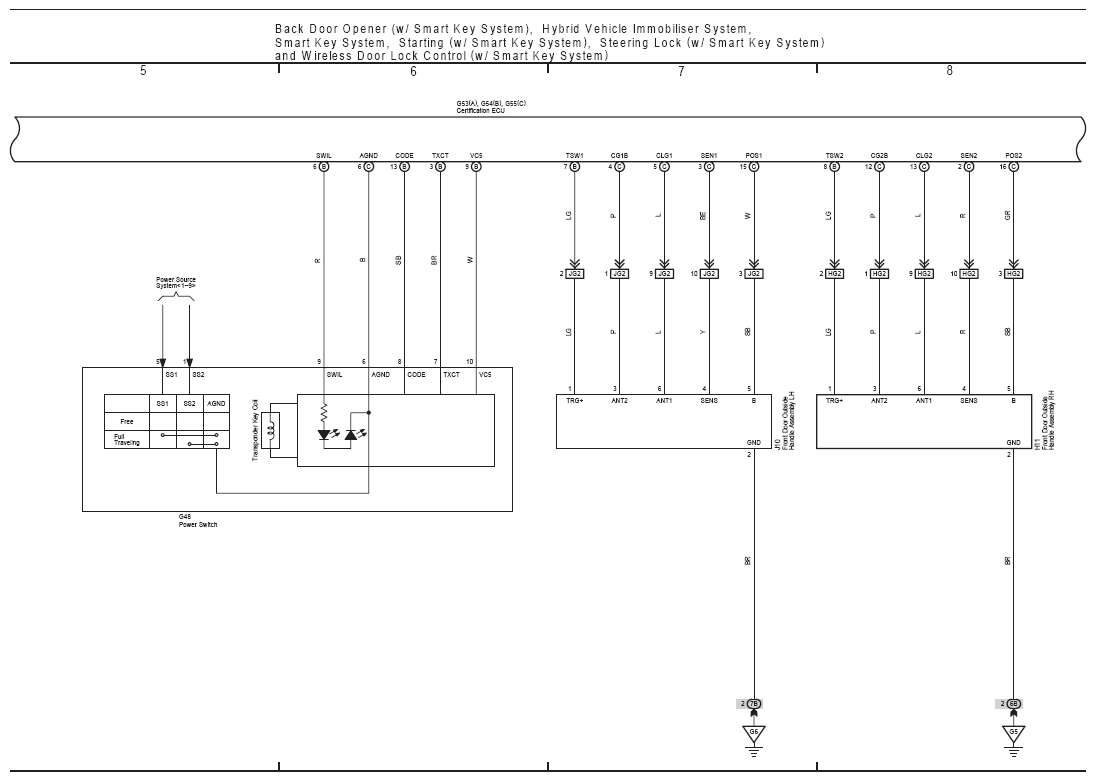

Fig 1: Back Door Opener, Hybrid Vehicle Immobiliser, Steering And Wireless Door Lock Control Electrical Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

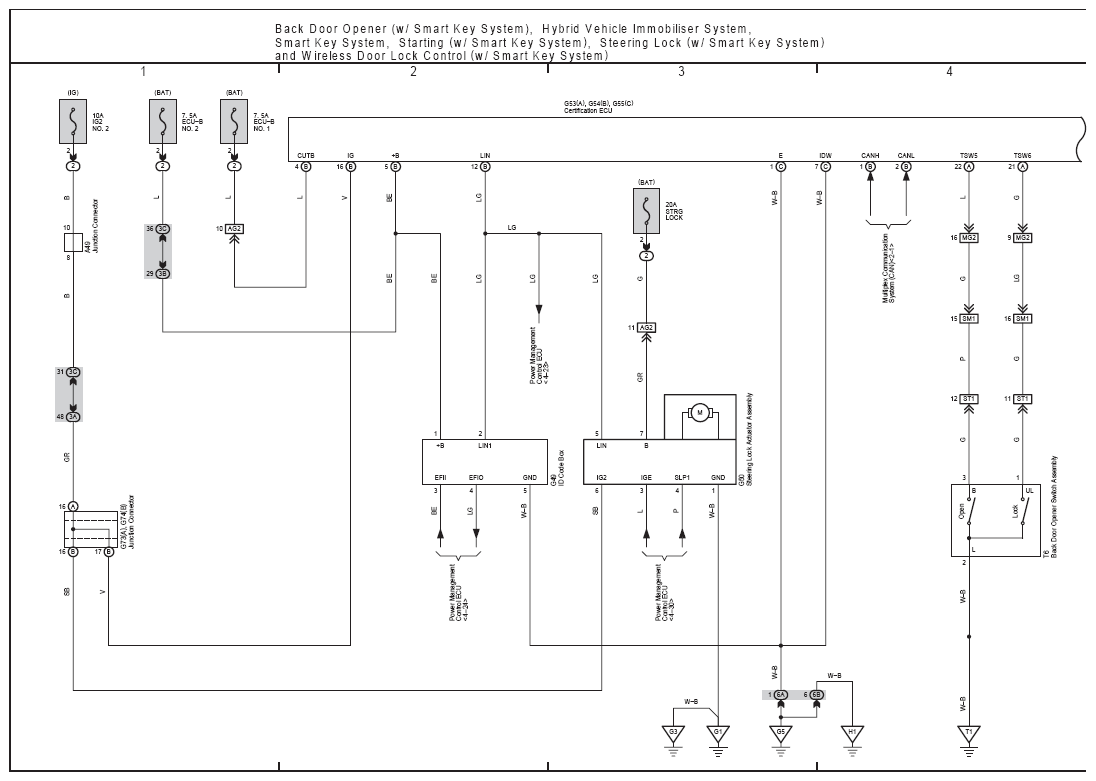

Fig 2: Back Door Opener, Hybrid Vehicle Immobiliser, Steering And Wireless Door Lock Control Electrical Wiring Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

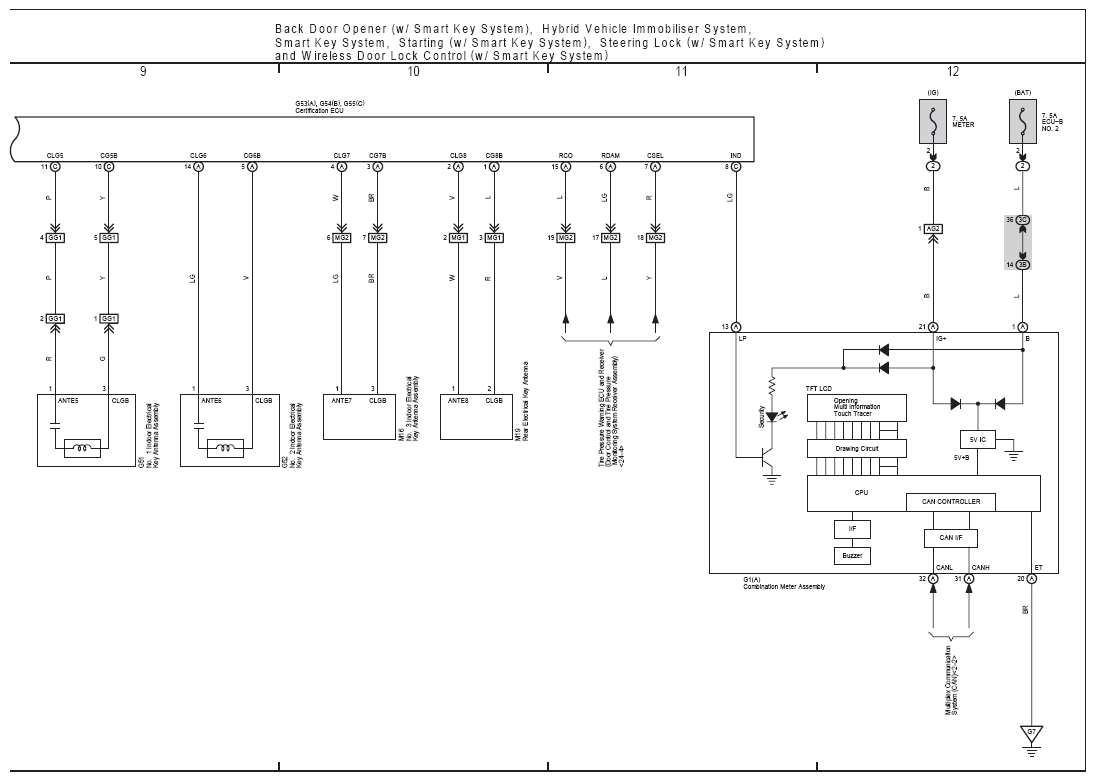

Fig 3: Back Door Opener, Hybrid Vehicle Immobiliser, Steering And Wireless Door Lock Control Electrical Wiring Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
