Audio System And Navigation System Wiring Diagrams

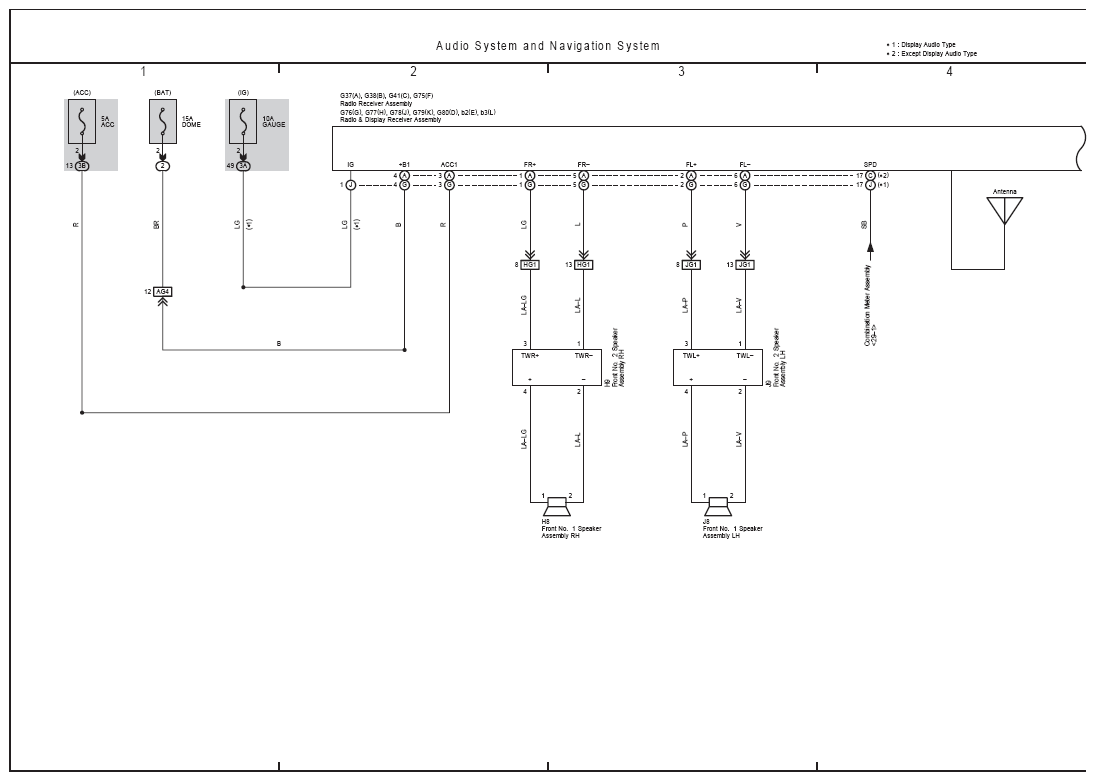

Fig 1: Audio System And Navigation System Electrical Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

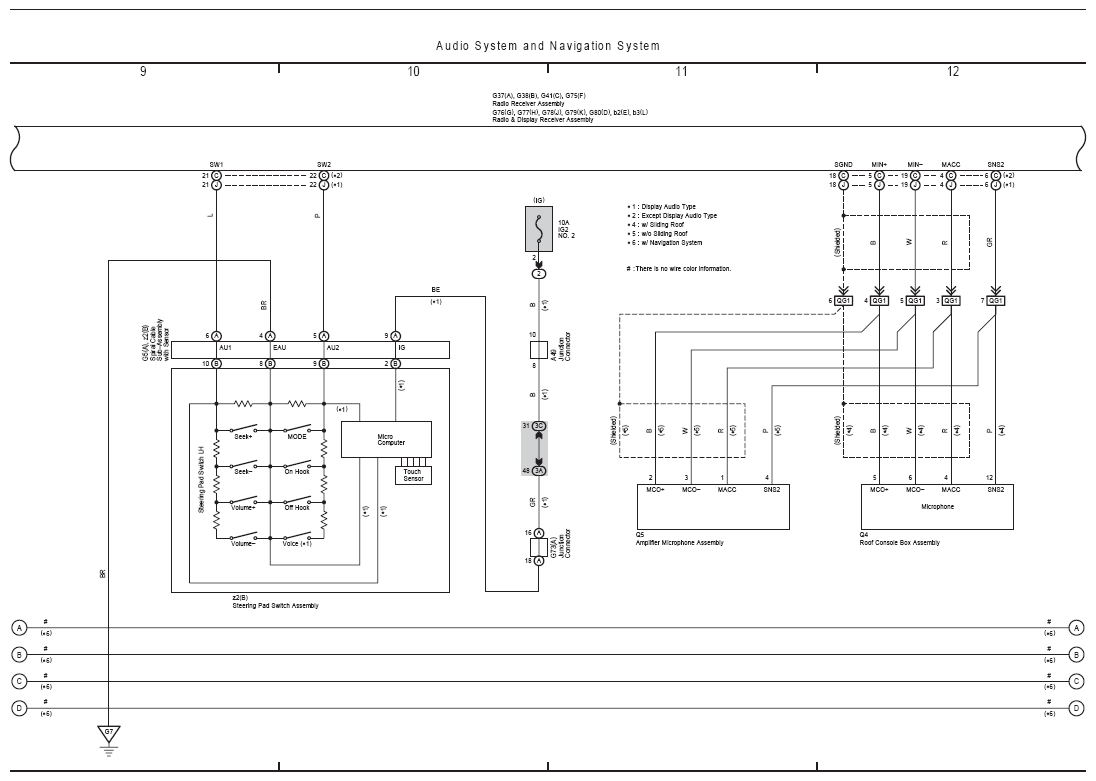

Fig 2: Audio System And Navigation System Electrical Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

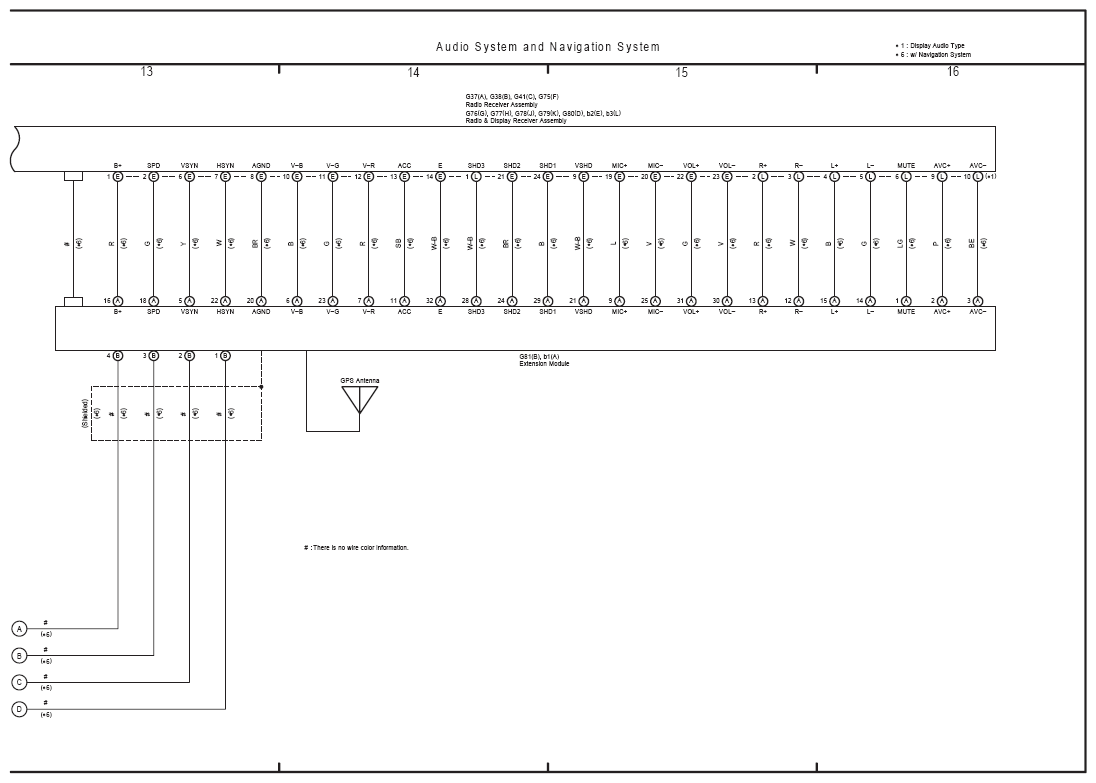

Fig 3: Audio System And Navigation System Electrical Wiring Diagram (3 Of 4)

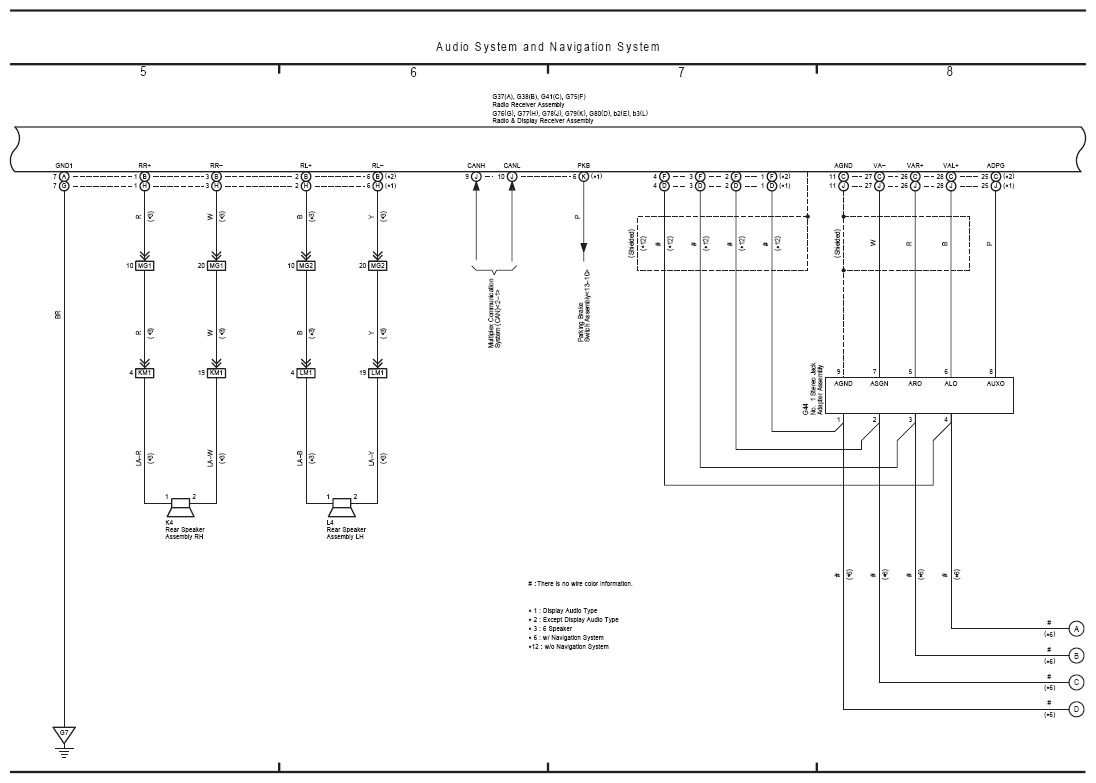

Fig 4: Audio System And Navigation System Electrical Wiring Diagram (4 Of 4)
