Parts Location: Illustration

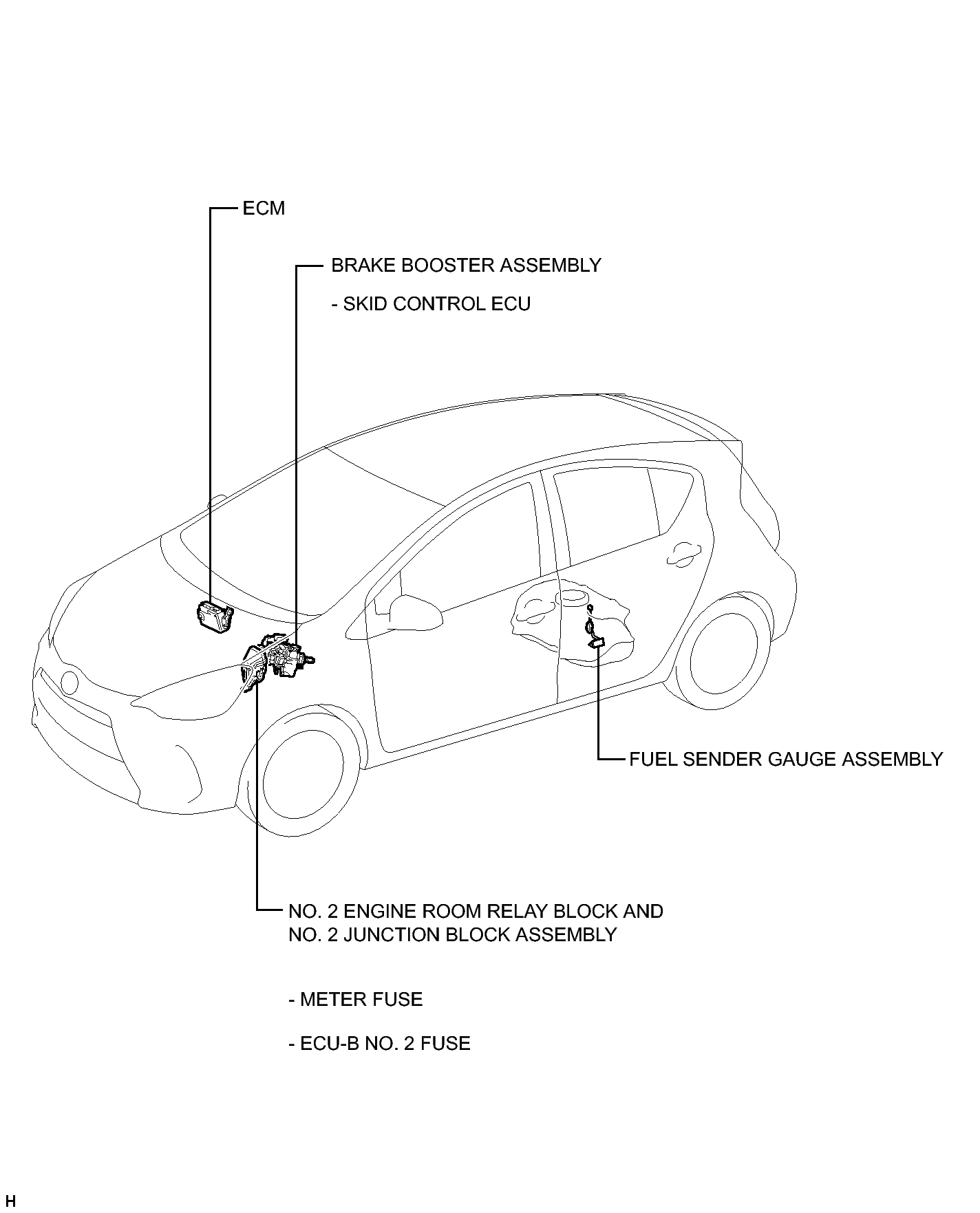

Fig 1: Identifying Meter / Gauge System Components Location (1 Of 5)
GTY333546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

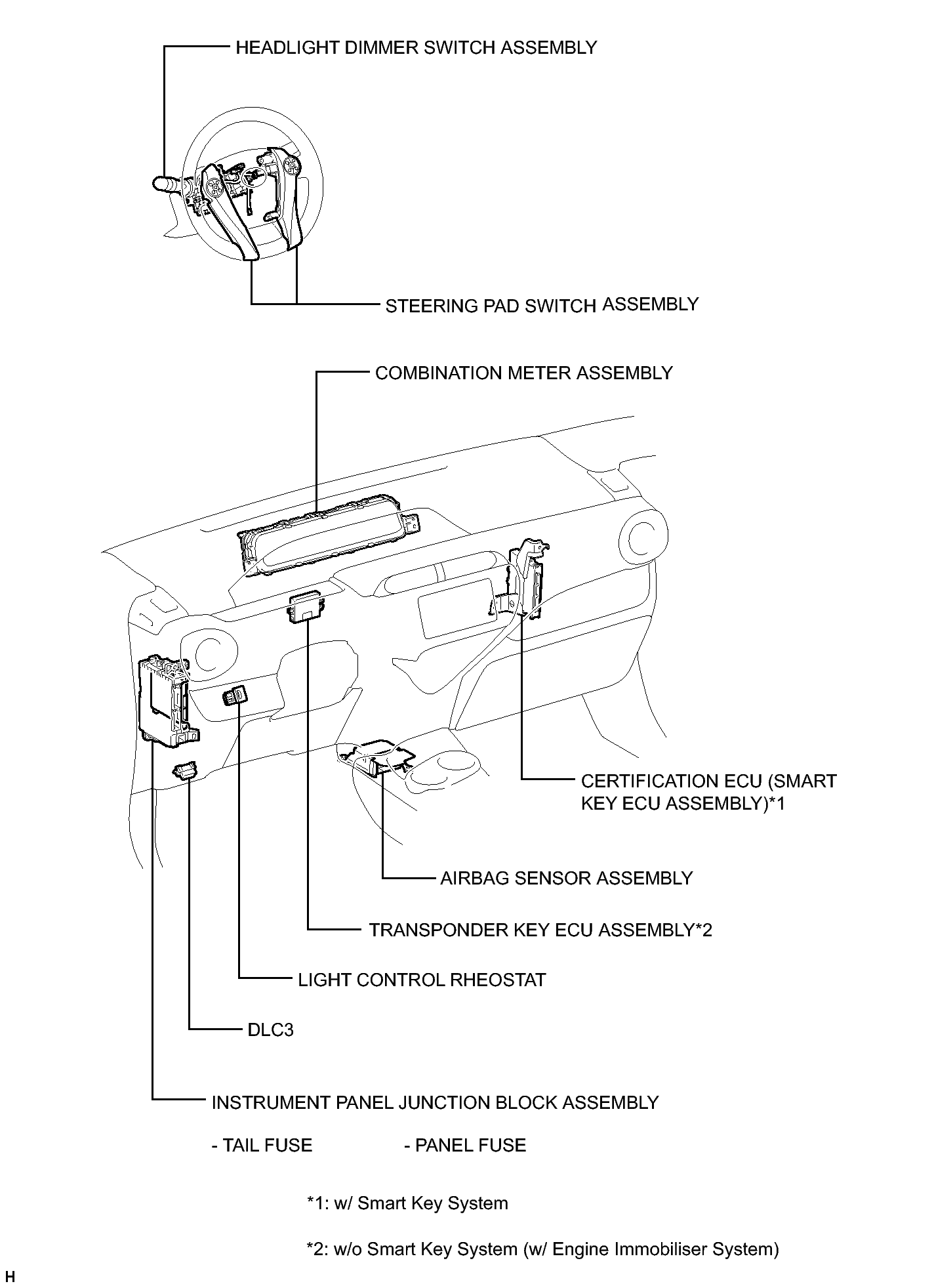

Fig 1: Identifying Meter / Gauge System Components Location (2 Of 5)
GTY337817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

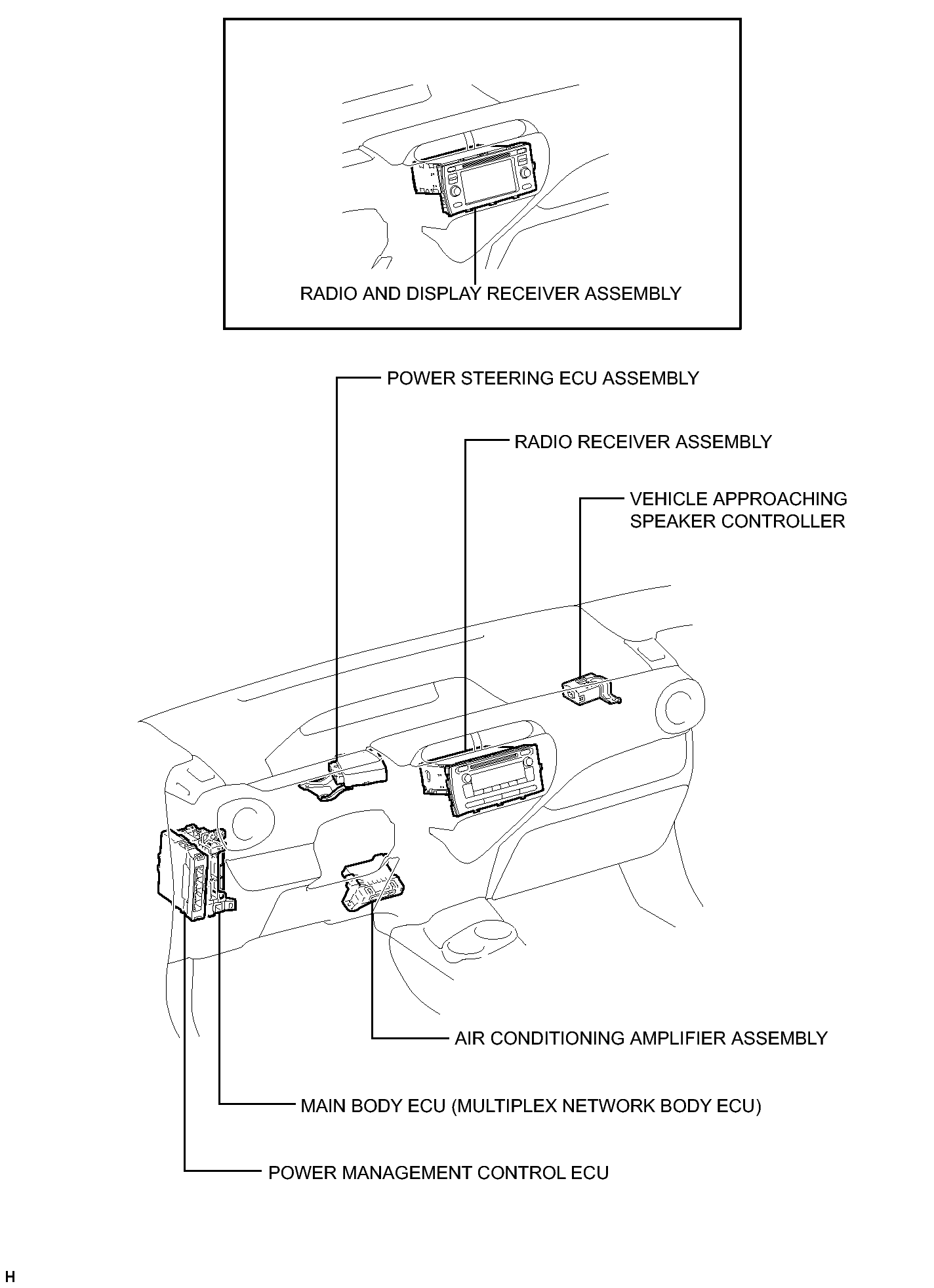

Fig 1: Identifying Meter / Gauge System Components Location (3 Of 5)
GTY324677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

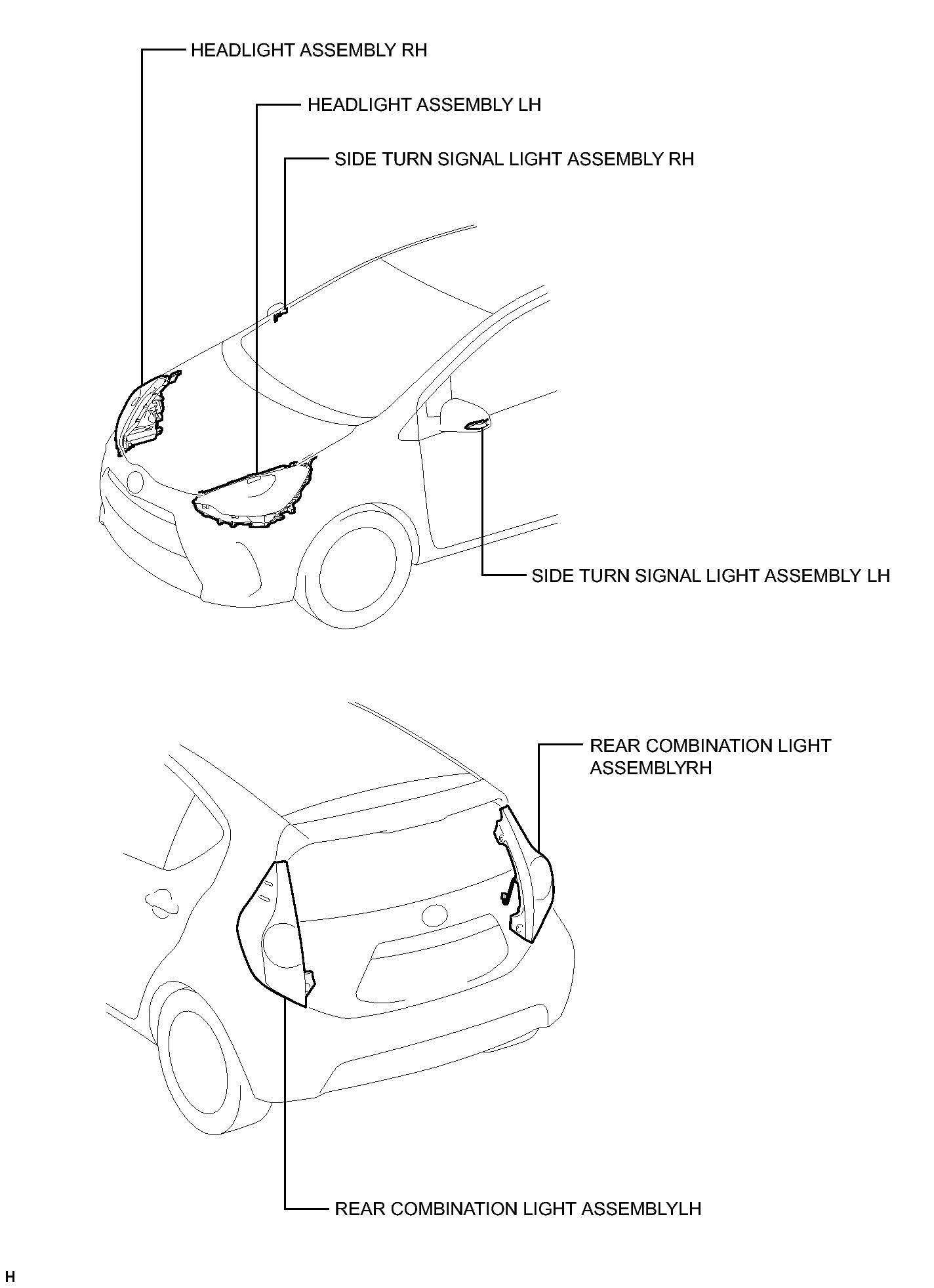

Fig 1: Identifying Meter / Gauge System Components Location (4 Of 5)
GTY328899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter / Gauge System Components Location (5 Of 5)
GTY340803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
