Speed Signal Circuit: Wiring Diagram

  1. for 2AZ-FE

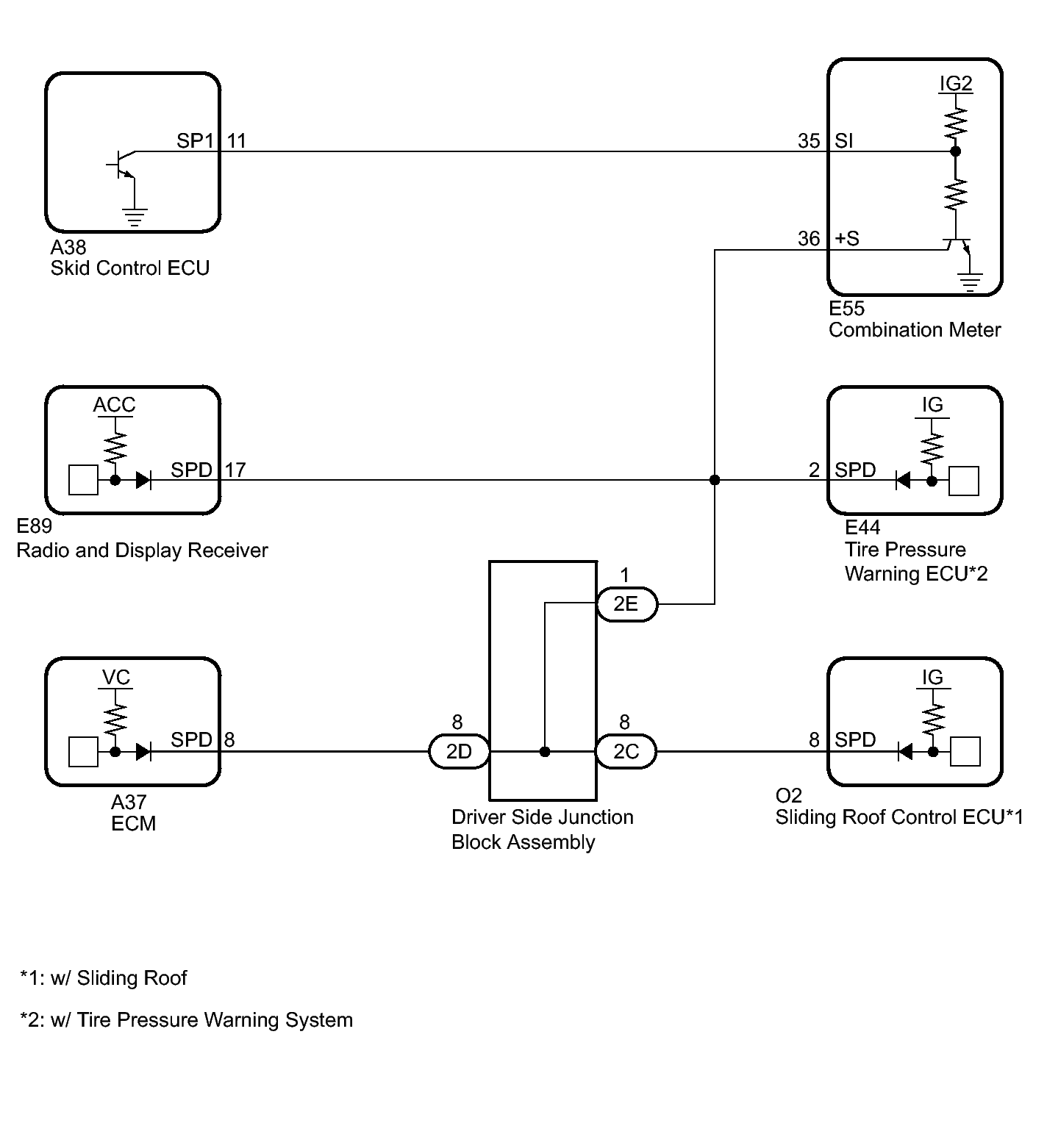

    Fig 1: Vehicle Speed Signal Circuit, Radio Receiver, and Combination Meter Wiring Diagram
    GTY362476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 2ZR-FE

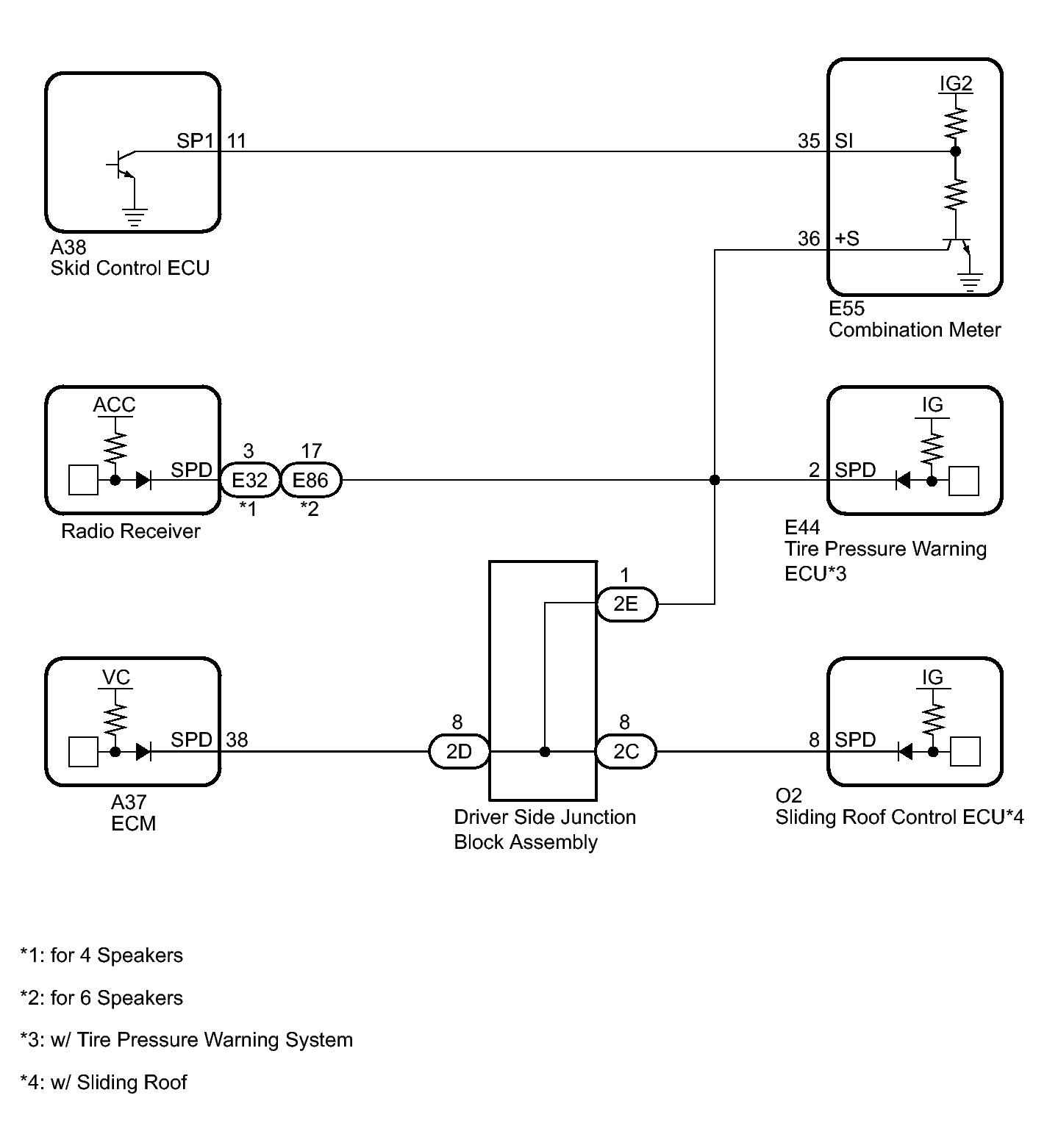

    Fig 2: Vehicle Speed Signal Circuit, Radio Receiver, and Combination Meter Wiring Diagram
    GTY372730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
