Rear Center Seat Outer Belt Assembly: Components: Illustration

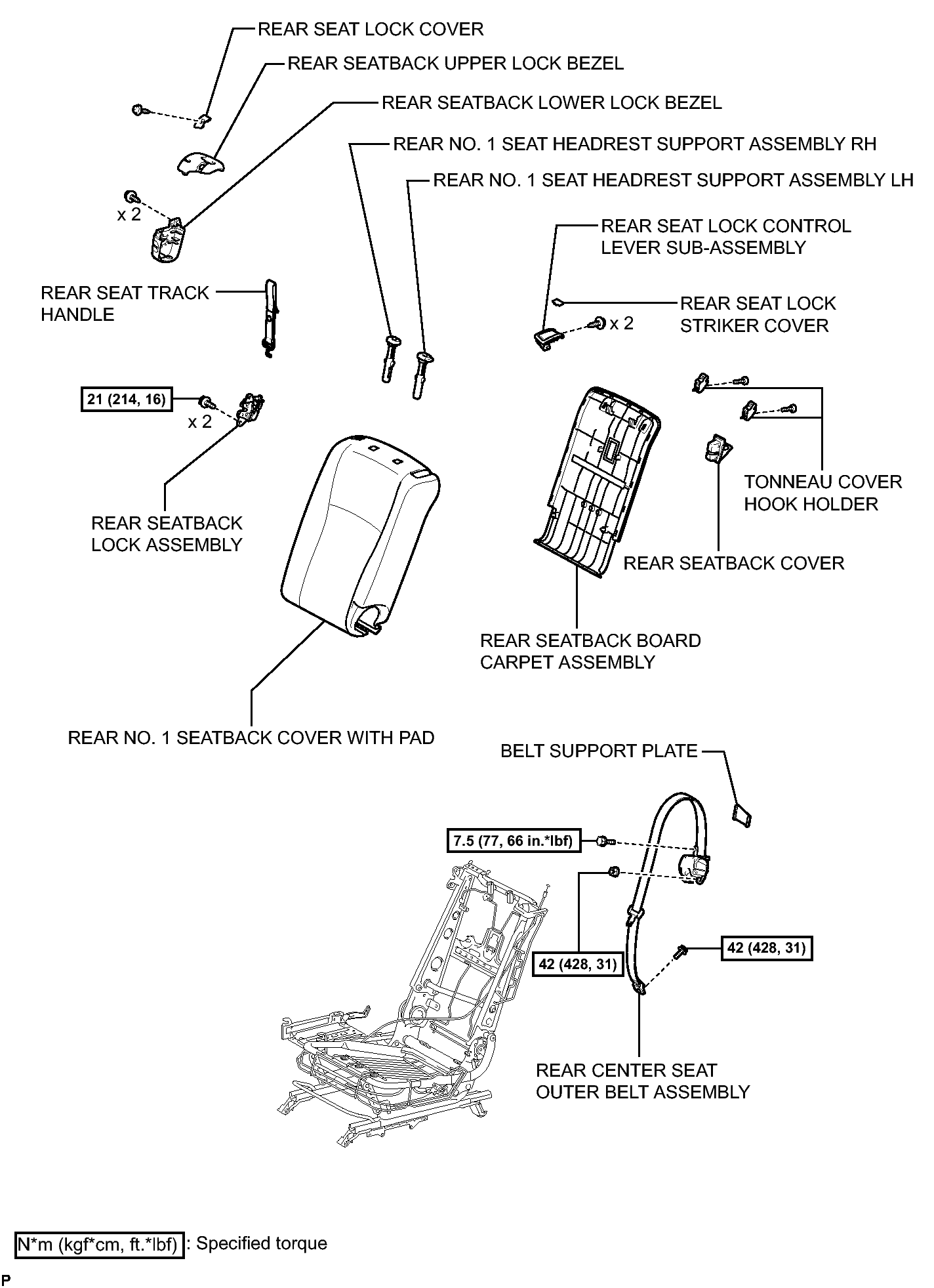

Fig 1: Identifying Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specification (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specification (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Rear Center Seat Outer Belt Assembly Replacement Components With Torque Specification (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
