REAR NO. 1 SEAT INNER BELT ASSEMBLY (for LH Side): Installation: Installation

  1. INSTALL REAR NO. 1 SEAT INNER BELT ASSEMBLY
    1. Install the rear No. 1 seat inner belt assembly with the bolt.

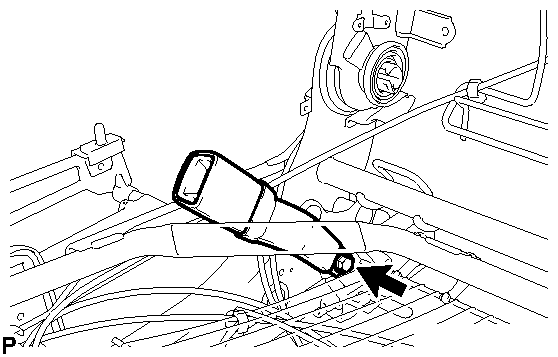

      Fig 1: Identifying Rear No. 1 Seat Inner Belt Assembly Bolt
      GTY198932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  2. INSTALL REAR SEAT RECLINING INNER COVER  . Refer to REASSEMBLY - Step 28
  3. INSTALL SEAT TRACK UPPER RAIL COVER  . Refer to REASSEMBLY - Step 29
  4. INSTALL REAR NO. 1 SEAT CUSHION COVER WITH PAD  . Refer to REASSEMBLY - Step 36
  5. INSTALL REAR SEAT CUSHION MOLDING RH  . Refer to REASSEMBLY - Step 48
  6. INSTALL SEAT ADJUSTER COVER CAP  . Refer to REASSEMBLY - Step 49
  7. INSTALL REAR SEAT CUSHION MOLDING LH  . Refer to REASSEMBLY - Step 50
  8. INSTALL NO. 1 RECLINING ADJUSTER RELEASE HANDLE  . Refer to REASSEMBLY - Step 51
  9. INSTALL REAR SEAT RECLINING UPPER COVER  . Refer to REASSEMBLY - Step 52
  10. INSTALL REAR NO. 1 SEAT ASSEMBLY  . Refer to INSTALLATION - Step 1
  11. CONNECT REAR NO. 1 SEAT LOCK CABLE ASSEMBLY (w/ Remote Folding Function)  . Refer to INSTALLATION - Step 2
  12. INSPECT REAR SEAT SLIDE ADJUSTER LOCK  . Refer to INSTALLATION - Step 3
  13. INSTALL REAR SEAT LEG SIDE COVER  . Refer to INSTALLATION - Step 4
  14. INSTALL REAR INNER TRACK BRACKET COVER  . Refer to INSTALLATION - Step 5
  15. INSTALL REAR OUTER TRACK BRACKET COVER  . Refer to INSTALLATION - Step 6
  16. INSTALL REAR SEAT TRACK BRACKET COVER  . Refer to INSTALLATION - Step 7
  17. INSTALL REAR SEAT HEADREST ASSEMBLY  . Refer to INSTALLATION - Step 8
  18. INSTALL REAR CENTER SEAT ASSEMBLY
