Front Seat Inner Belt Assembly: Components: Illustration

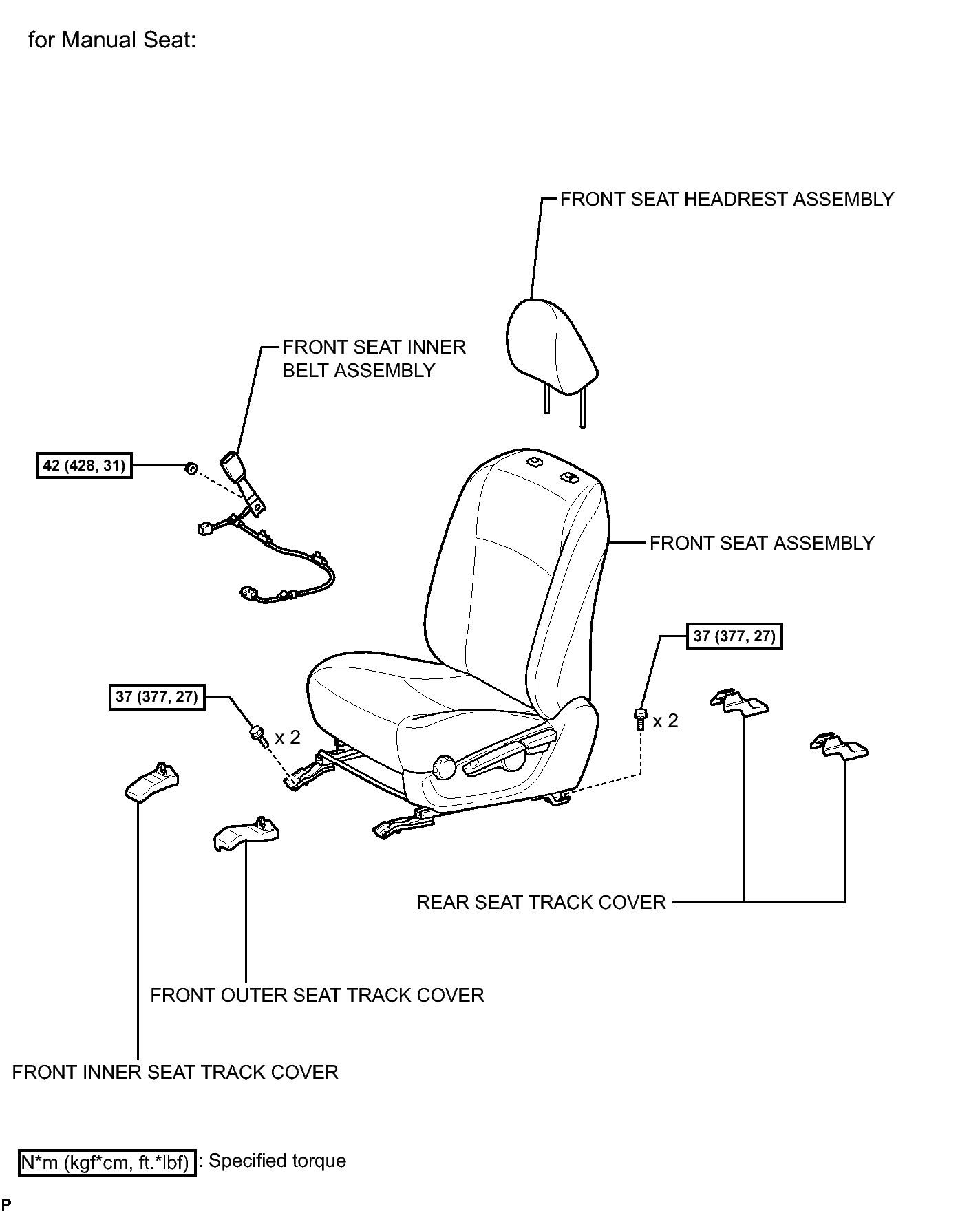

Fig 1: Identifying Front Seat Inner Belt Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY198879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

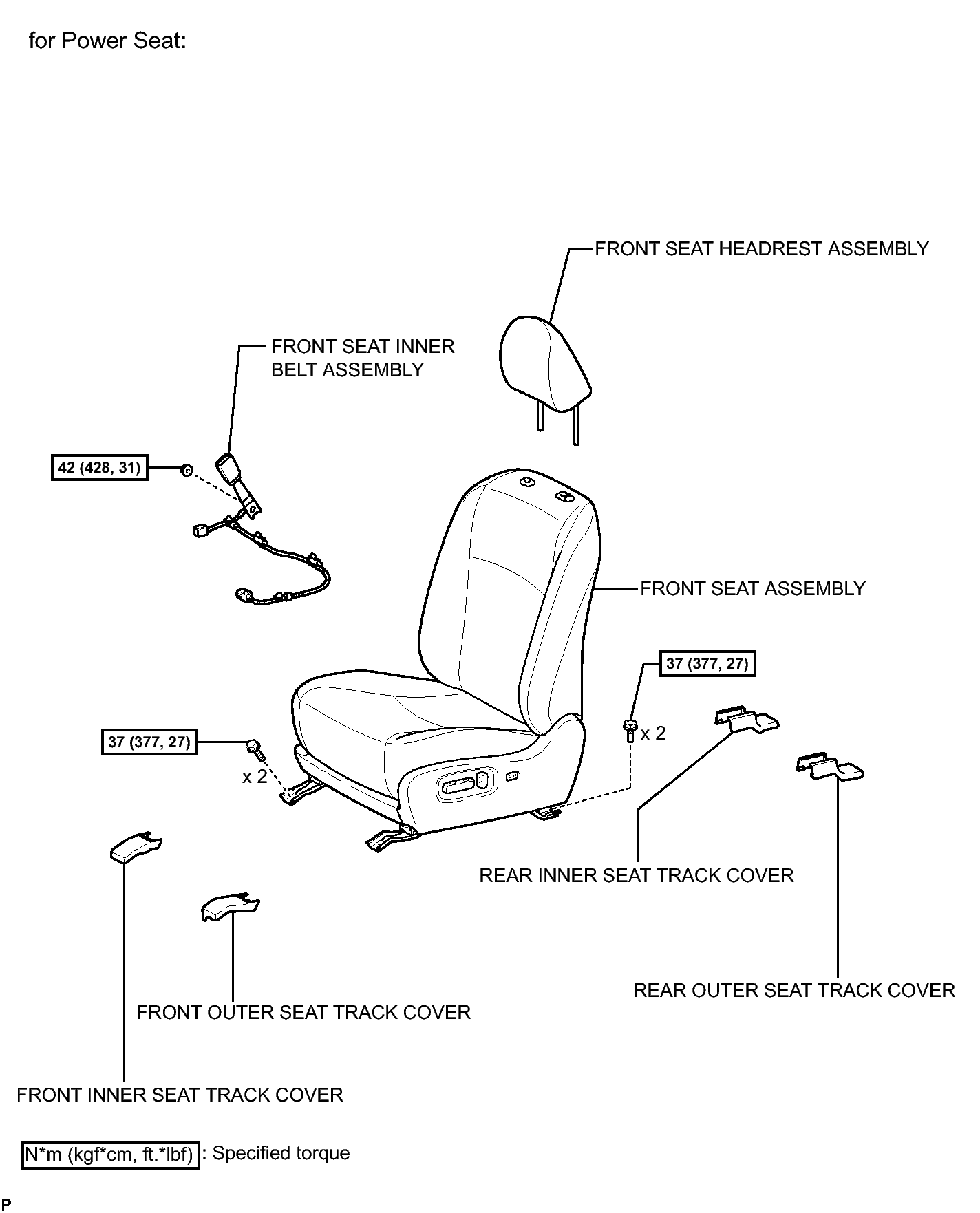

Fig 1: Identifying Front Seat Inner Belt Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY175056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
