Front Passenger Side Seat Belt Warning Light Malfunction: Wiring Diagram

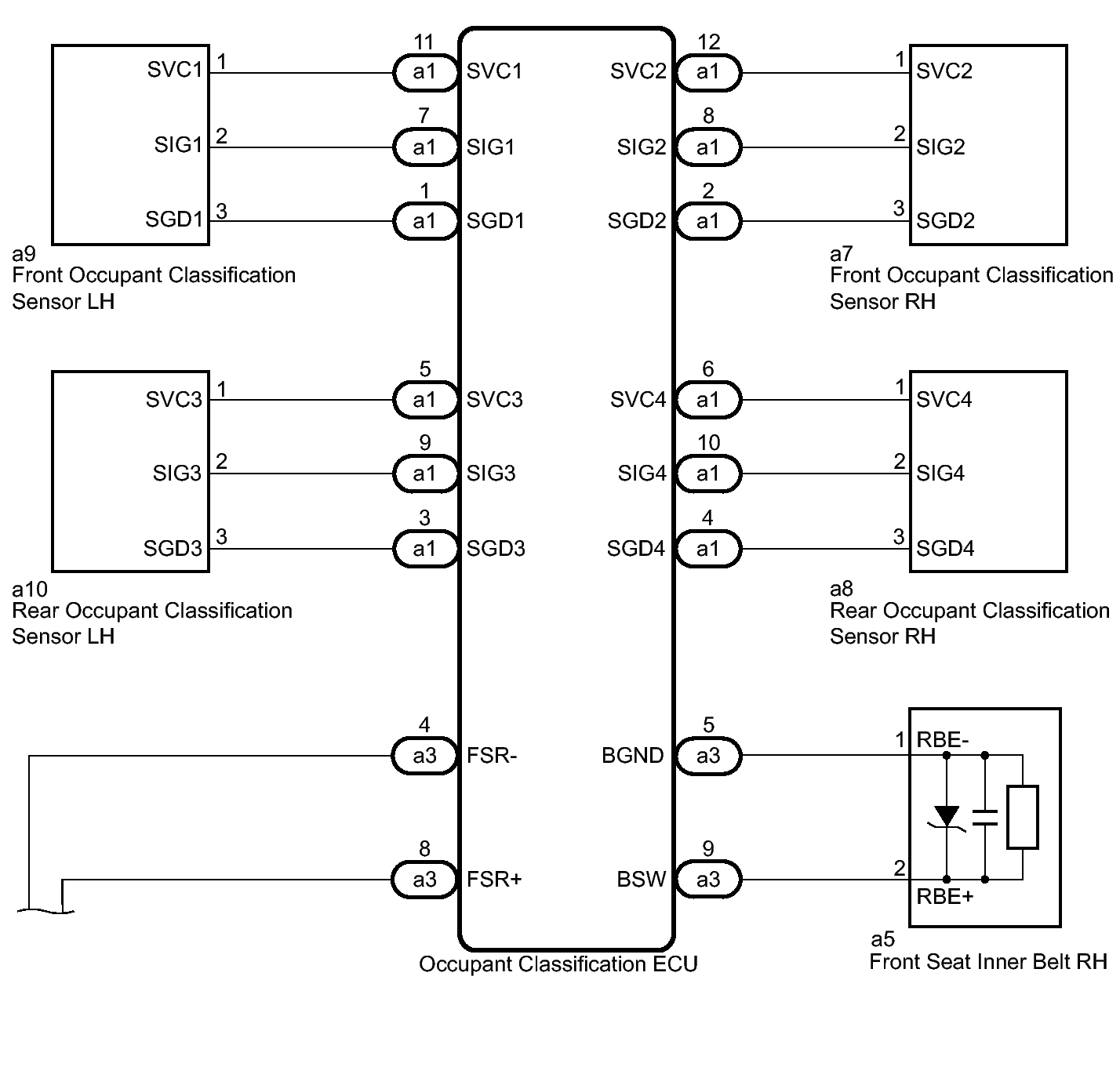

Fig 1: Identifying Front Passenger Side Seat Belt Warning Wiring Diagram (1 Of 2)
GTY361625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

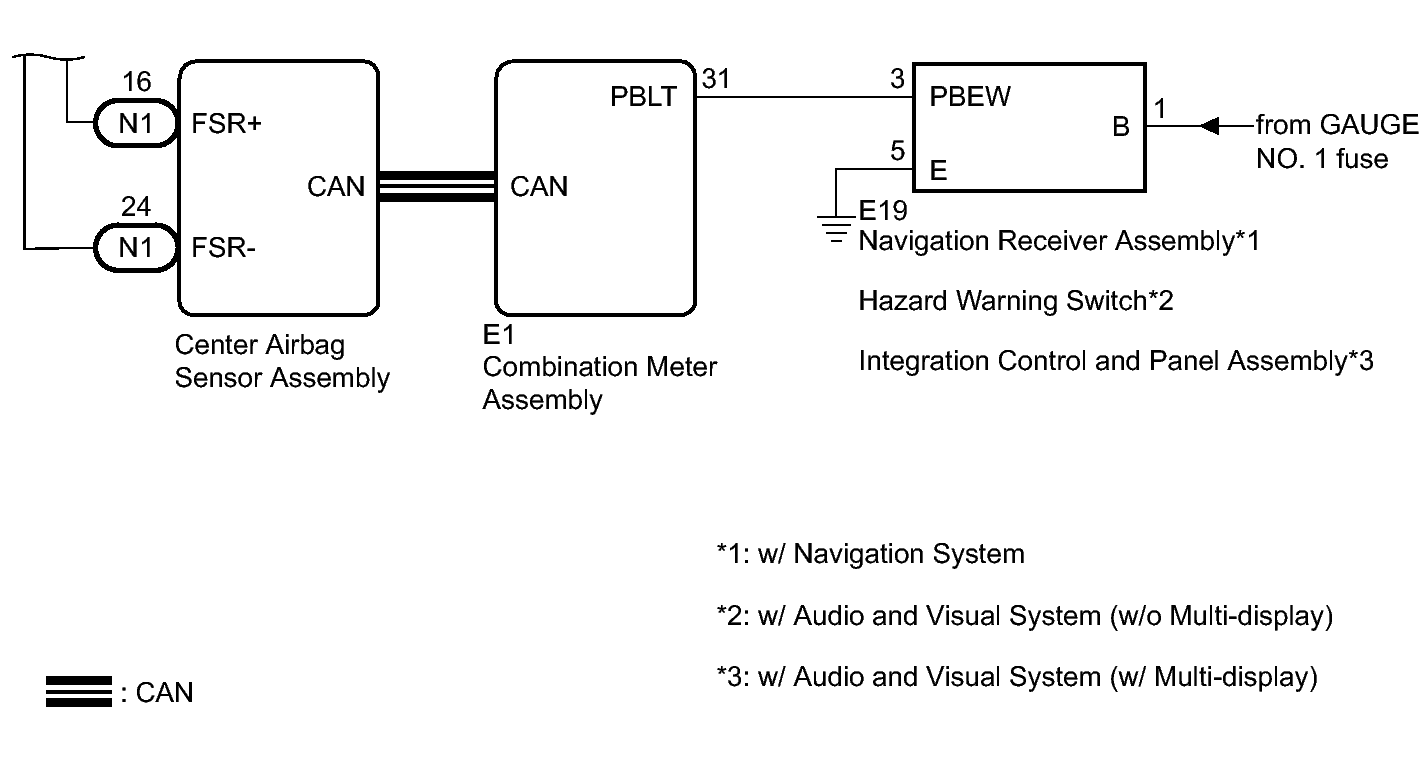

Fig 2: Identifying Front Passenger Side Seat Belt Warning Wiring Diagram (2 Of 2)
GTY383297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
