Parts Location: Illustration

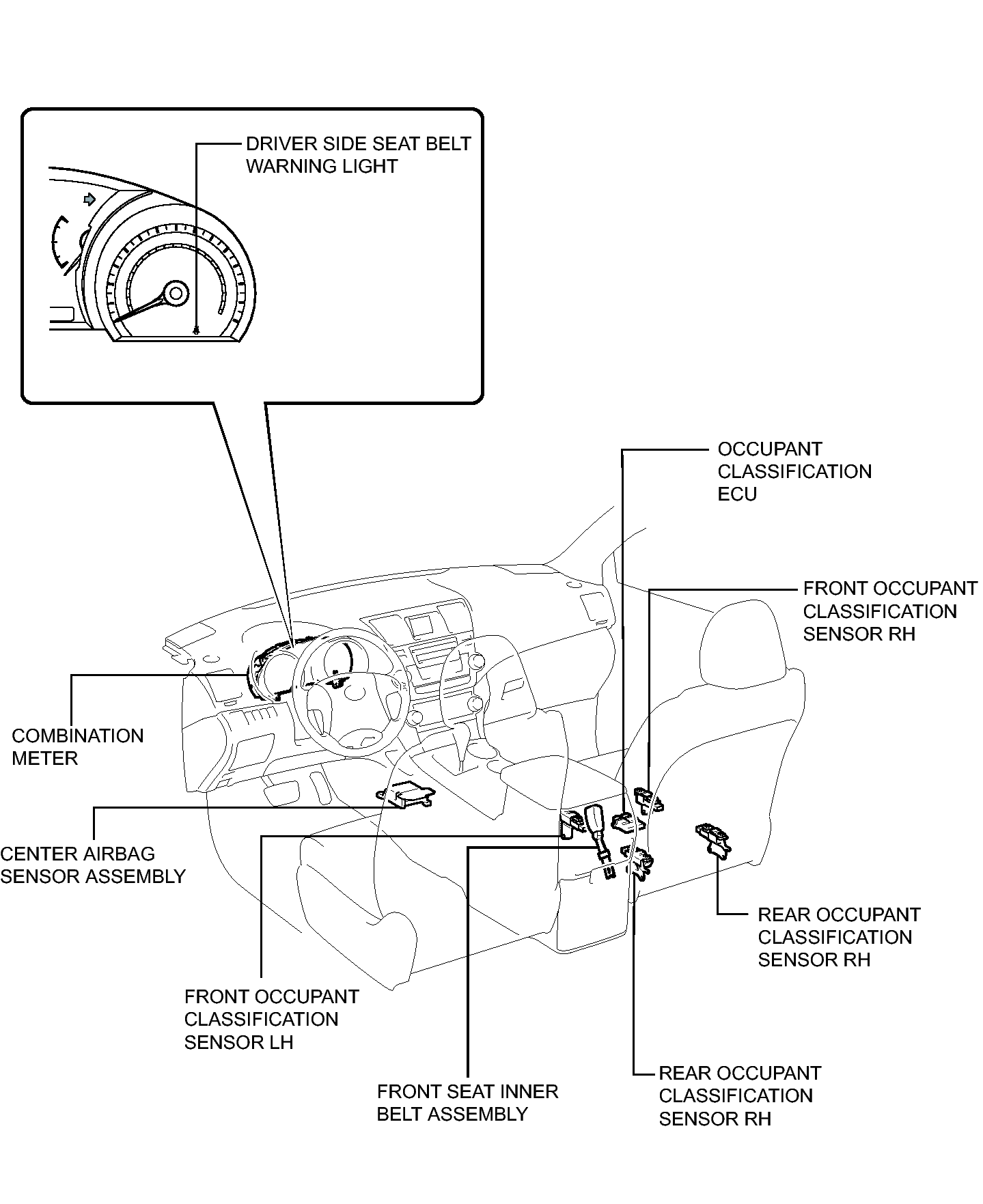

Fig 1: Identifying Seat Belt Warning System Components Location (1 Of 2)
GTY374937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

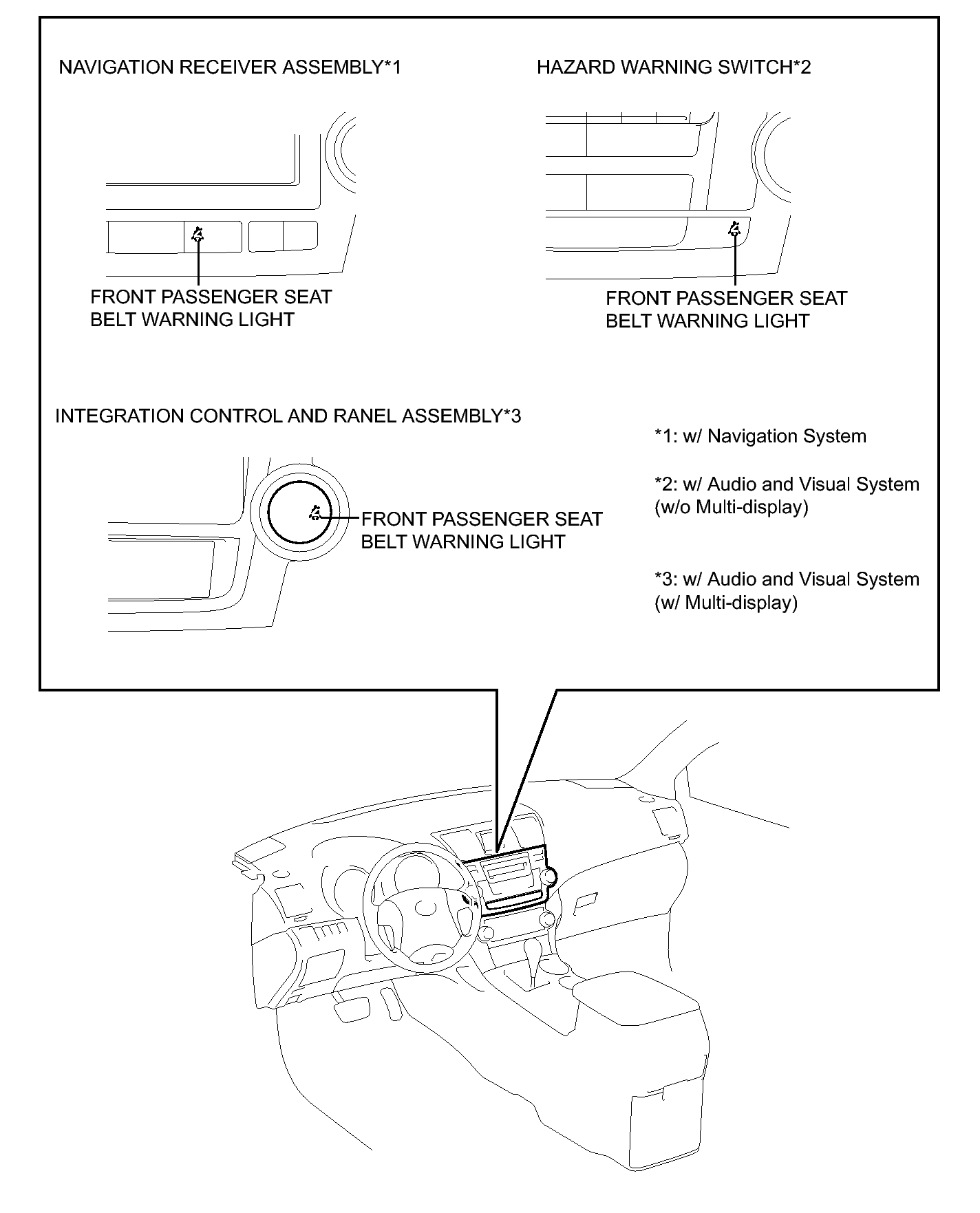

Fig 1: Identifying Seat Belt Warning System Components Location (2 Of 2)
GTY364711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
