DTC B1653/35: Seat Position Airbag Sensor Circuit Malfunction: Procedure

1. Turn the ignition switch off.
2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Check that the connectors are properly connected to the center airbag sensor assembly, front seat inner belt assembly LH and seat position airbag sensor.

   OK

   The connectors are properly connected.

   HINT:

   If the connectors are not connected securely, reconnect the connectors and proceed to the next inspection.

4. Disconnect the connectors from the center airbag sensor assembly, front seat inner belt assembly LH and seat position airbag sensor.
5. Check that the terminals of the connectors are not damaged.

   OK

   The terminals are not deformed or damaged.

NG → REPLACE WIRE HARNESS

OK: Go to next step

1. Connect the connectors to the front seat inner belt assembly LH and No. 2 floor wire.

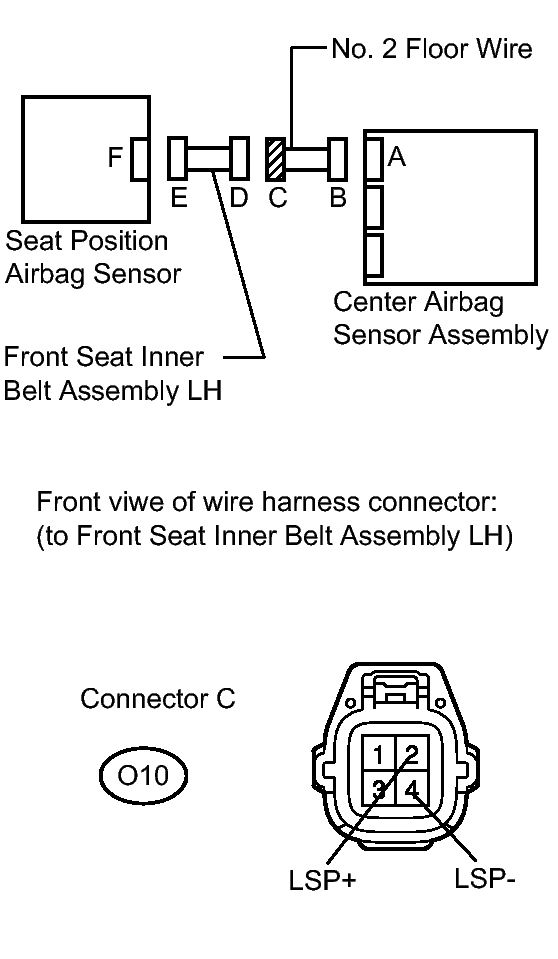

   Fig 1: Identifying Seat Position Airbag Sensor Circuit (Open)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, connect terminals 9 (LSP+) and 17 (LSP-) of connector B.
   NOTE:

   Do not forcibly insert SST into the terminals of the connector when connecting the wire.

   • SST: 09843-18040
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   2 (LSP+) - 1 (LSP-)	Always	Below 1 Ω

NG → See step   9

OK: Go to next step

1. Disconnect SST from connector B.

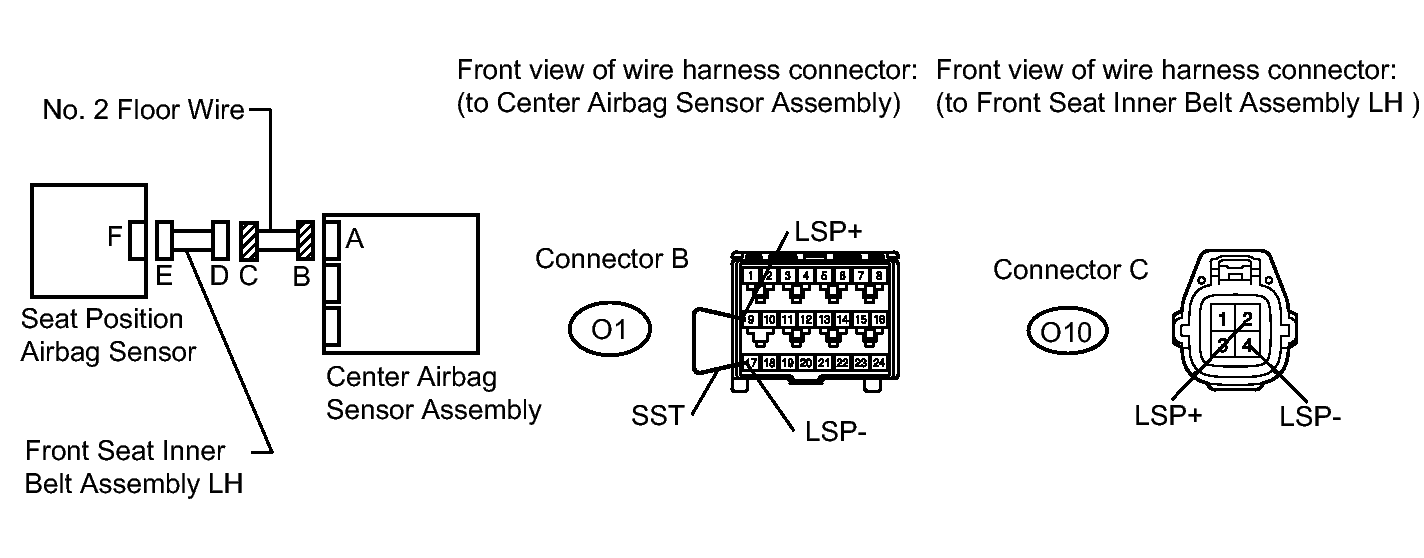

   Fig 2: Identifying Seat Position Airbag Sensor Circuit (Short)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   2 (LSP+) - 1 (LSP-)	Always	1 MΩ or higher

NG → See step   10

OK: Go to next step

1. Connect the cable to the negative (-) battery terminal.
   Fig 3: Identifying Seat Position Airbag Sensor Circuit (Short)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the ignition switch on (IG).
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   2 (LSP+) - Body ground	Ignition switch on (IG)	Below 1 V
   1 (LSP-) - Body ground	Ignition switch on (IG)	Below 1 V

NG → See step   11

OK: Go to next step

1. Turn the ignition switch off.
   Fig 4: Identifying Seat Position Airbag Sensor Circuit (Short)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   2 (LSP+) - Body ground	Always	1 MΩ or higher
   1 (LSP-) - Body ground	Always	1 MΩ or higher

NG → See step   12

OK: Go to next step

1. Connect the connectors to the center airbag sensor assembly and seat position airbag sensor.

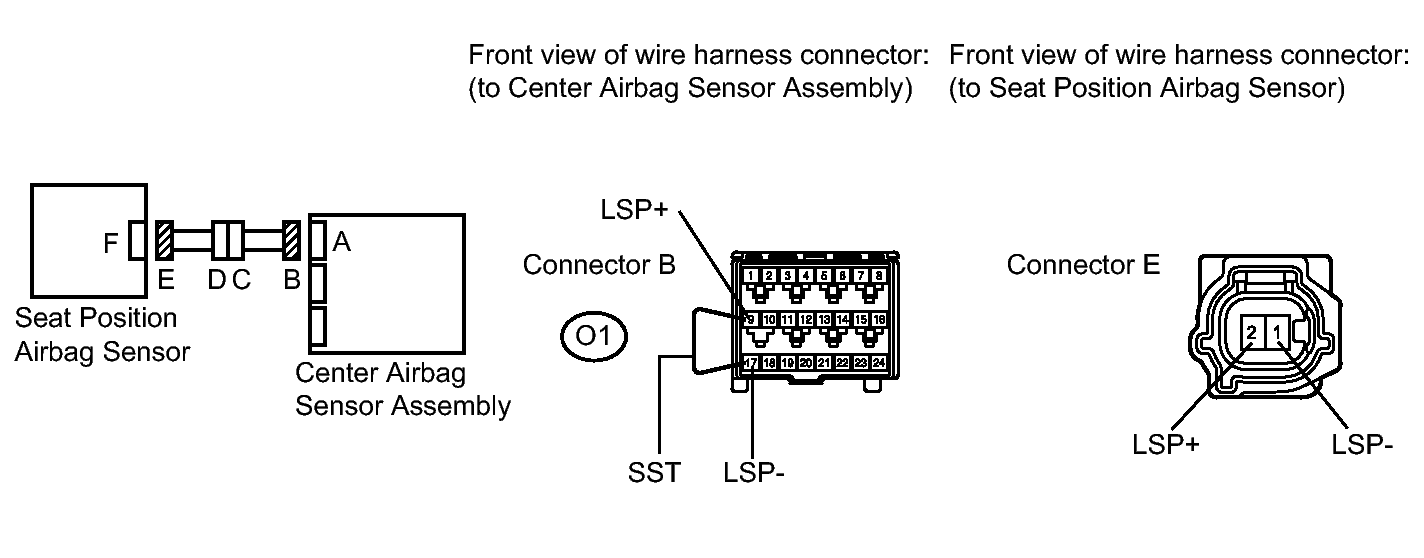

   Fig 5: Identifying Seat Position Airbag Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the cable to the negative (-) battery terminal.
3. Turn the ignition switch on (IG), and wait for at least 60 seconds.
4. Clear the DTCs stored in the memory. Refer to DTC CHECK / CLEAR .
5. Turn the ignition switch off.
6. Turn the ignition switch on (IG), and wait for at least 60 seconds.
7. Check for DTCs. Refer to DTC CHECK / CLEAR .

   OK

   DTC B1653/35 is not output.

   HINT:

   Codes other than DTC B1653/35 may be output at this time, but they are not related to this check.

NG → See step   7

OK → See step   13

1. Turn the ignition switch off.
2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Replace the seat position airbag sensor with a known good one. Refer to REMOVAL .

   HINT:

   Perform inspection using parts from a normal vehicle if possible.

NEXT: Go to next step

1. Connect the cable to the negative (-) battery terminal.
   Fig 6: Identifying Seat Position Airbag Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the ignition switch on (IG), and wait for at least 60 seconds.
3. Clear the DTCs stored in the memory. Refer to DTC CHECK / CLEAR .
4. Turn the ignition switch off.
5. Turn the ignition switch on (IG), and wait for at least 60 seconds.
6. Check for DTCs. Refer to DTC CHECK / CLEAR .

   OK

   DTC B1653/35 is not output.

   HINT:

   Codes other than DTC B1653/35 may be output at this time, but they are not related to this check.

NG → See step   14

OK → END

1. Disconnect the No. 2 floor wire from front seat inner belt assembly LH.
   Fig 7: Identifying No. 2 Floor Wire (Open)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   SST has already been inserted into connector B.

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   O10-2 (LSP+) - O10-4 (LSP-)	Always	Below 1 Ω

NG → REPLACE NO. 2 FLOOR WIRE

OK → See step   15

1. Disconnect the No. 2 floor wire from front seat belt inner belt assembly LH.
   Fig 8: Identifying No. 2 Floor Wire (Short)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   O10-2 (LSP+) - O10-4 (LSP-)	Always	1 MΩ or higher

NG → REPLACE NO. 2 FLOOR WIRE

OK → See step   15

1. Turn the ignition switch off.
   Fig 9: Identifying No. 2 Floor Wire (Short)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
3. Disconnect the No. 2 floor wire from front seat inner belt assembly LH.
4. Connect the cable to the negative (-) battery terminal.
5. Turn the ignition switch on (IG).
6. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   O10-2 (LSP+) - Body ground	Ignition switch on (IG)	Below 1 V
   O10-4 (LSP-) - Body ground	Ignition switch on (IG)	Below 1 V

NG → REPLACE NO. 2 FLOOR WIRE

OK → See step   15

1. Disconnect the No. 2 floor wire from front seat inner belt assembly LH.
   Fig 10: Identifying No. 2 Floor Wire (Short)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   O10-2 (LSP+) - Body ground	Always	1 MΩ or higher
   O10-4 (LSP-) - Body ground	Always	1 MΩ or higher

NG → REPLACE NO. 2 FLOOR WIRE

OK → See step   15
