DTC B1650/32: Occupant Classification System Malfunction: Wiring Diagram

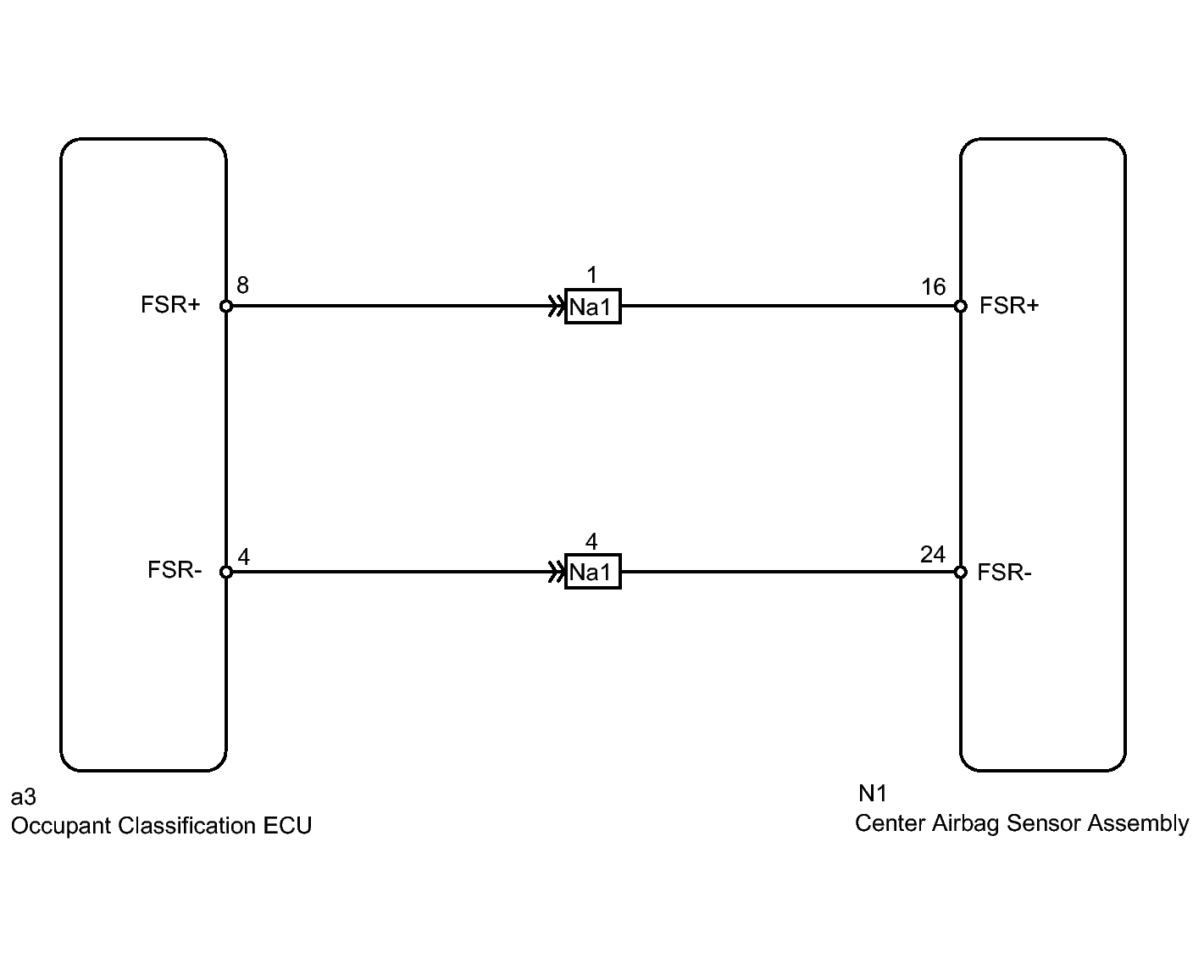

Fig 1: Occupant Classification ECU Circuit Wiring Diagram

GTY304049

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
