Valve Body Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

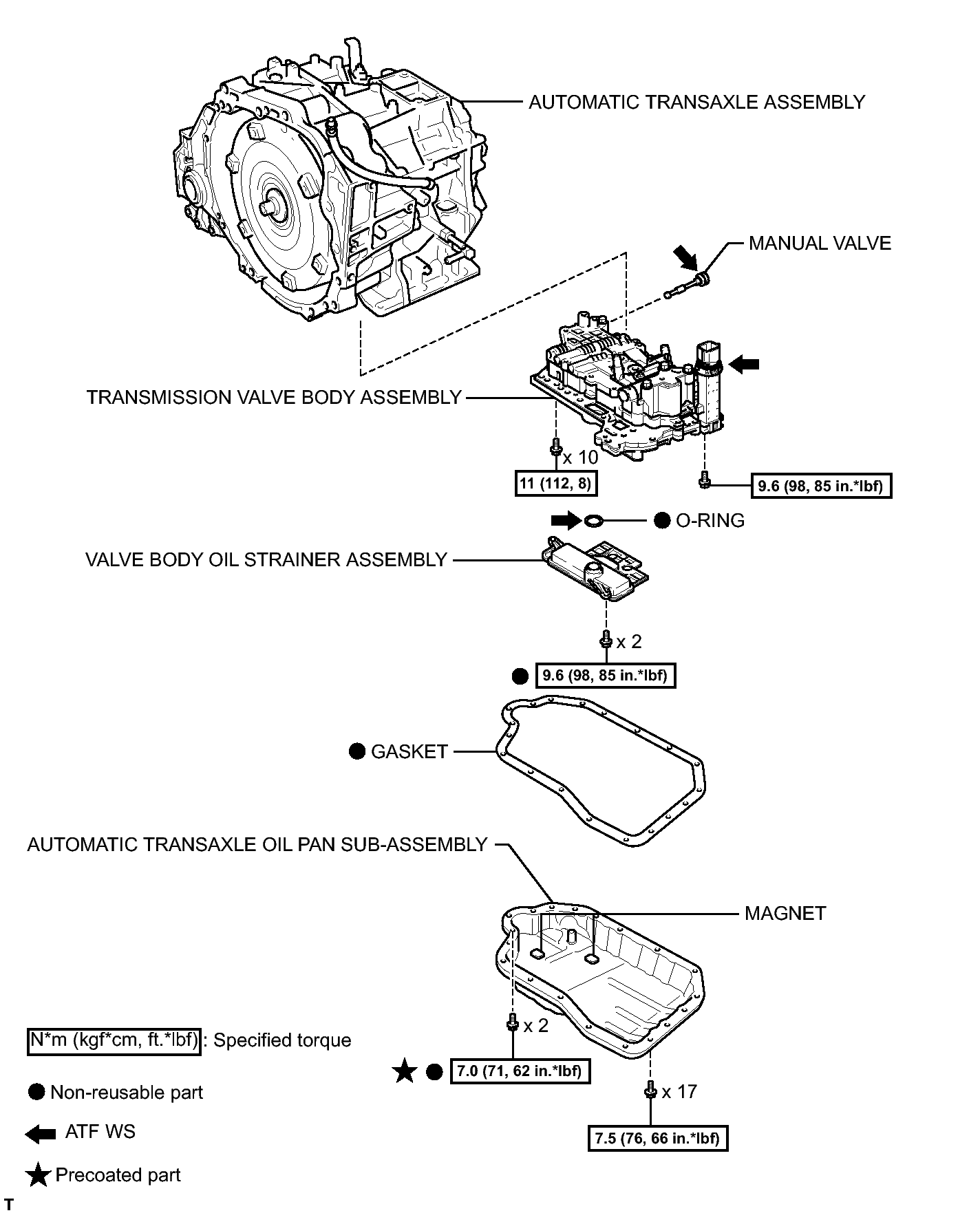

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications
GTY171873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
