Section 9 (Automatic Transmission (U760E) (Service Information) (Except Hybrid)): TCM: Components: Illustration

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying TCM Replacement Components With Torque Specifications (1 Of 2)
GTY302262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

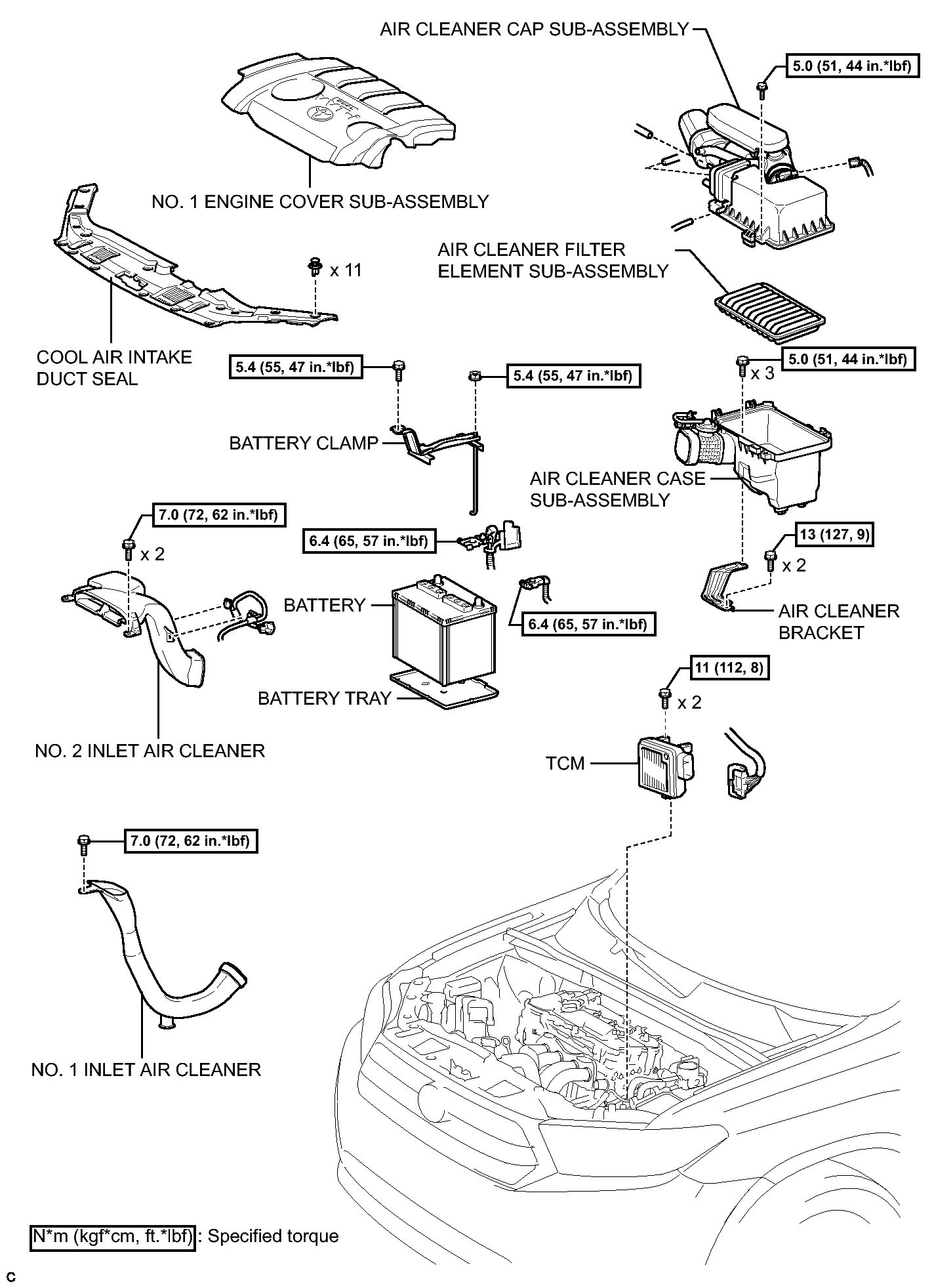

Fig 1: Identifying TCM Replacement Components With Torque Specifications (2 Of 2)
GTY303848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
